615 Series Specifications
The 615 series with the new raised sheerline is replacing the 600 series.
| Item | Value |
|---|---|
| Kit Prices Excl. GST | |
| Hardtop | $21,610 |
| Cuddy | $19,920 |
| Centre Console | $18,570 |
| Length Hull | 6.15 m |
| Length Overall | 6.40 m |
| Beam | 2.50 m |
| Cockpit Depth Min. | 0.68 m |
| Max Power | 1 x 225 hp |
| Max Weight | 275 kg |
| Recommended Power | 175-200 hp |
| Twin OB Option | 2 x 90-115 hp |
| Max Weight (Twin) | 2 x 175 kg |
| Effective Deadrise at CG | 20 deg |
| Fuel Tank | 260 litres |
| Person Capacity | 6 |
| Deck Drainage | Self-draining |
| Plate Thickness | |
| Bottom | 6 mm |
| Sides | 4 mm |
| Decks | 3 mm |
| Cabin | 3 & 4 mm |
The 615 series is the start of Sherwood Marine’s range featuring self-draining decks and full 2.5m beam. Three models share the same basic 6.15m plate aluminium boat kit hull: the centre console 615CC at $18,570 excluding GST, the 615CD cuddy cab at $19,920 and the 615HT hardtop at $21,610. The 615HT is the smallest hardtop in the range, giving the step-up in weather protection, visibility through fixed glass, mounting for electronics and smart looks, and long-term durability over a cuddy + canopy setup.
The 615 series replaces the 600 series. It carries a new raised sheerline forward, which gives a distinctive look and just a little more freeboard. Everything else from the proven 600 Series carries on unchanged.
The hull is 6.15 m long, 6.40 m overall, on a 2.50 m beam. Bottom plate steps up to 6 mm, with 4 mm sides, 3 mm decks and 3 and 4 mm cabin. Deadrise at the centre of gravity is 20 degrees, fuel capacity is 260 litres, and the deck is self-draining rather than sumped. Rated capacity is six people. Maximum power is a single 225 hp with 175 to 200 hp recommended, or twin outboards of 90 to 115 hp each.
Against the 560 it is a step up in fuel capacity, beam, and has the self-drainage and hardtop availability. Against the 655 it is 400 mm shorter with 40 litres less fuel.

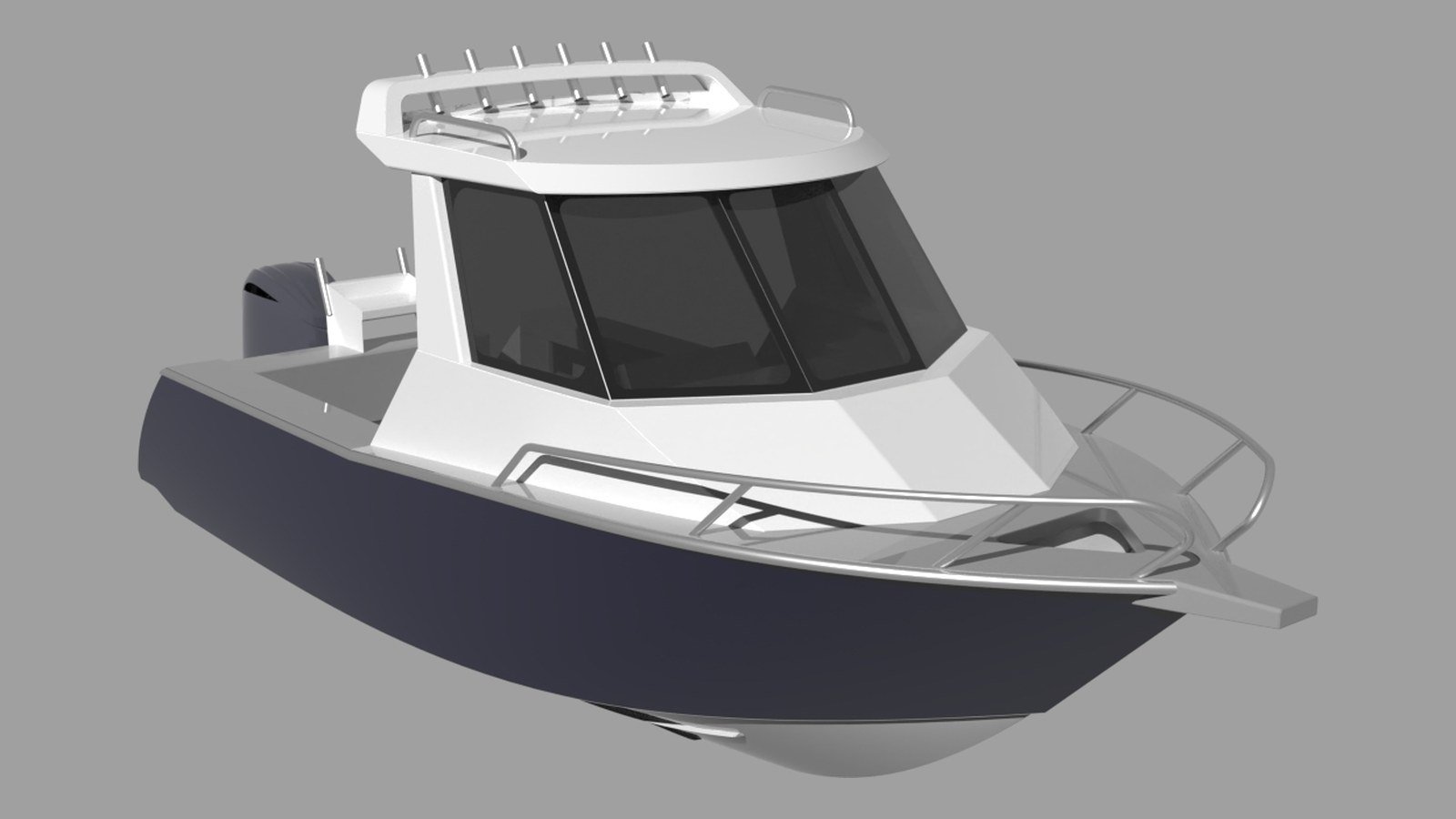

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — bow quarter 3D

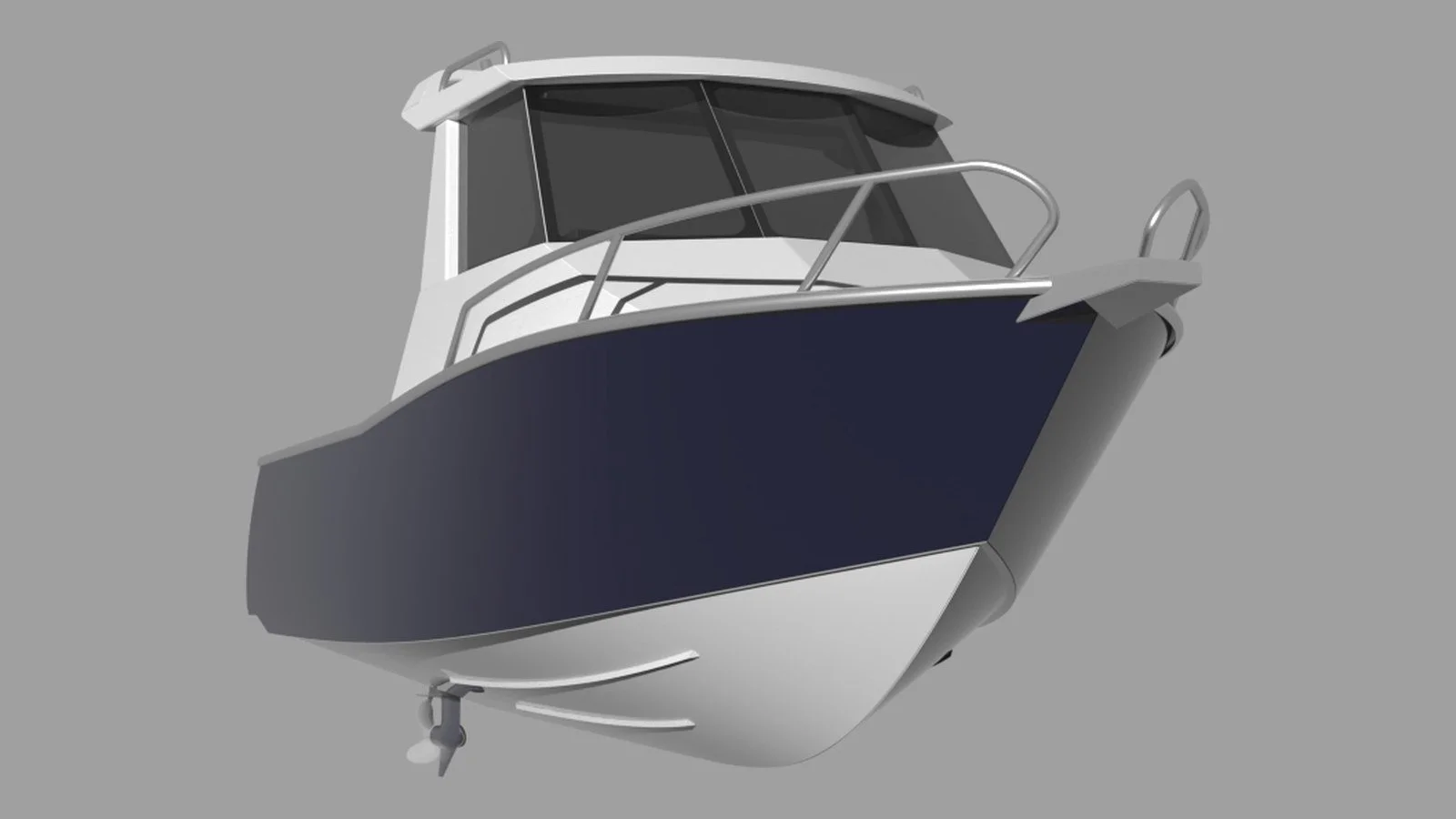

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — bow quarter below 3D

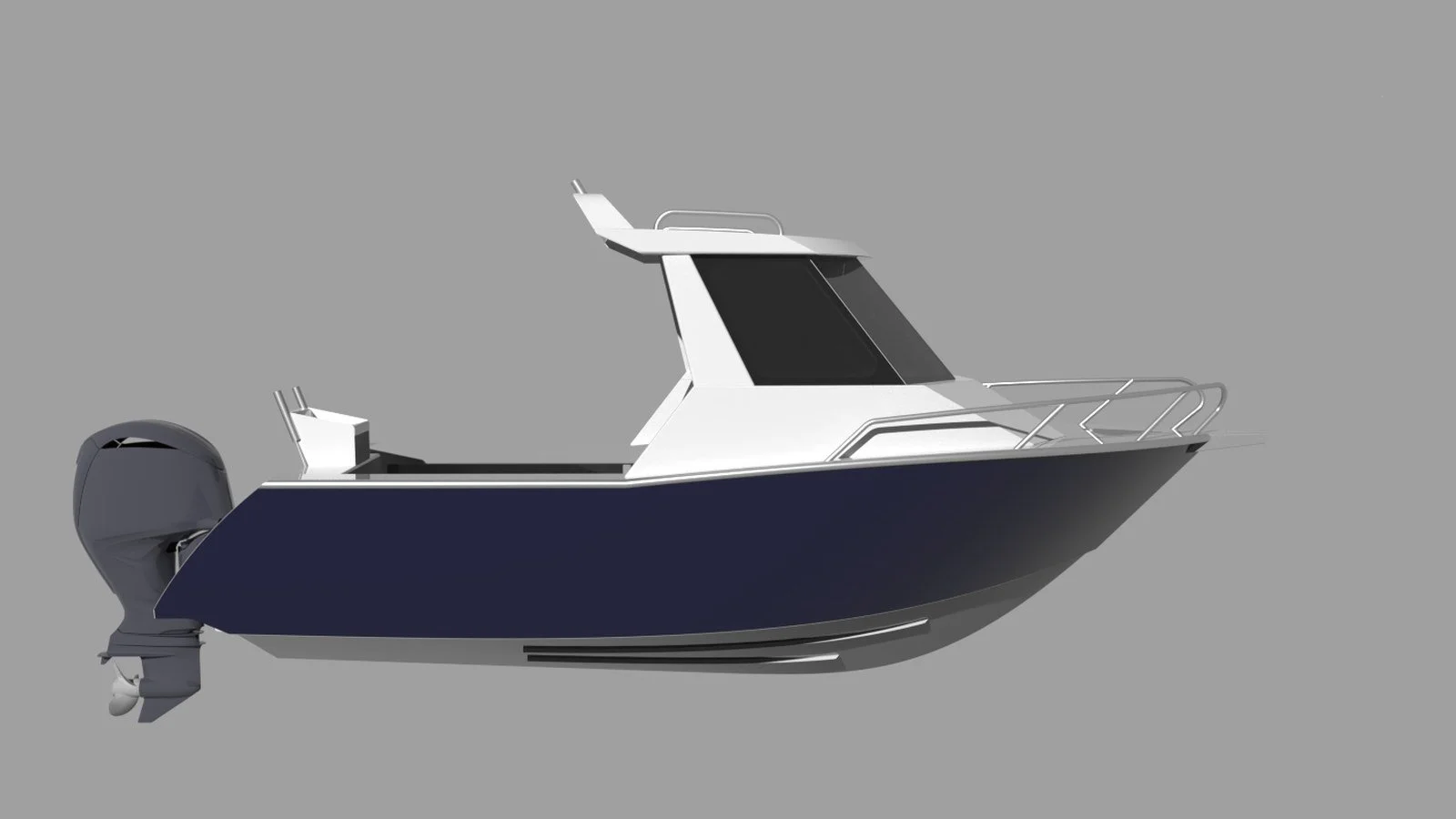

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — profile 3D

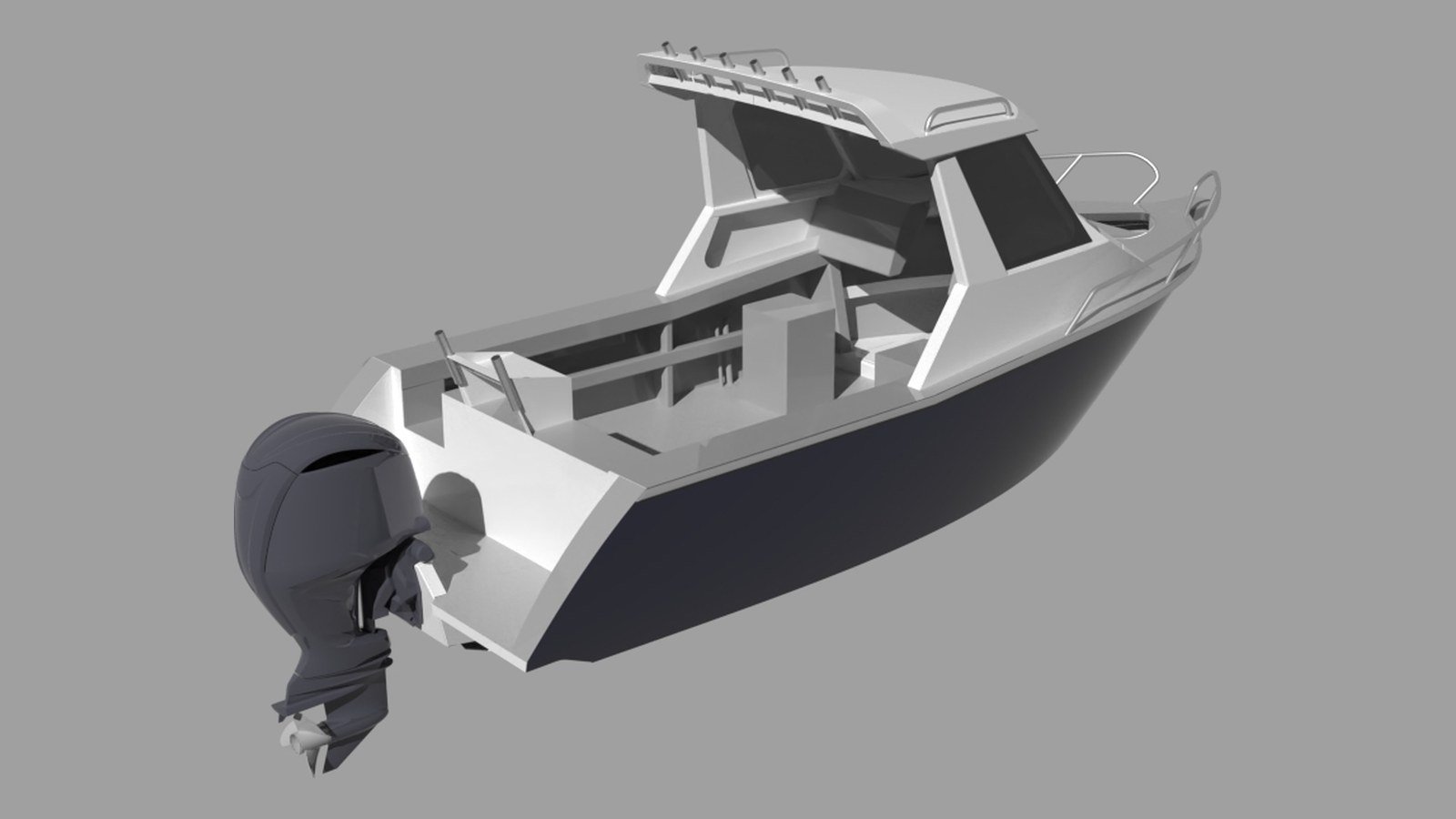

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — stern quarter 3D

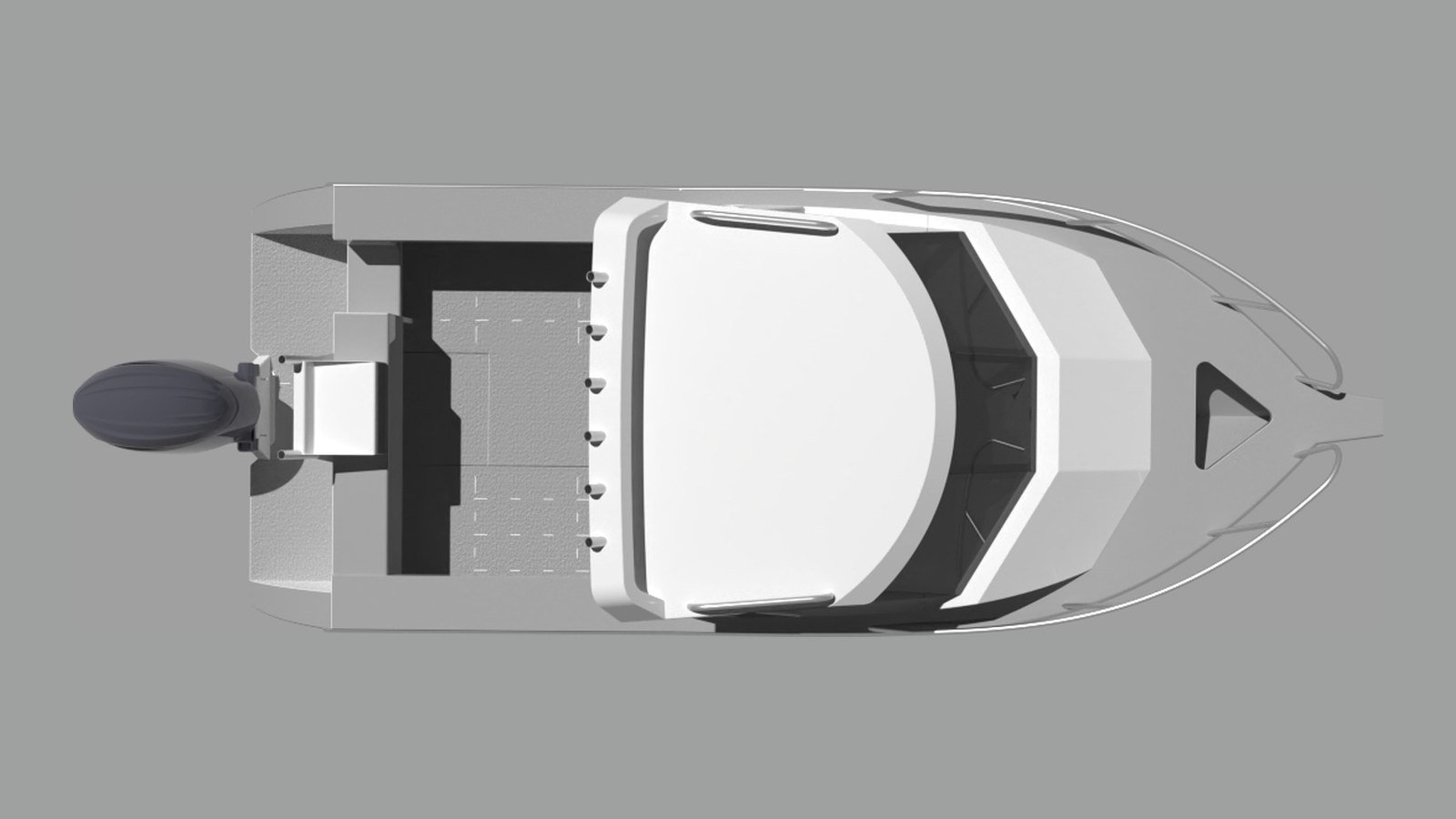

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — plan 3D

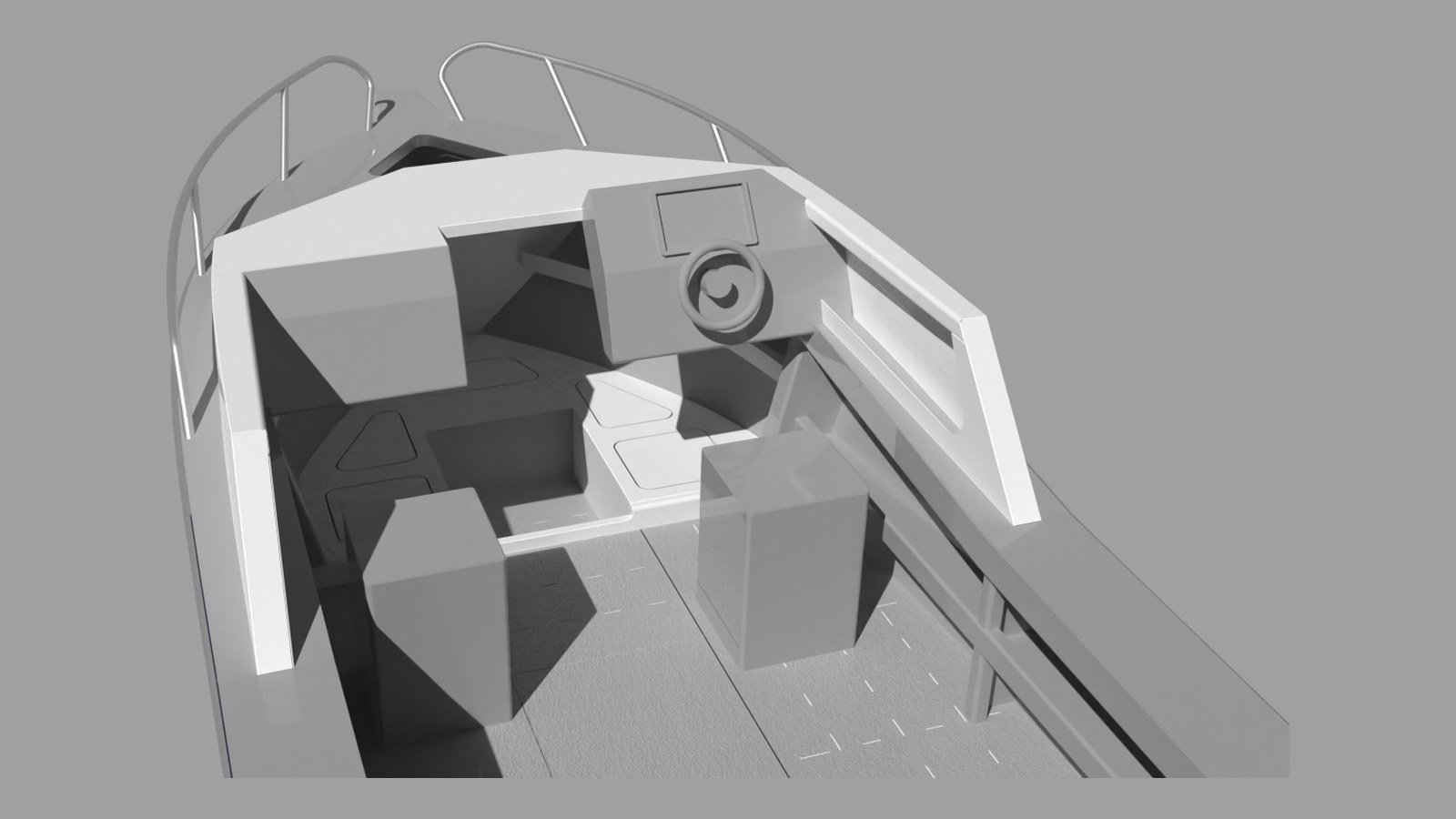

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit — cabin 3D

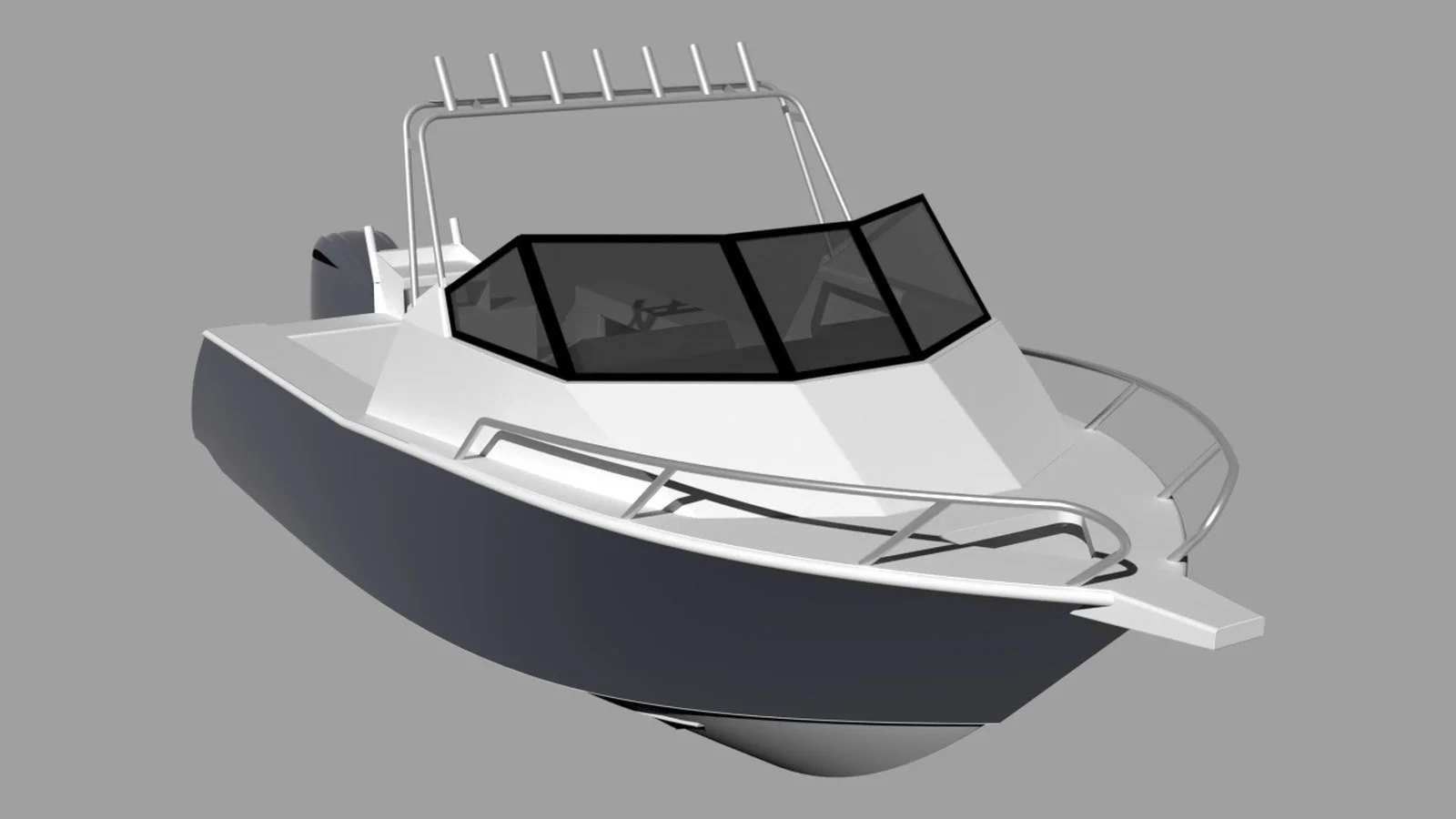

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — bow quarter 3D

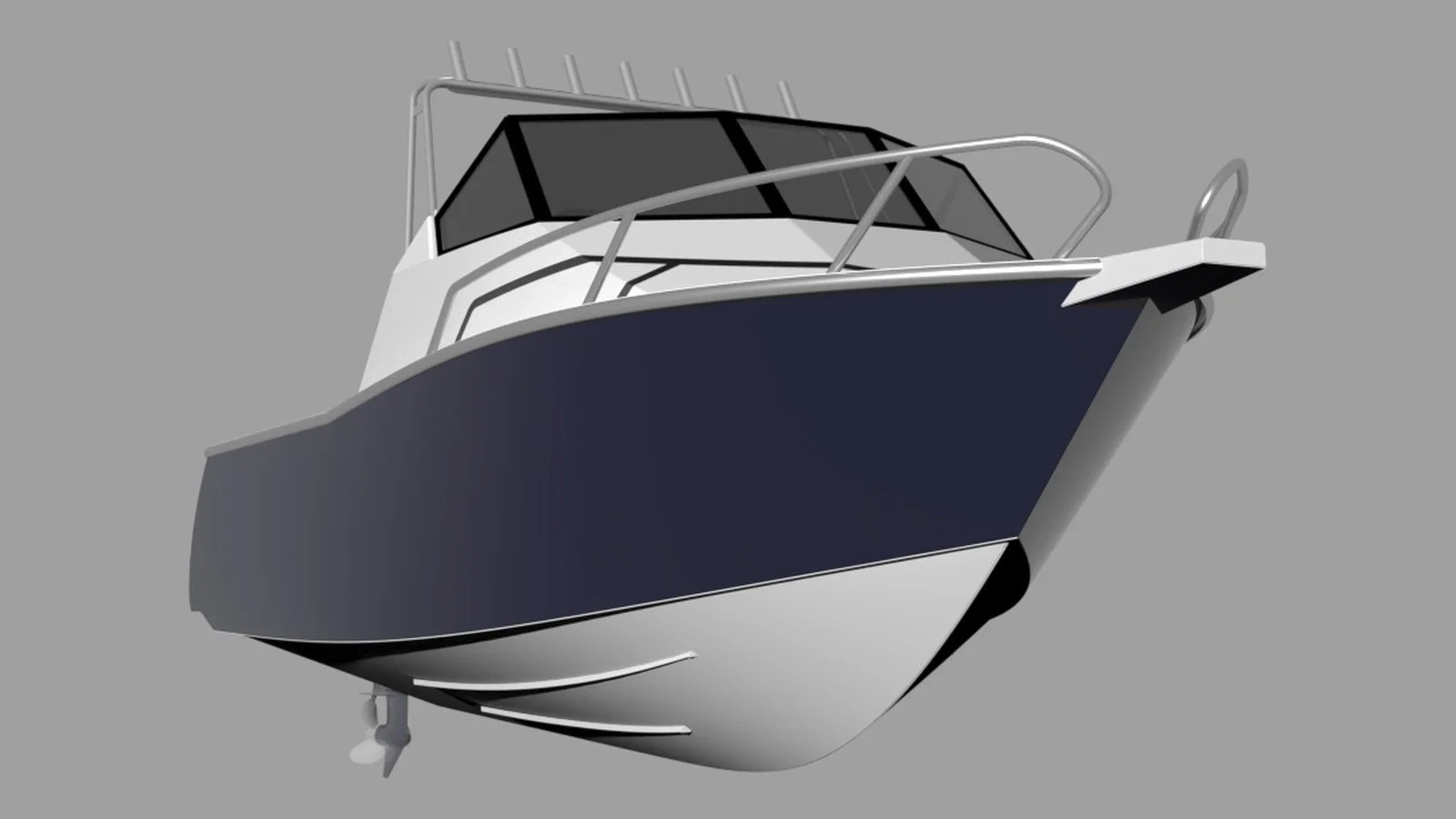

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — bow quarter below 3D

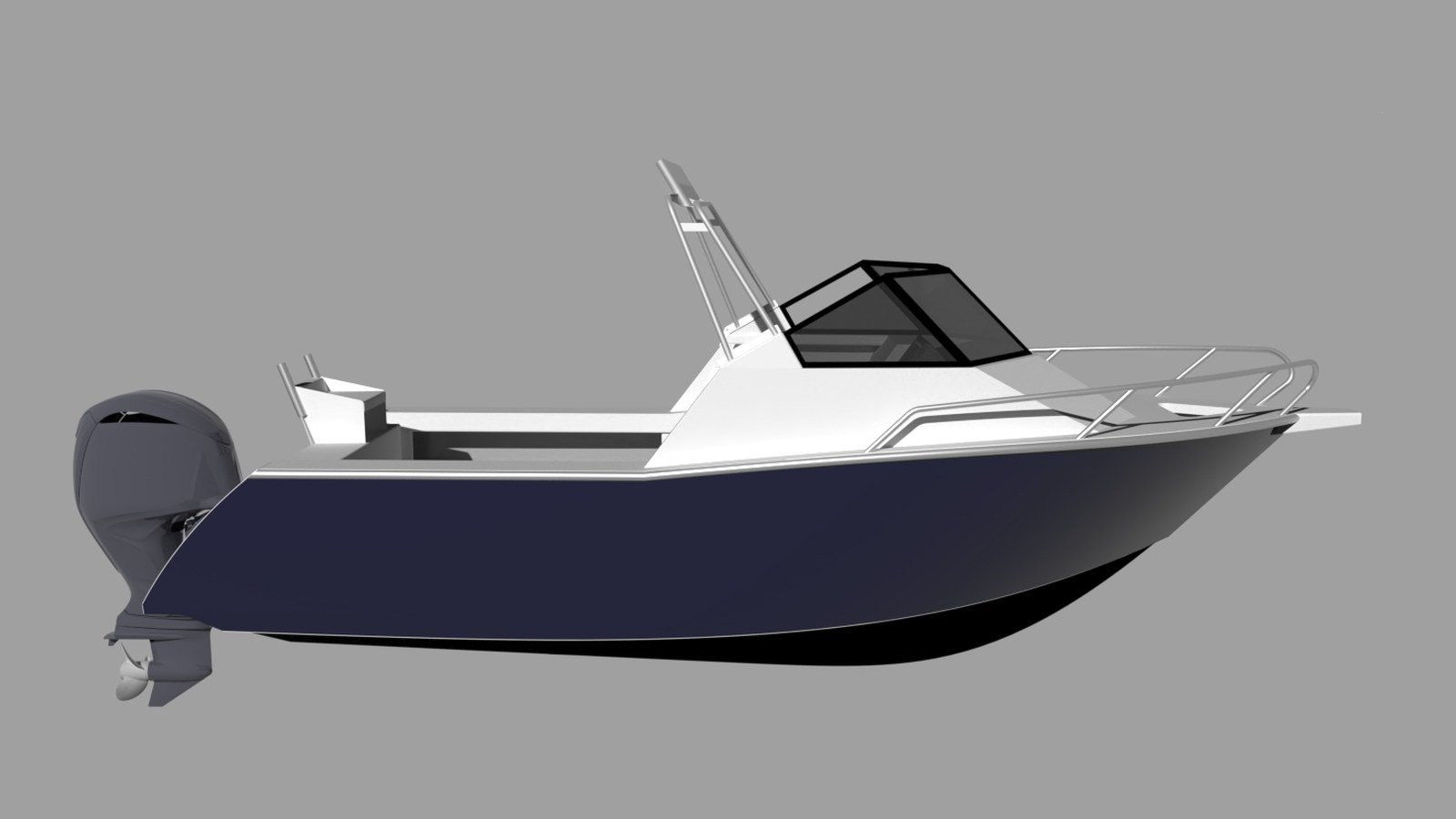

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — profile 3D

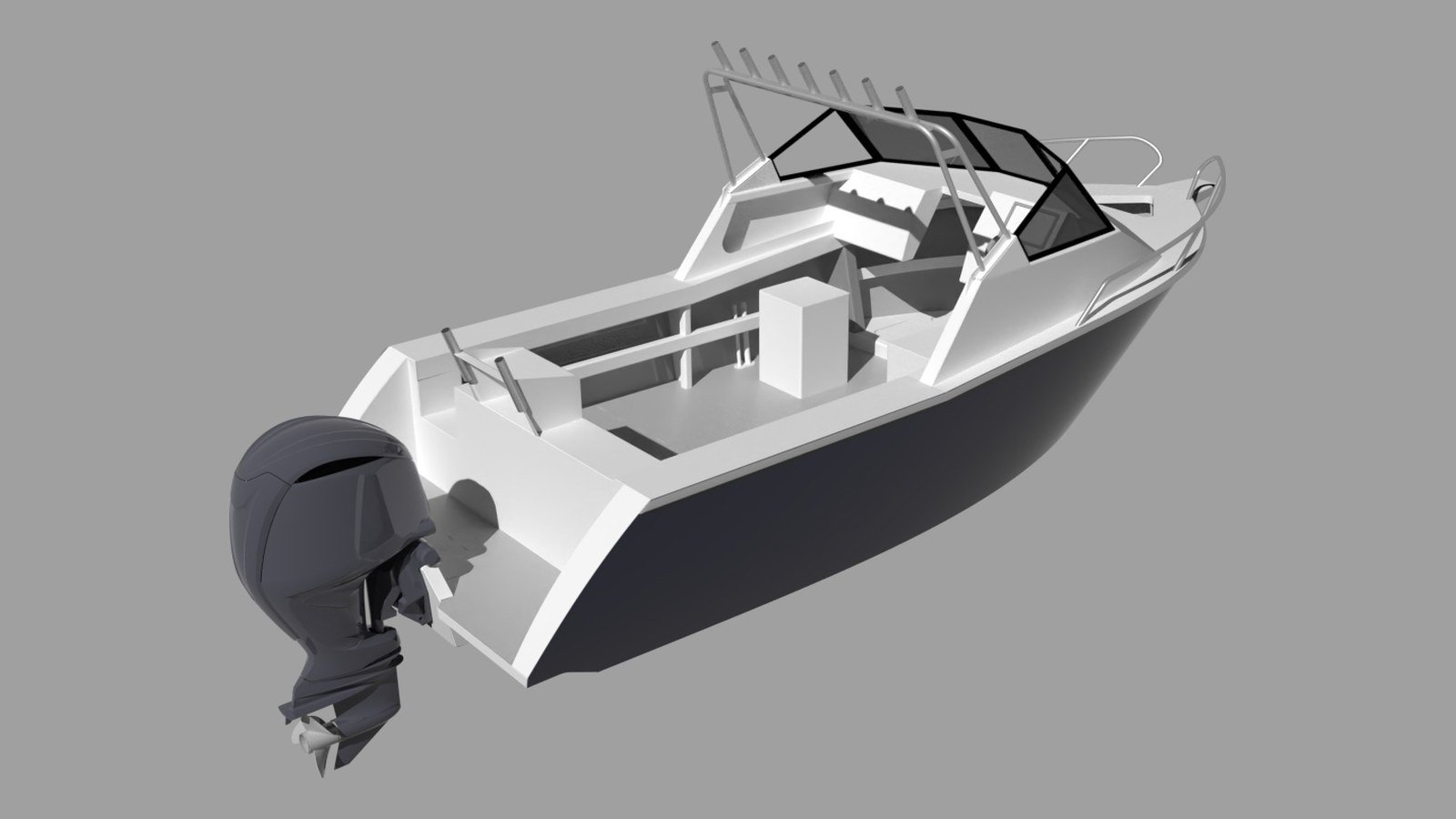

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — stern quarter 3D

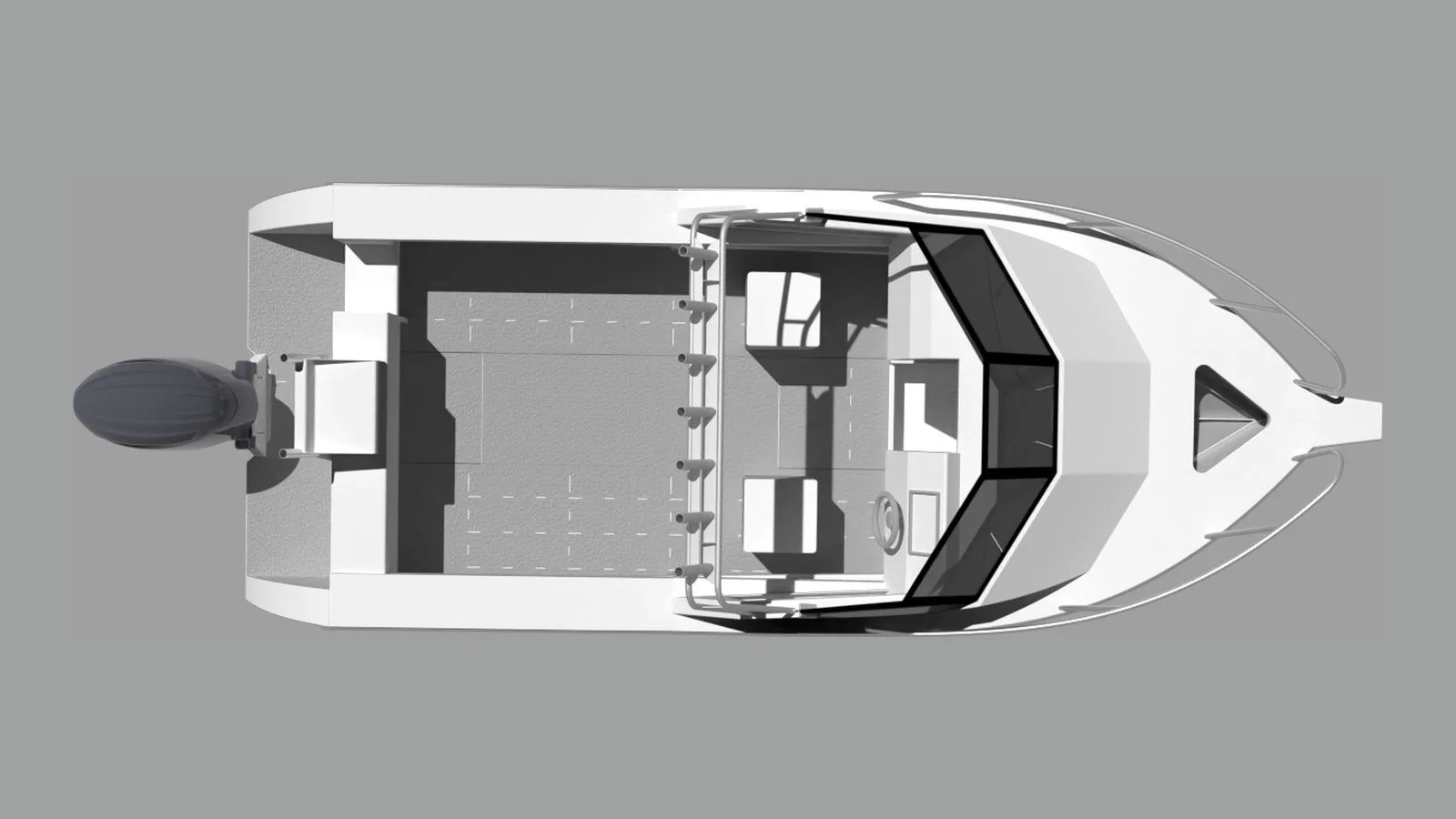

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — plan 3D

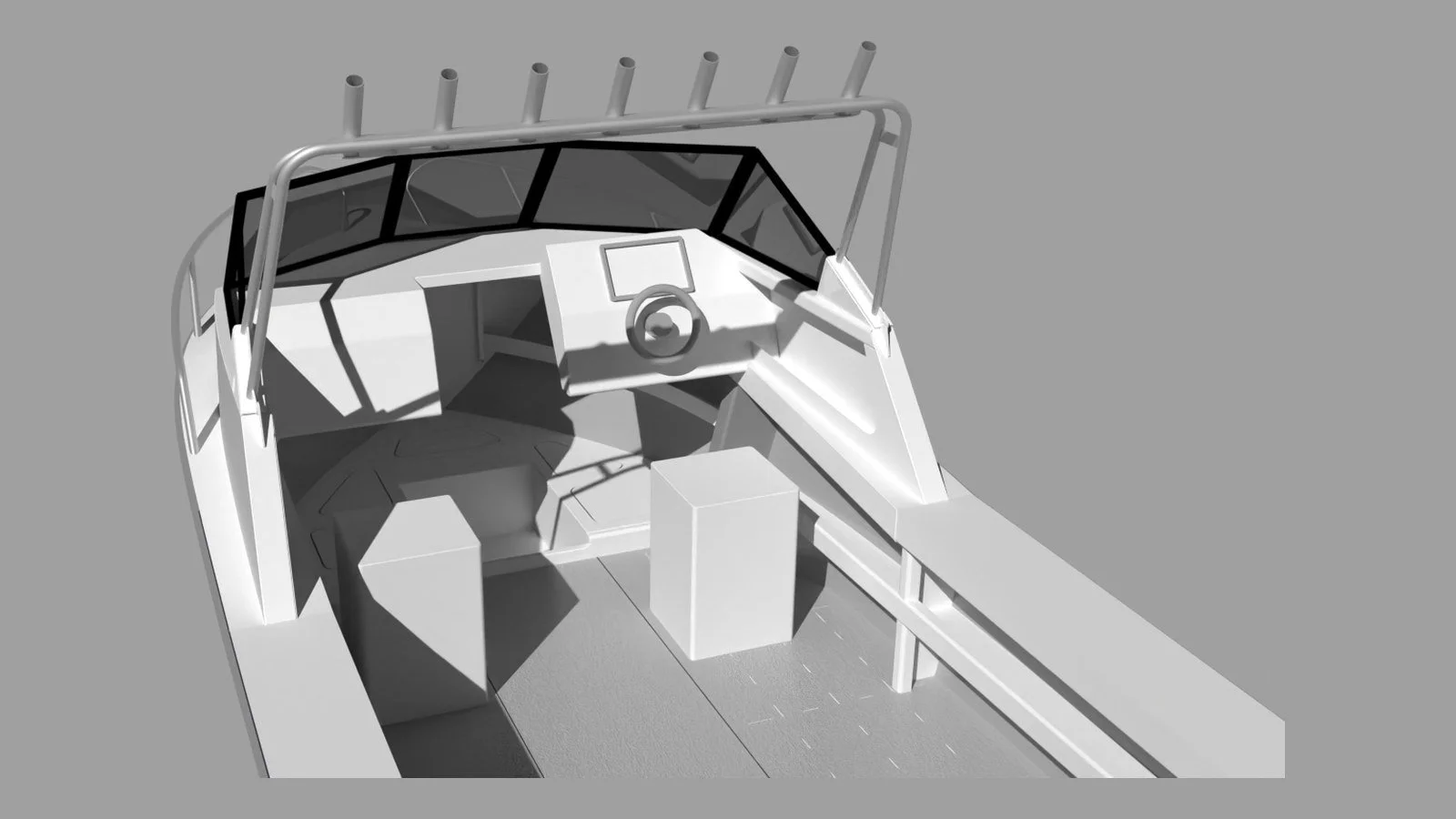

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit — cabin 3D

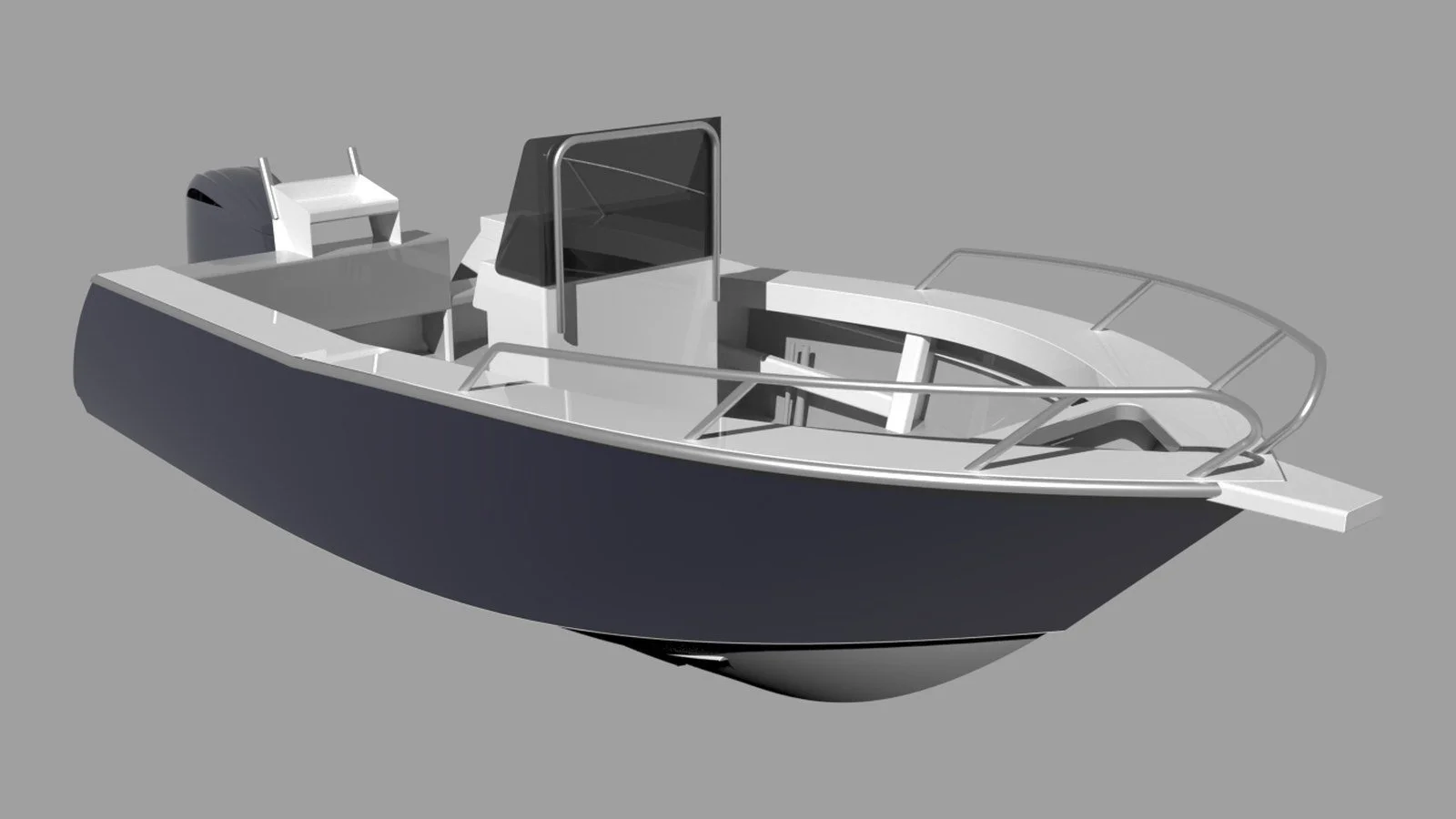

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — bow quarter 3D

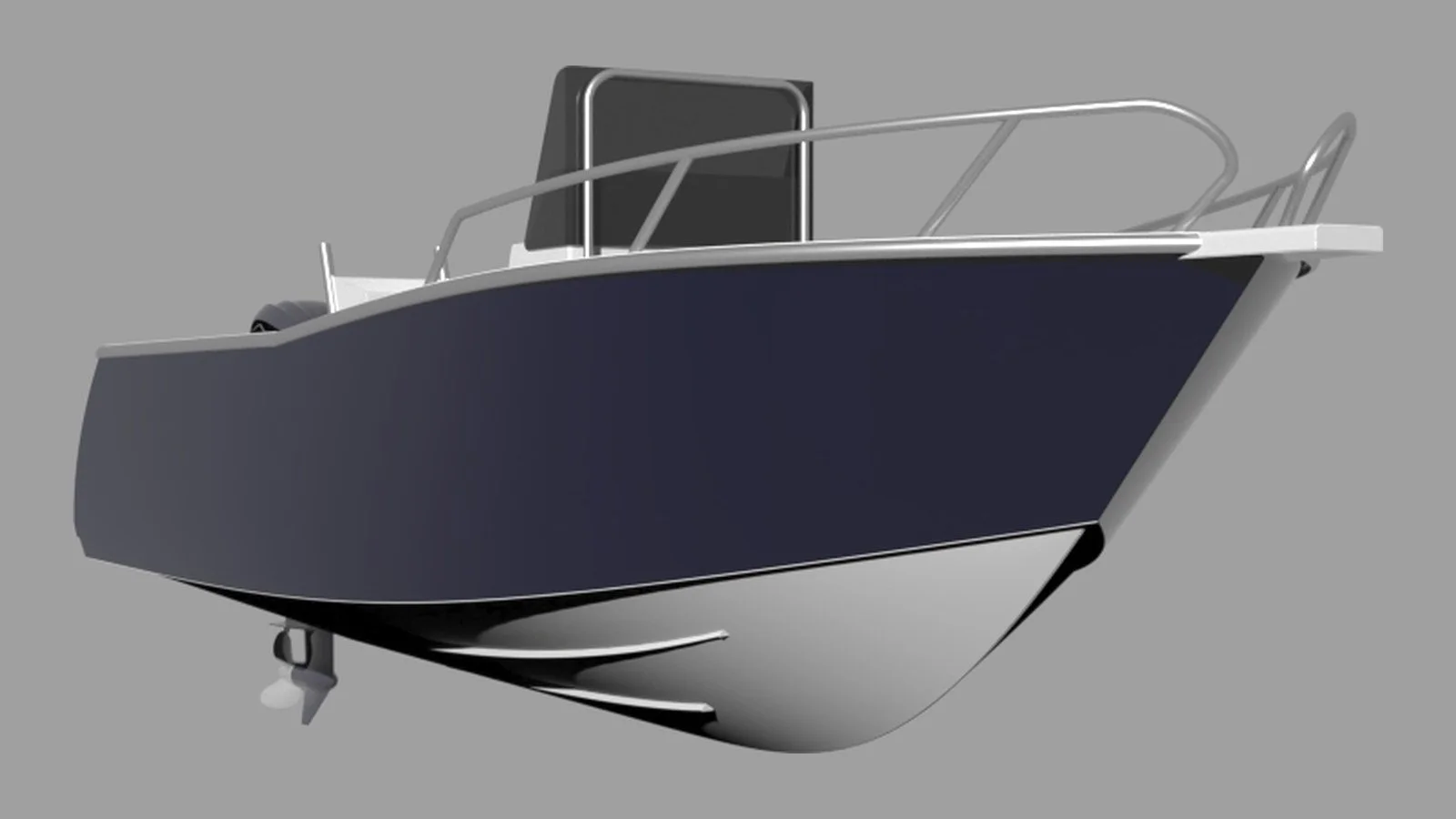

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — bow quarter below 3D

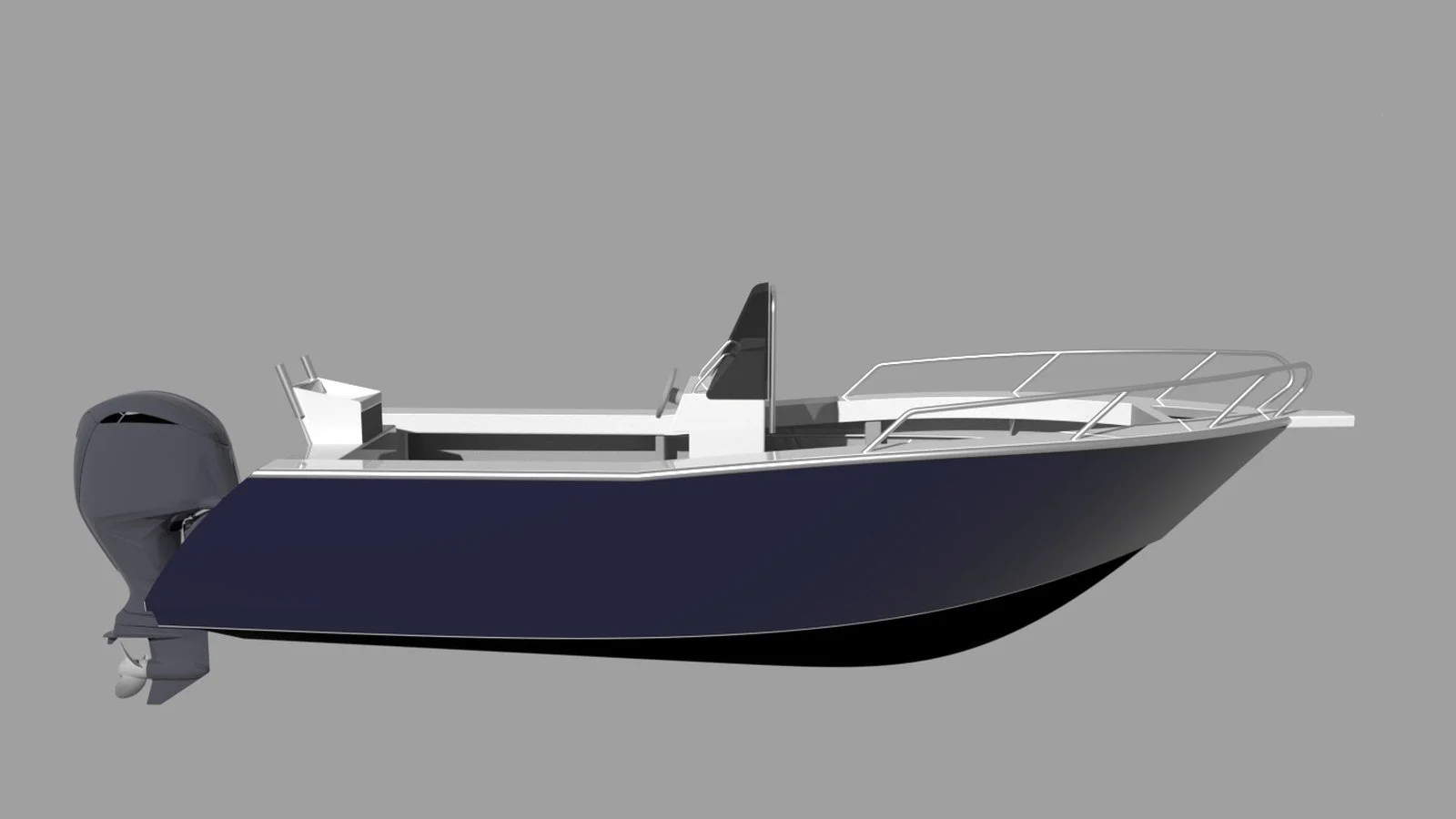

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — profile 3D

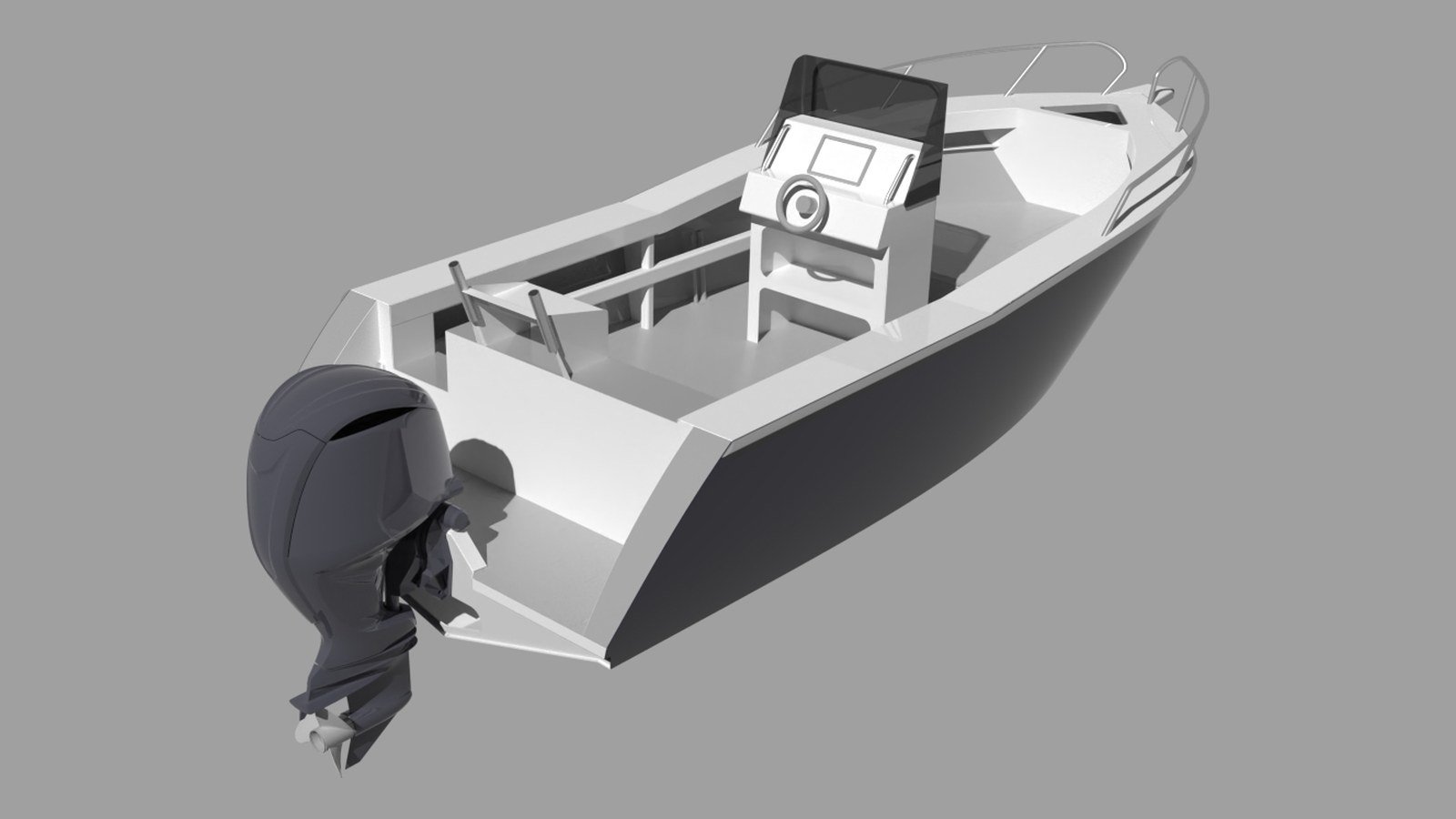

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — stern quarter 3D

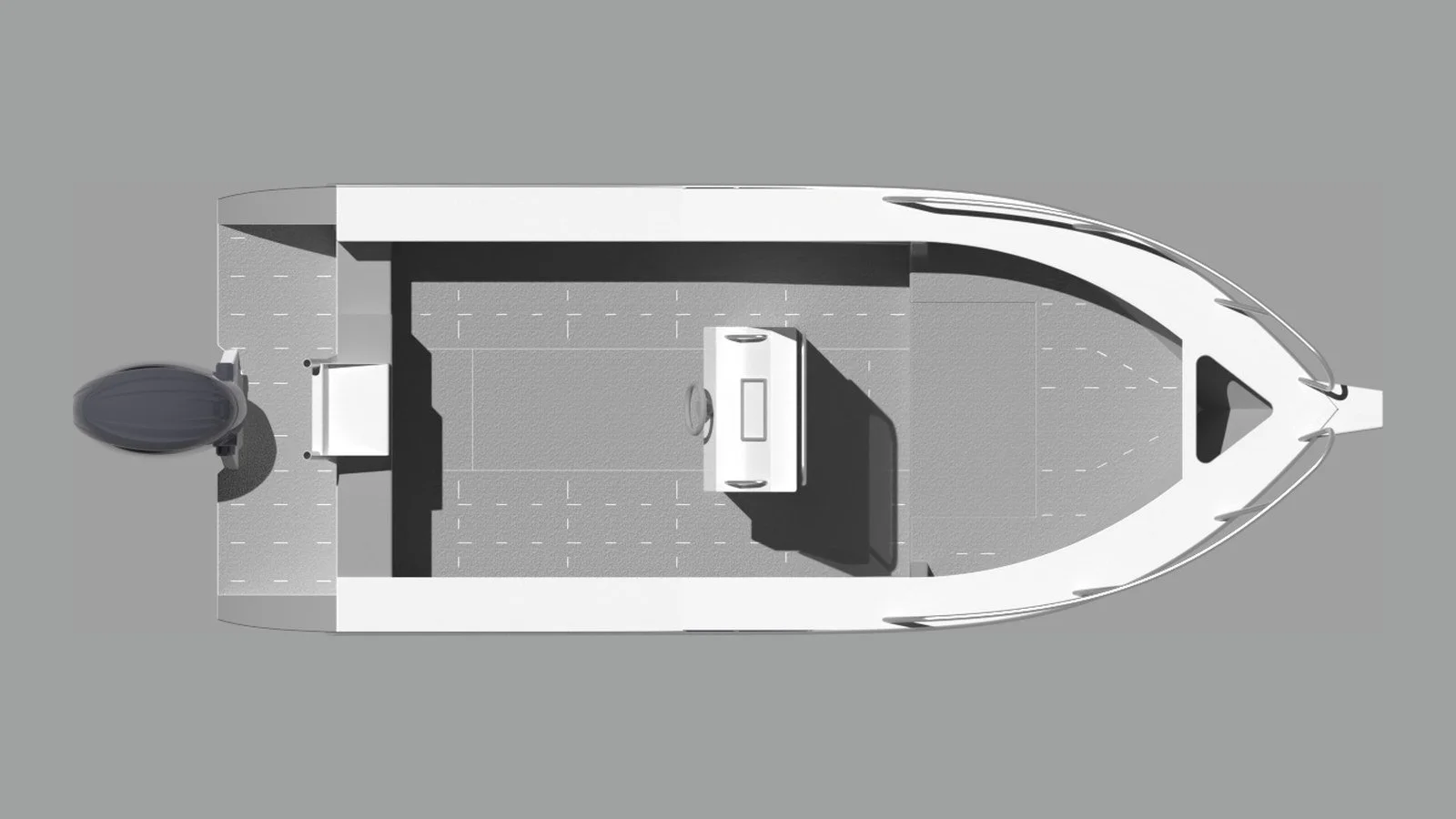

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — plan 3D

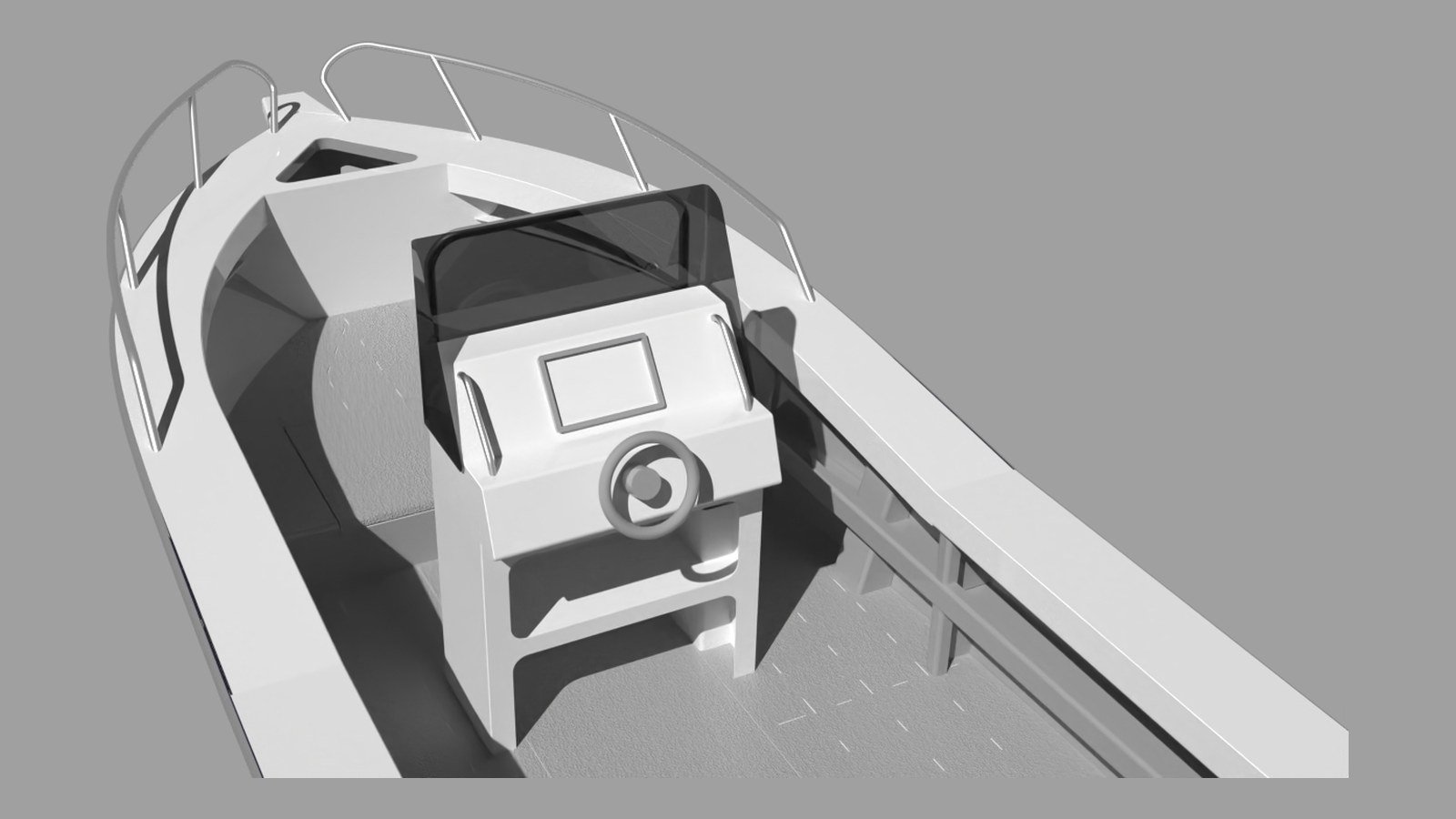

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit — stern quarter 3D

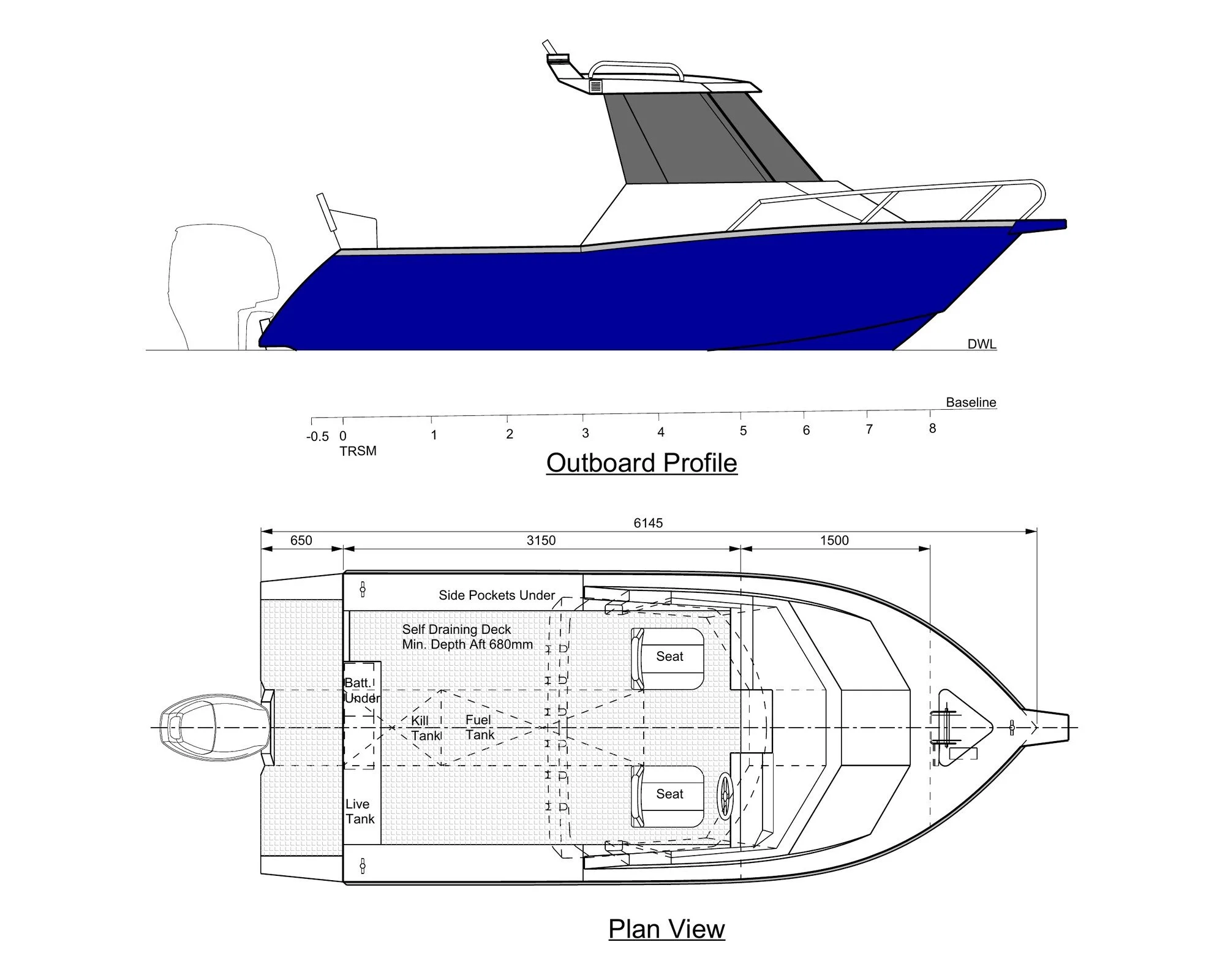

Sherwood Marine 615HT hardtop 6.15 m aluminium monohull boat kit - GA

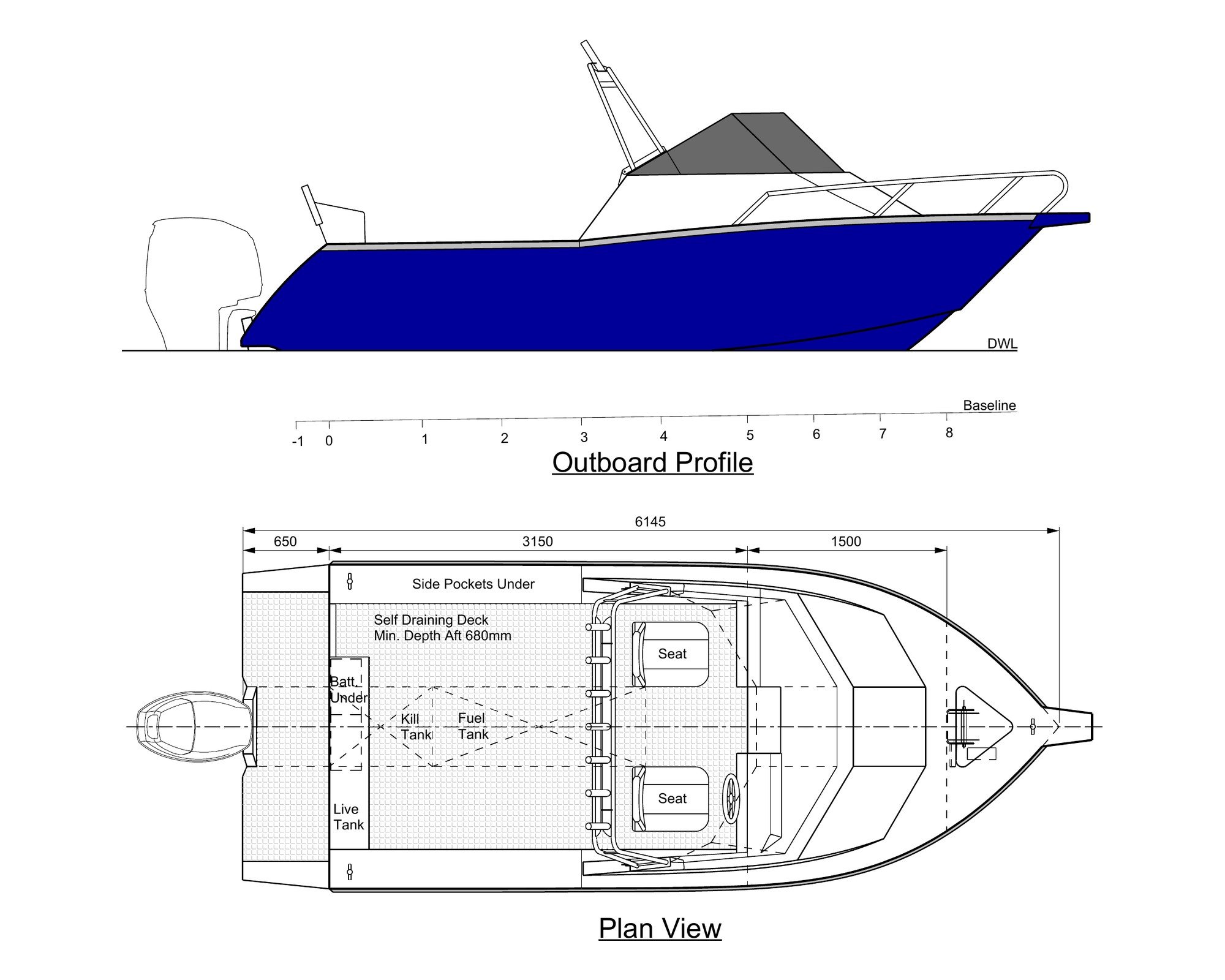

Sherwood Marine 615CD cuddy 6.15 m aluminium monohull boat kit - GA

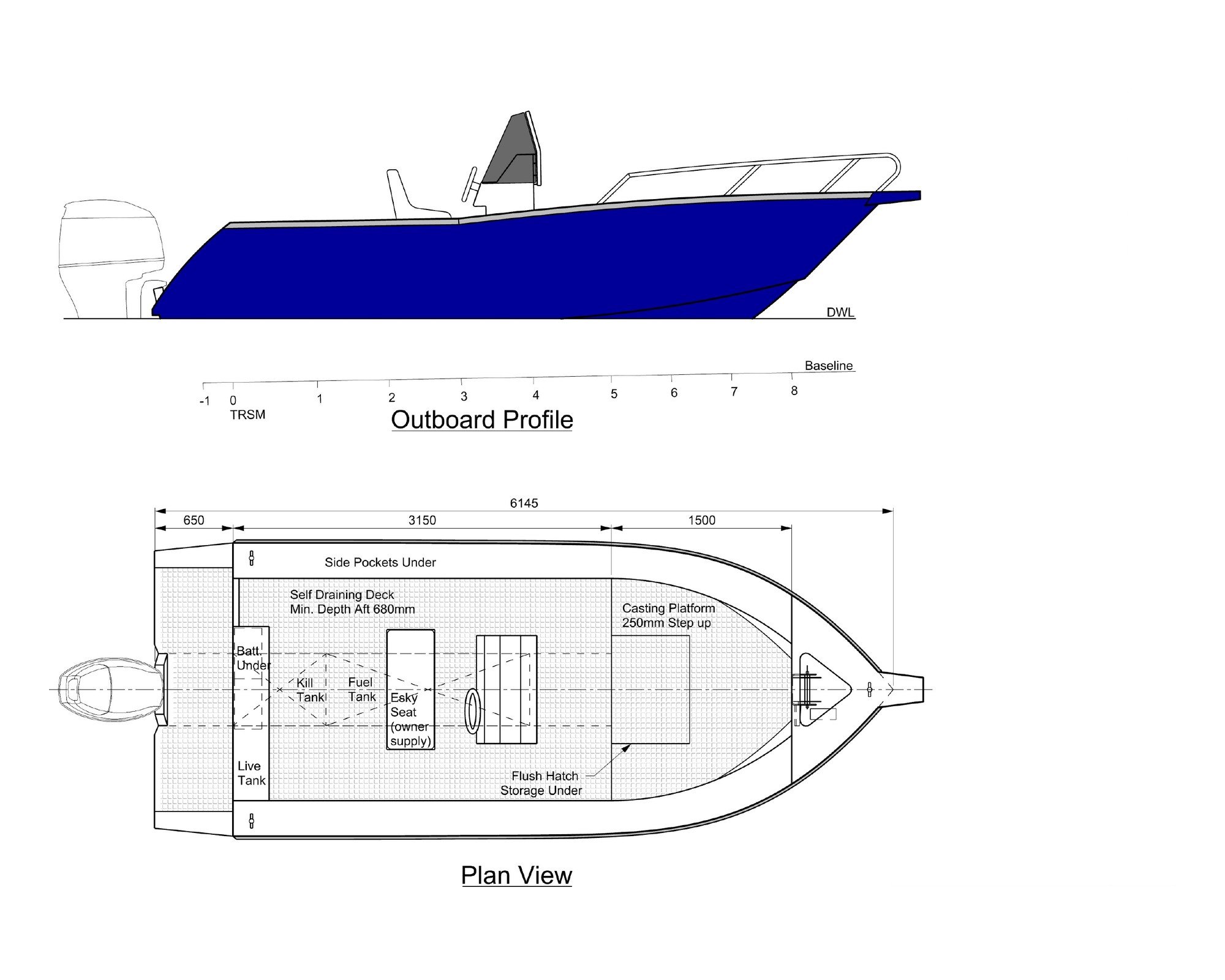

Sherwood Marine 615CC centre console 6.15 m aluminium monohull boat kit - GA

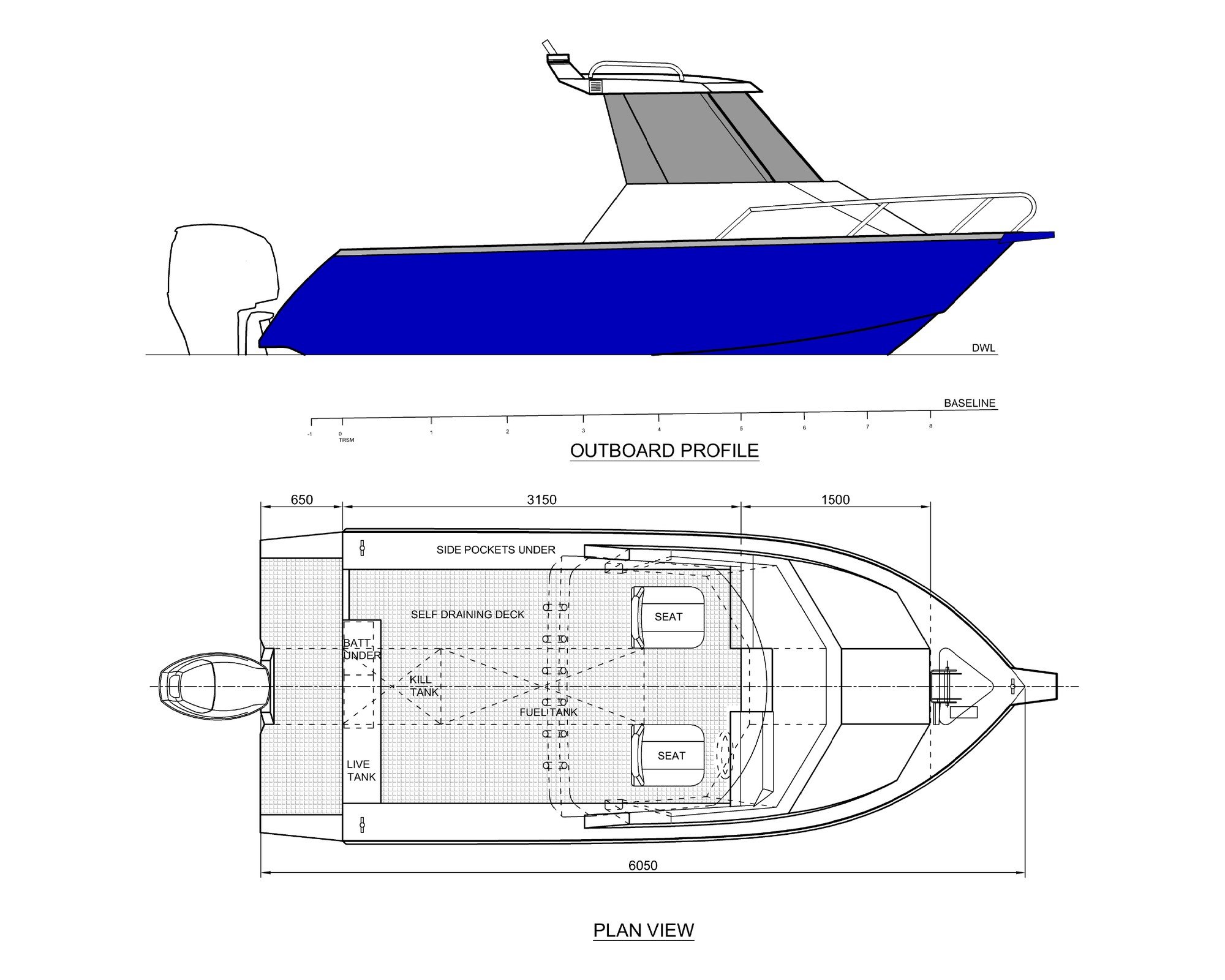

Sherwood Marine 600HT hardtop aluminium monohull boat kit - GA (superseded by the 615)

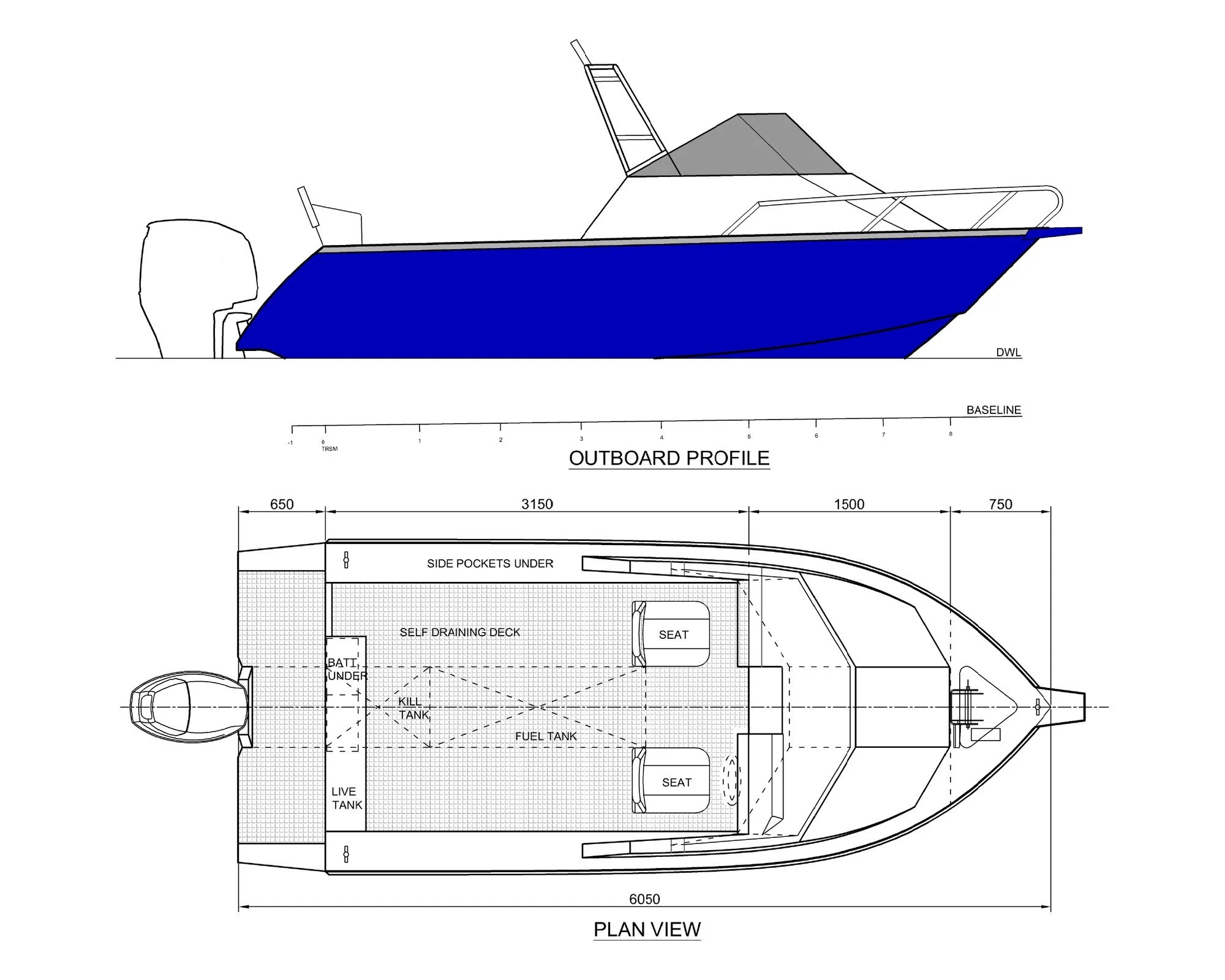

Sherwood Marine 600CD cuddy aluminium monohull boat kit - GA (superseded by the 615)

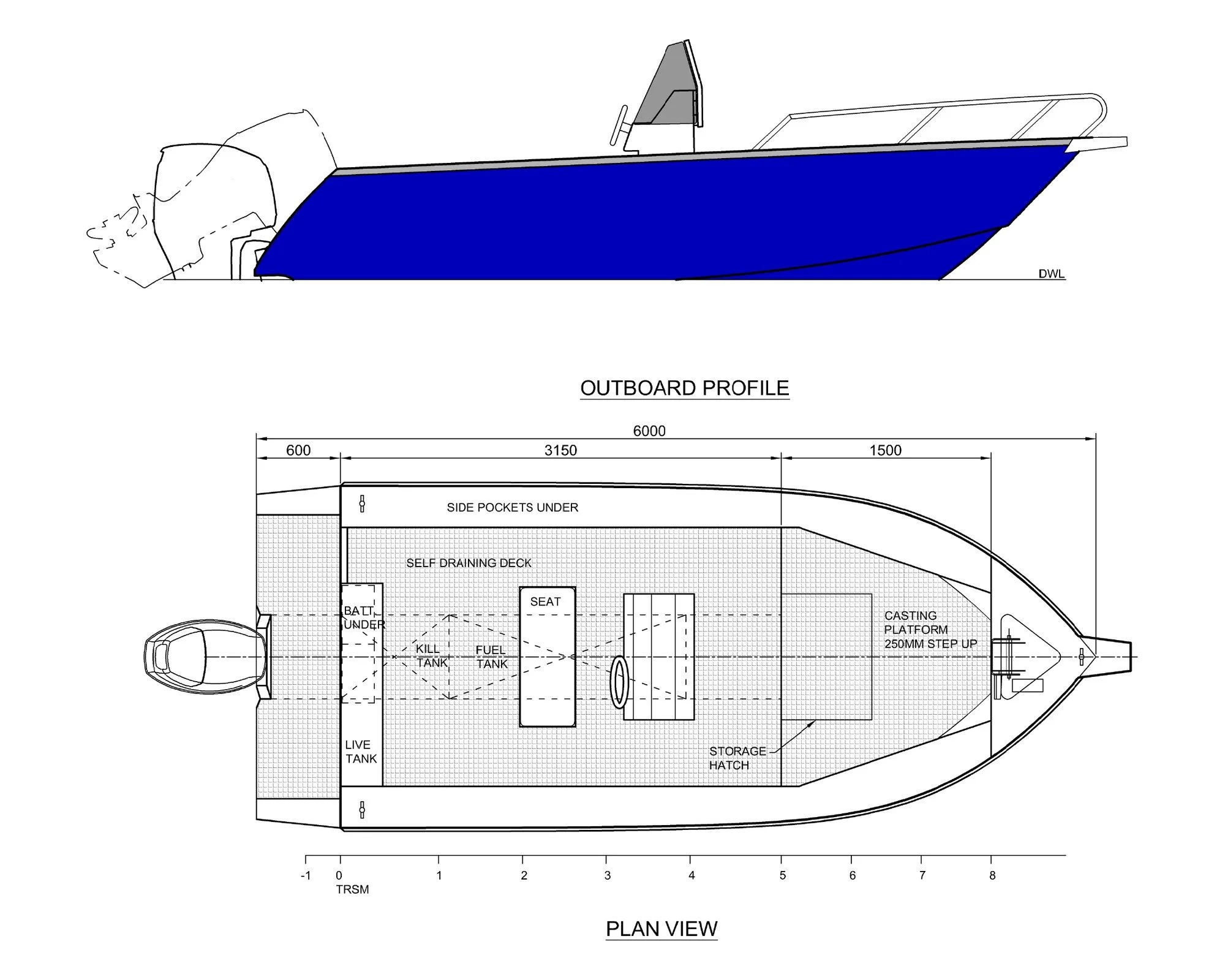

Sherwood Marine 600CC centre console aluminium monohull boat kit - GA (superseded by the 615)

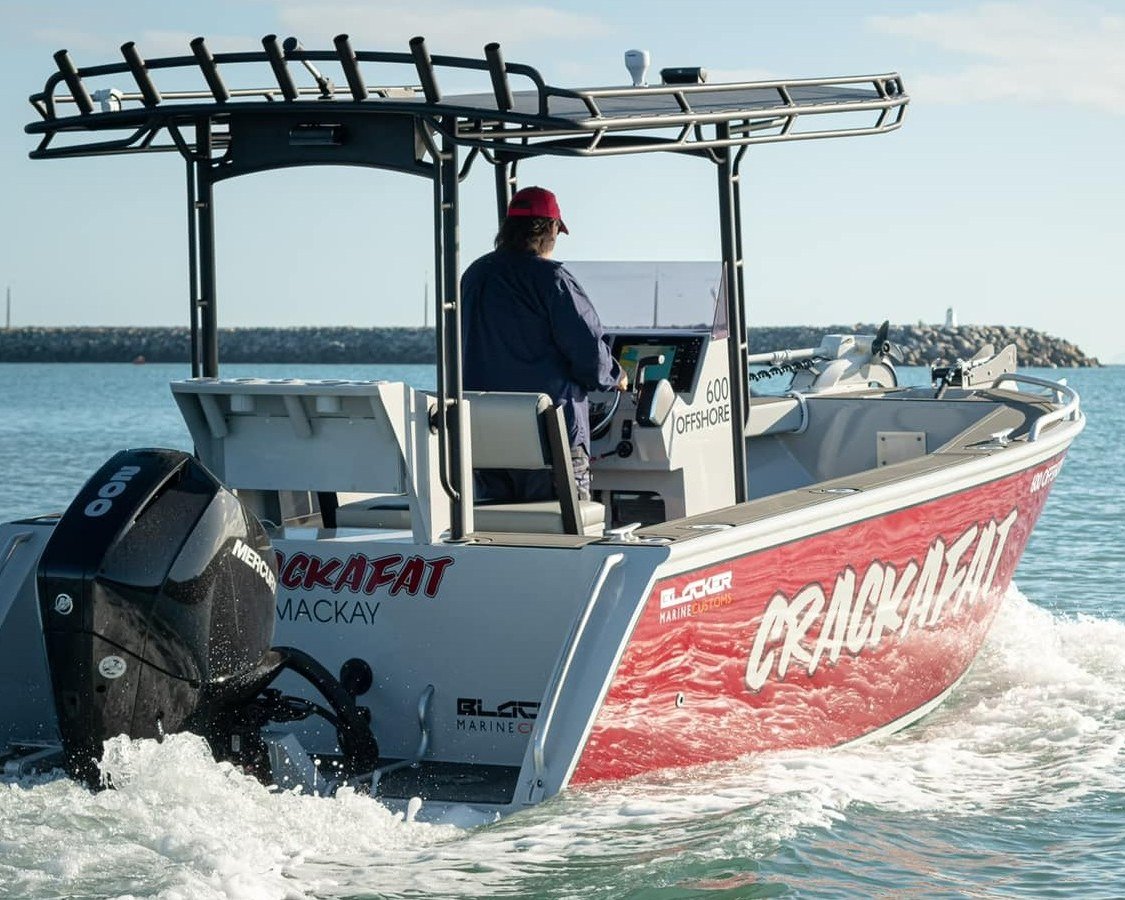

Sherwood Marine 600CC - 6m Centre Console aluminium boat kit - underway, stern quarter

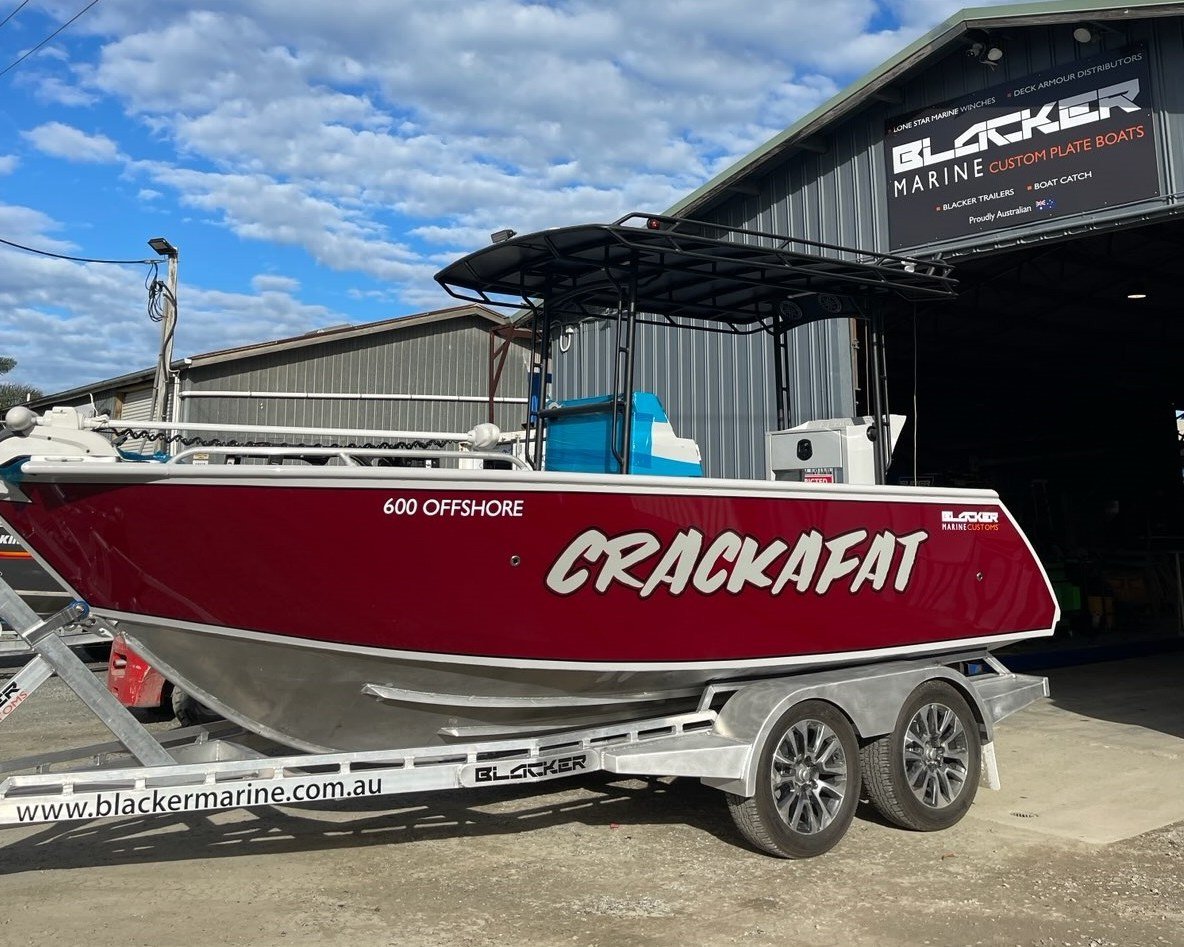

Sherwood Marine 600CC - 6m Centre Console aluminium boat kit - on the trailer, port profile

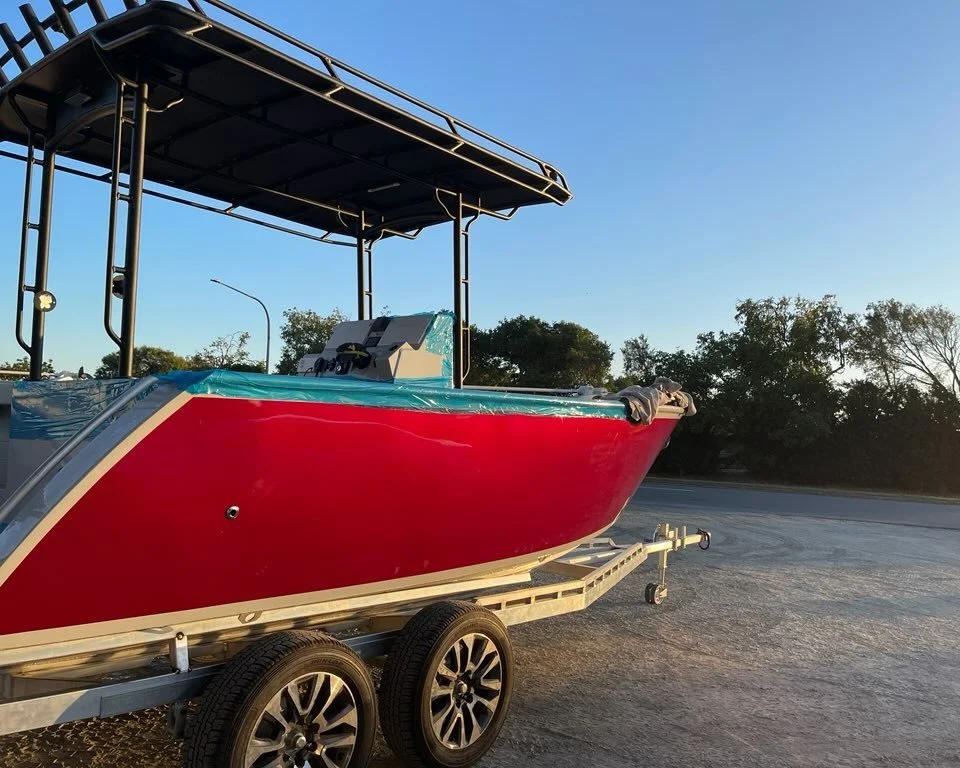

Sherwood Marine 600CC - 6m Centre Console aluminium boat kit - finished boat on the trailer, starboard profile

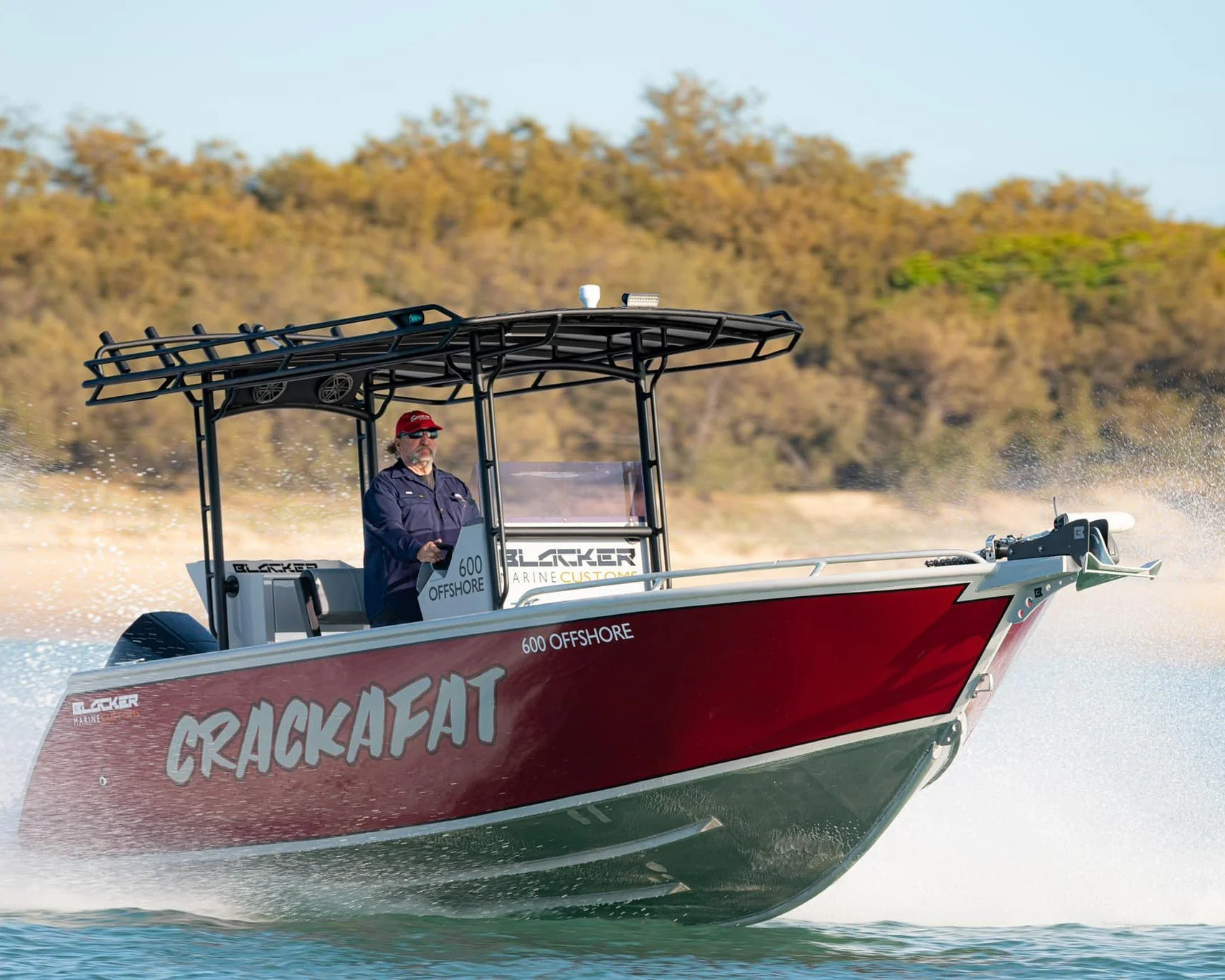

Sherwood Marine 600CC - 6m Centre Console aluminium boat kit - on the water, starboard bow quarter

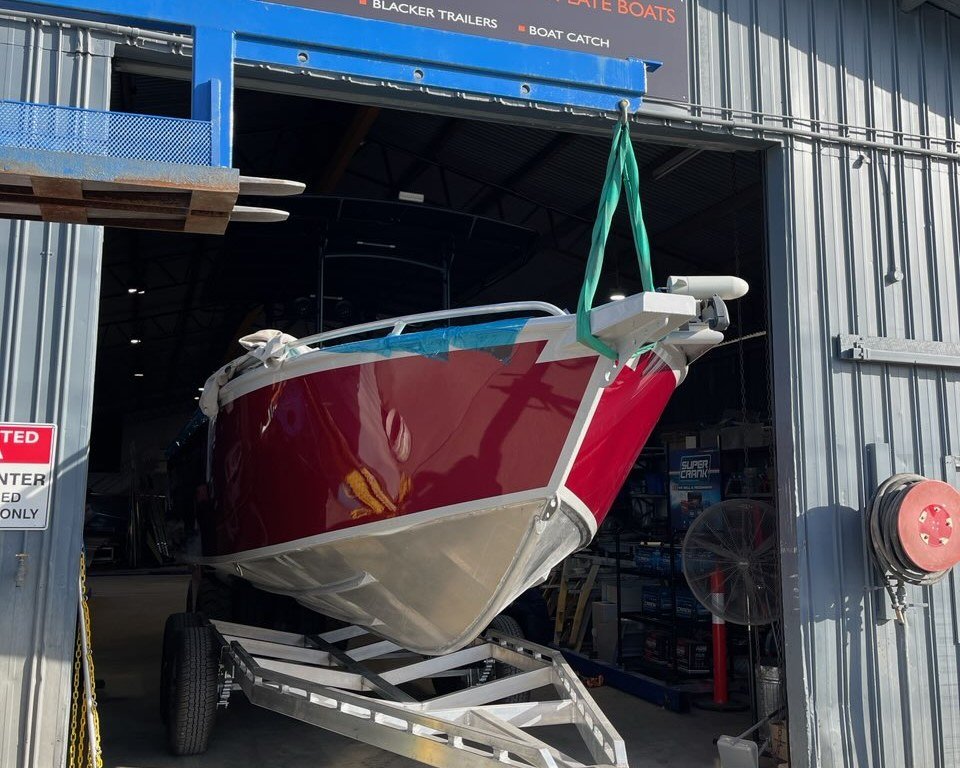

Sherwood Marine 600CC centre console aluminium monohull boat kit - lifted onto trailer

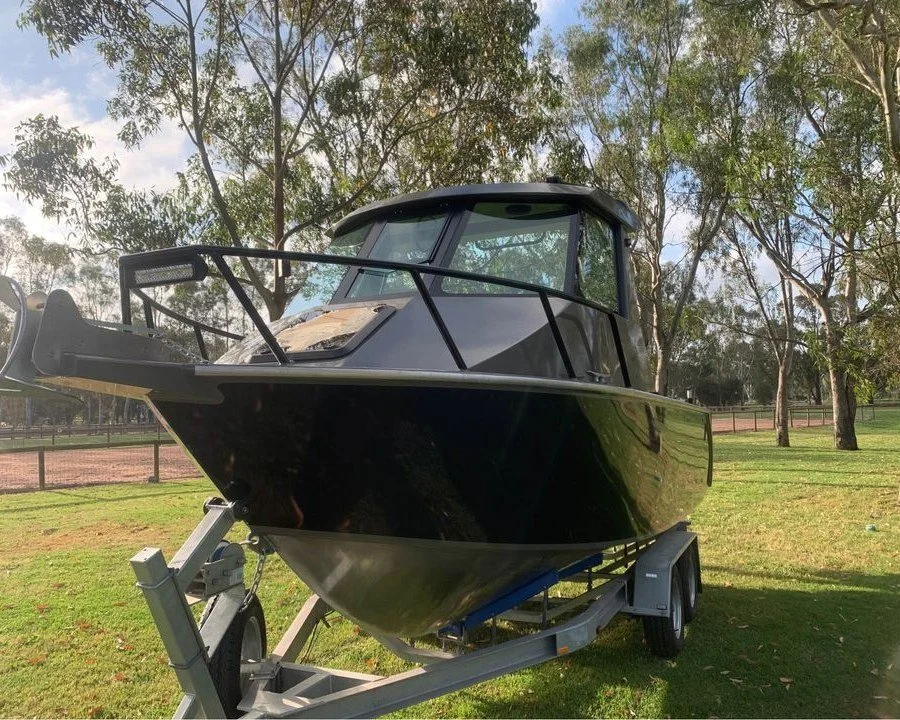

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, port bow quarter
Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, port bow quarter

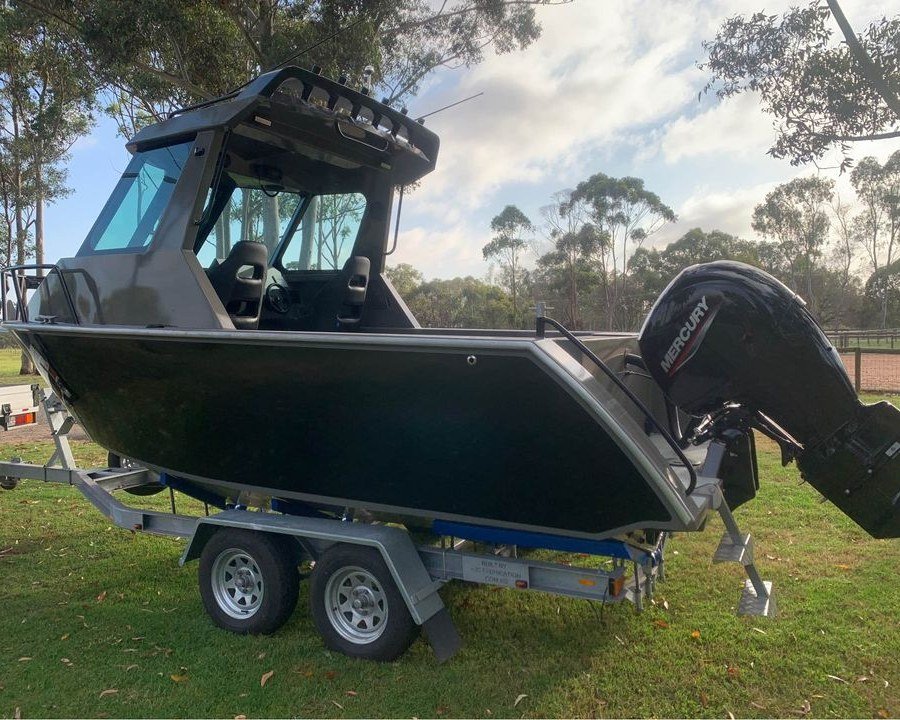

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, stern quarter

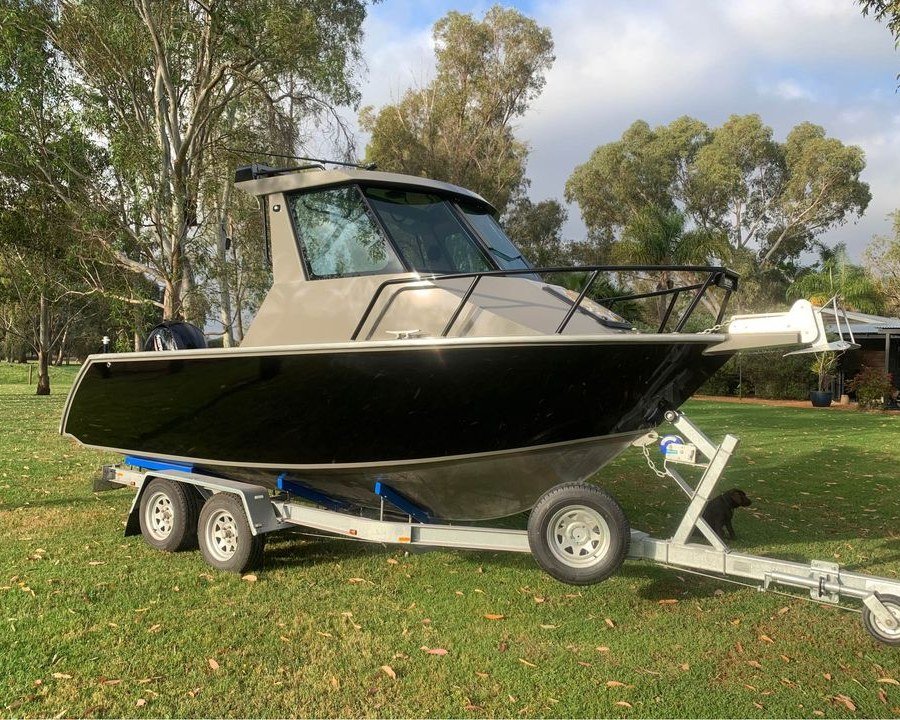

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, starboard bow quarter

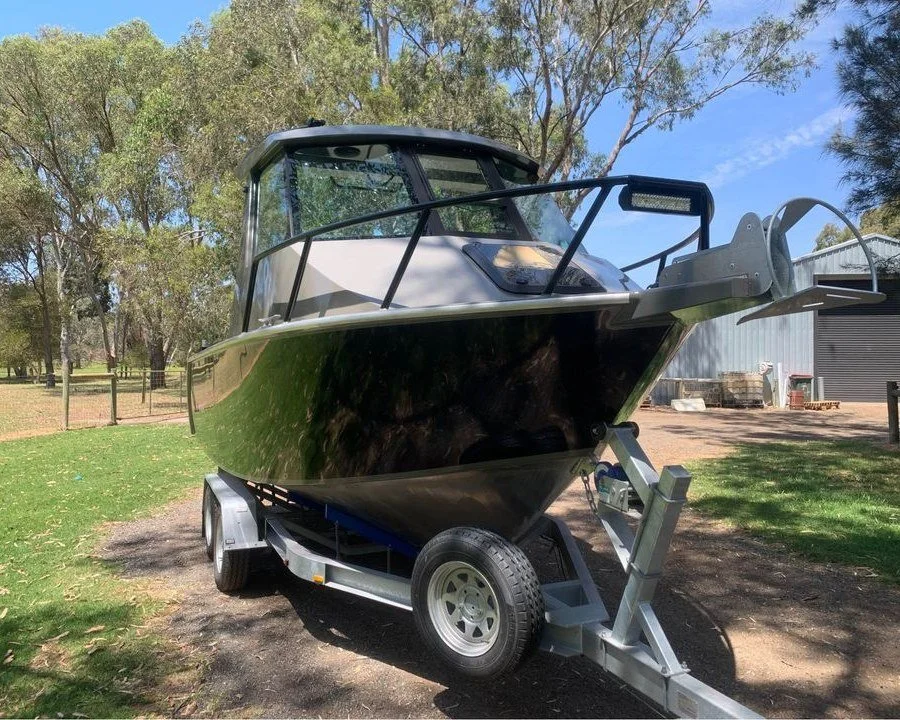

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, starboard bow quarter #2

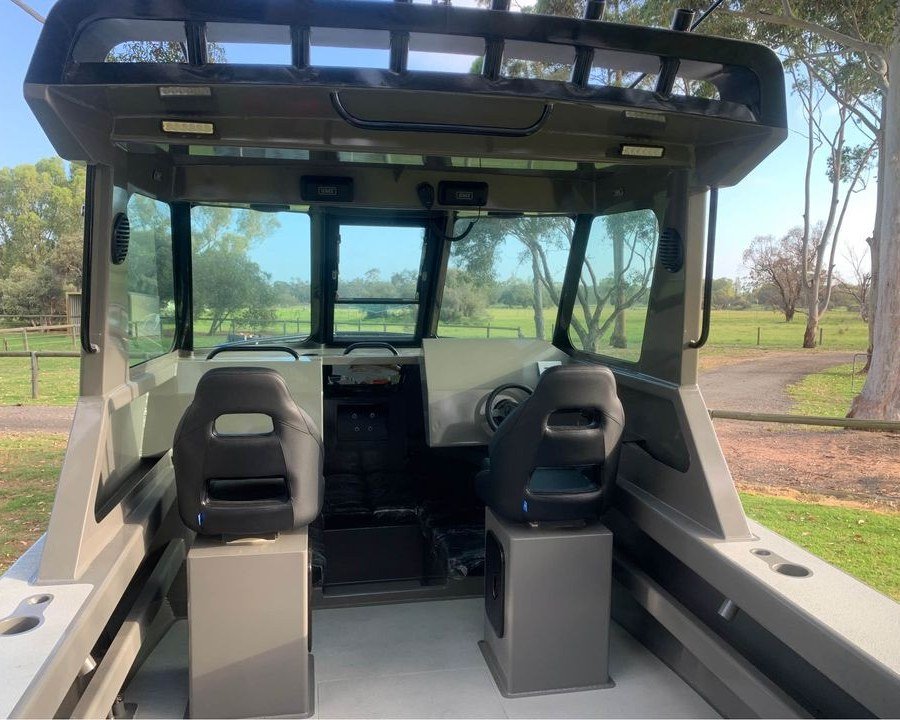

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - hardtop interior with helm seats

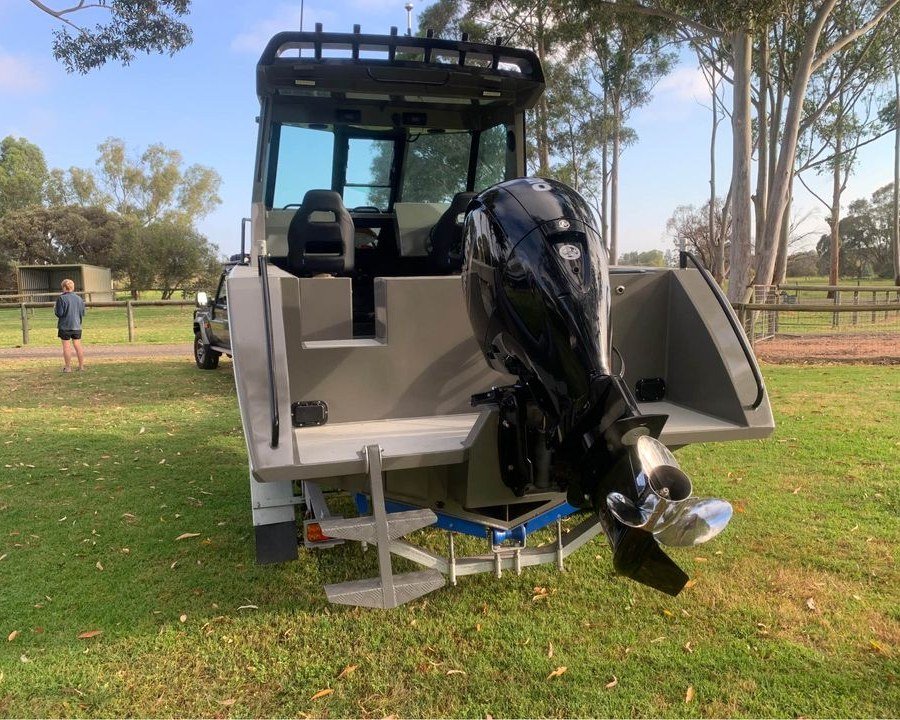

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - stern view, transom and outboard

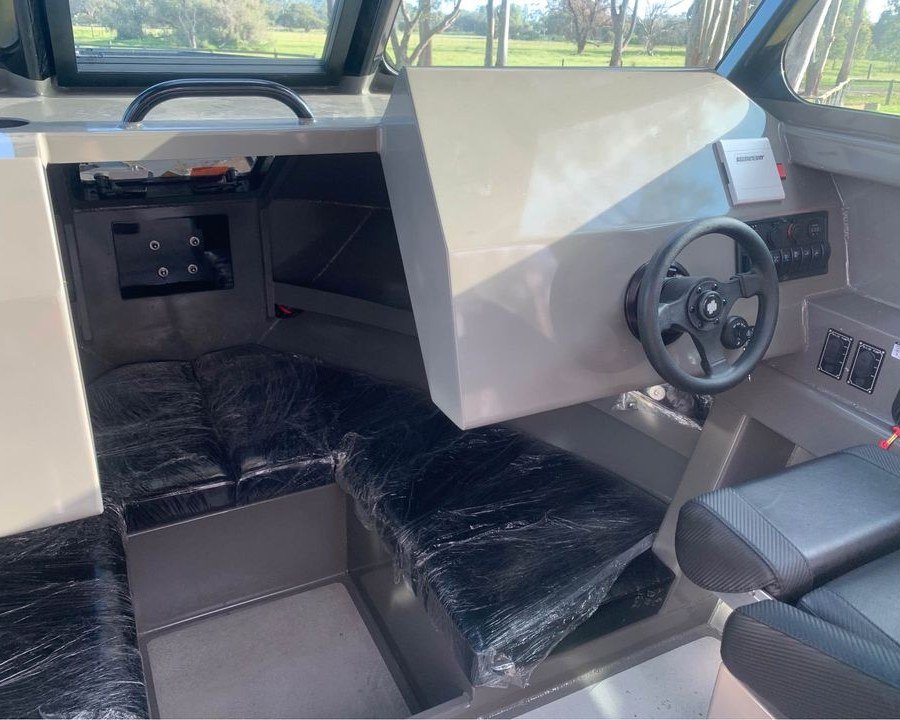

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - helm station and dash

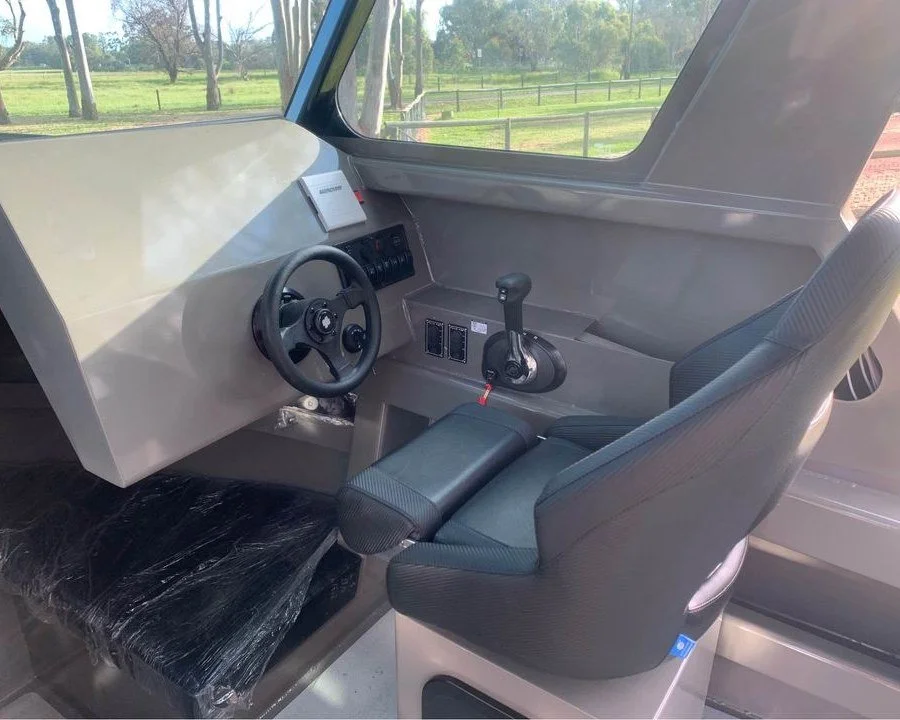

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - helm station, wheel and controls

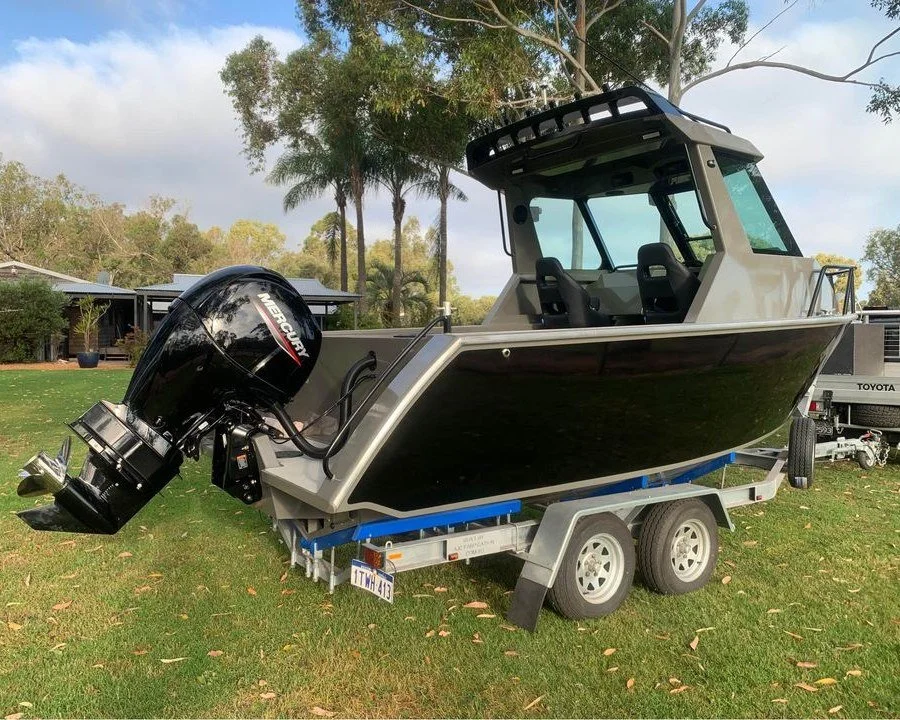

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - on the trailer, starboard quarter with the outboard tilted

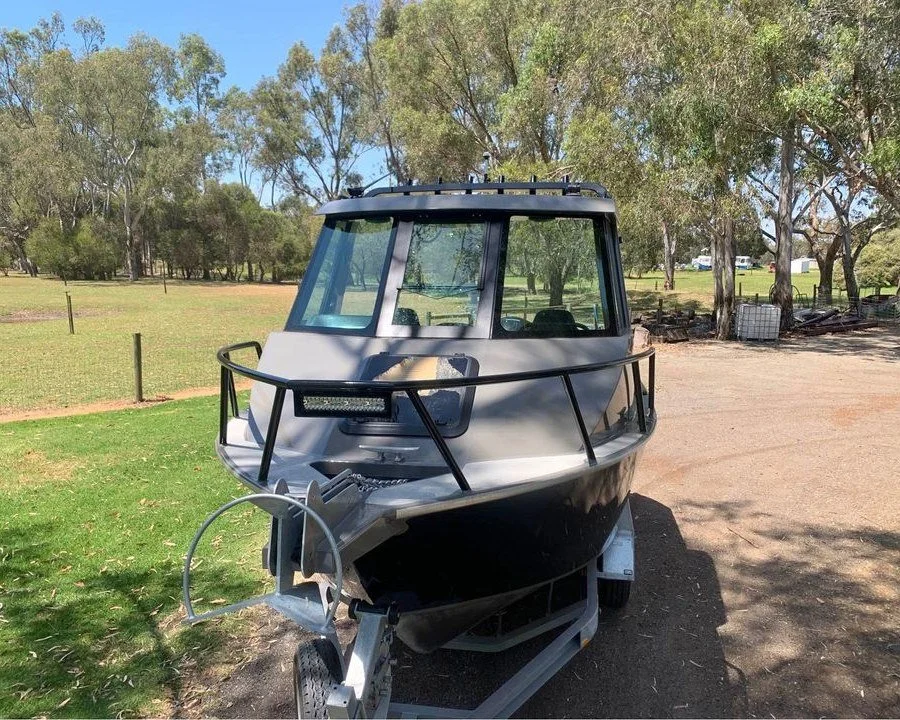

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bow view on the trailer

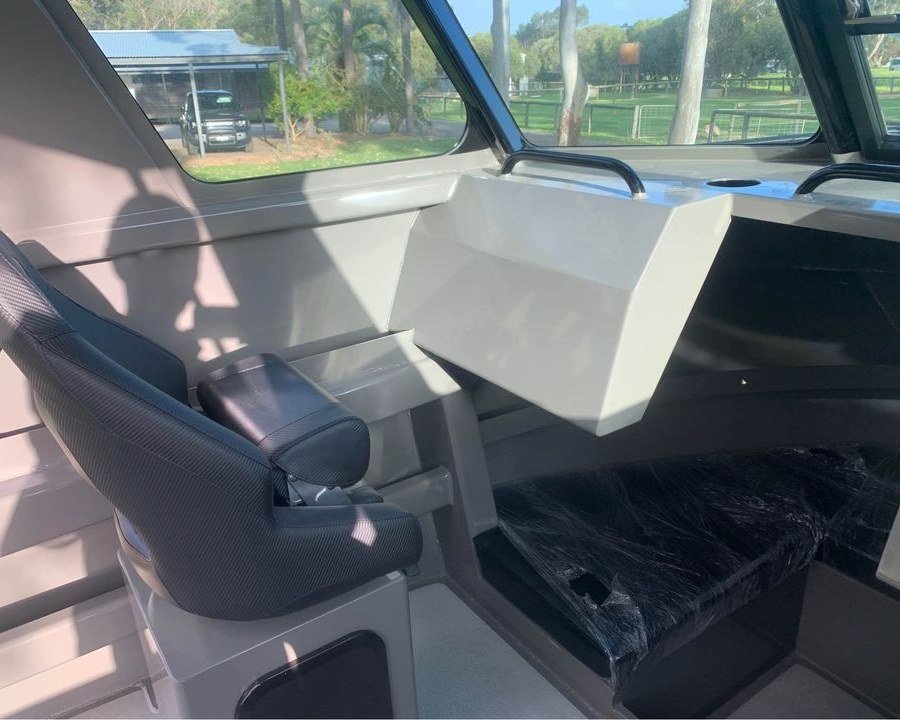

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - cabin interior, port side
Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull and hardtop, port profile

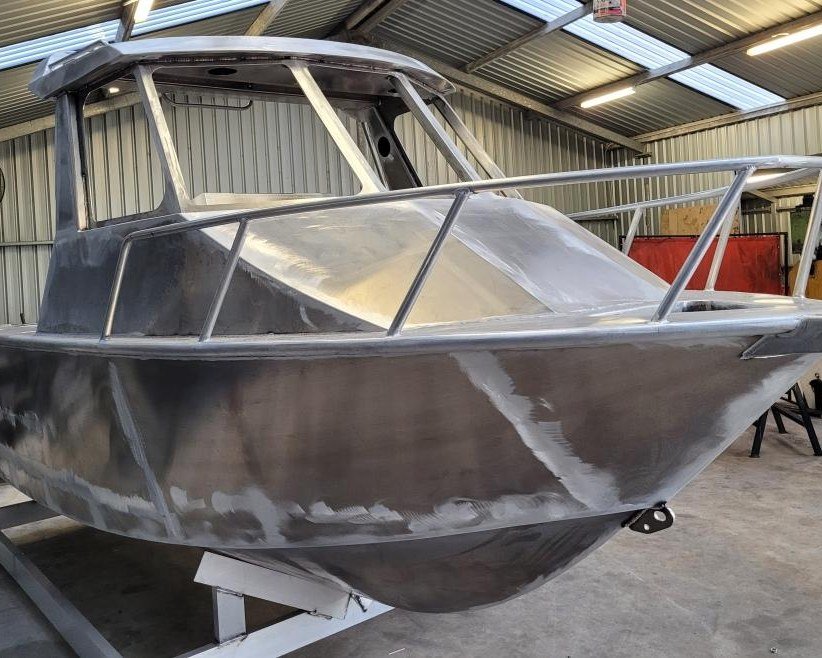

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull under construction, starboard bow quarter

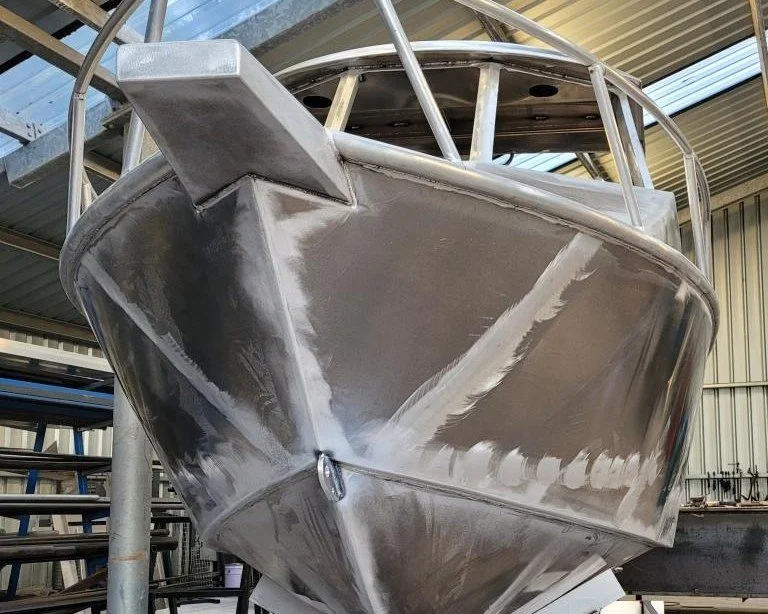

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull from ahead, bow view

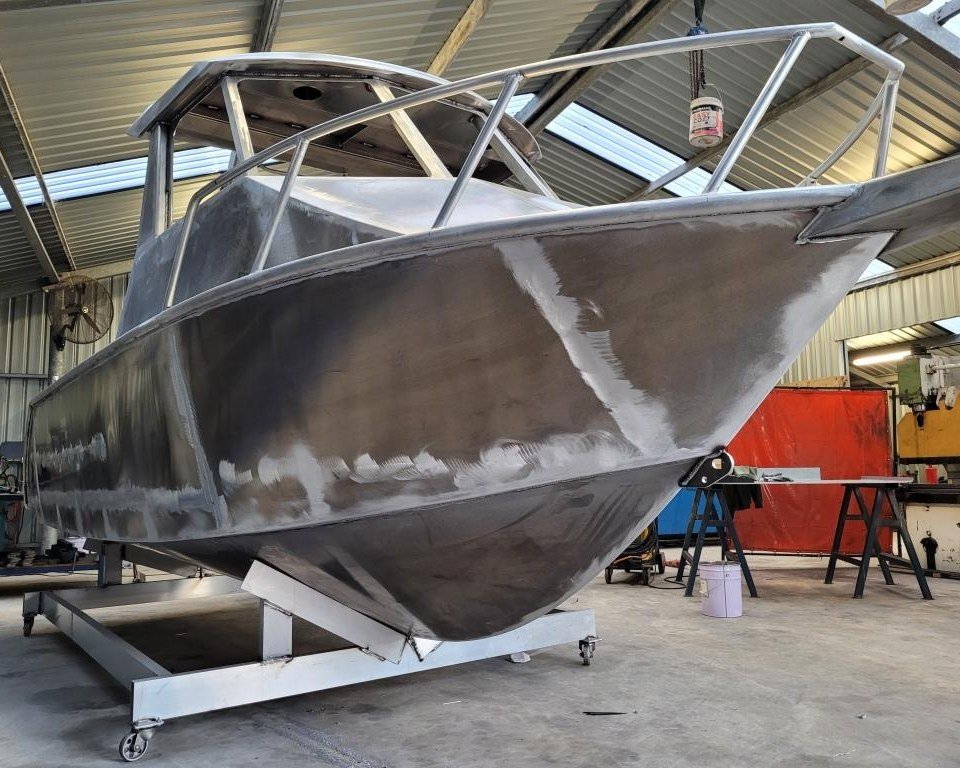

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull and hardtop, bow view

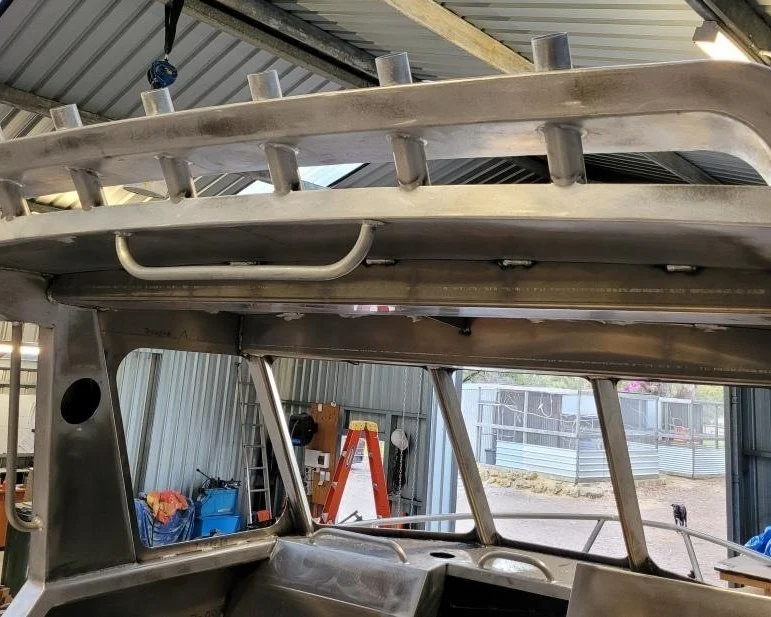

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - hardtop roof framing detail

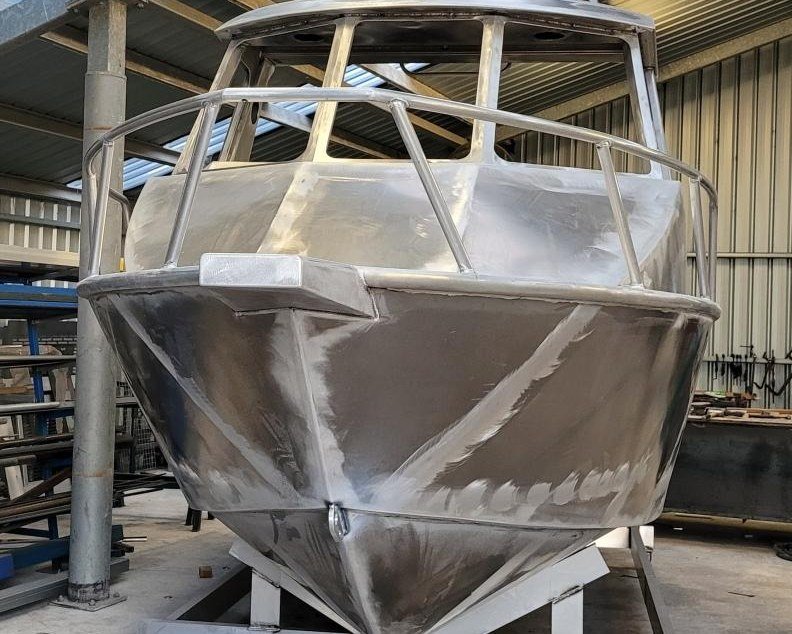

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull under construction, port bow quarter

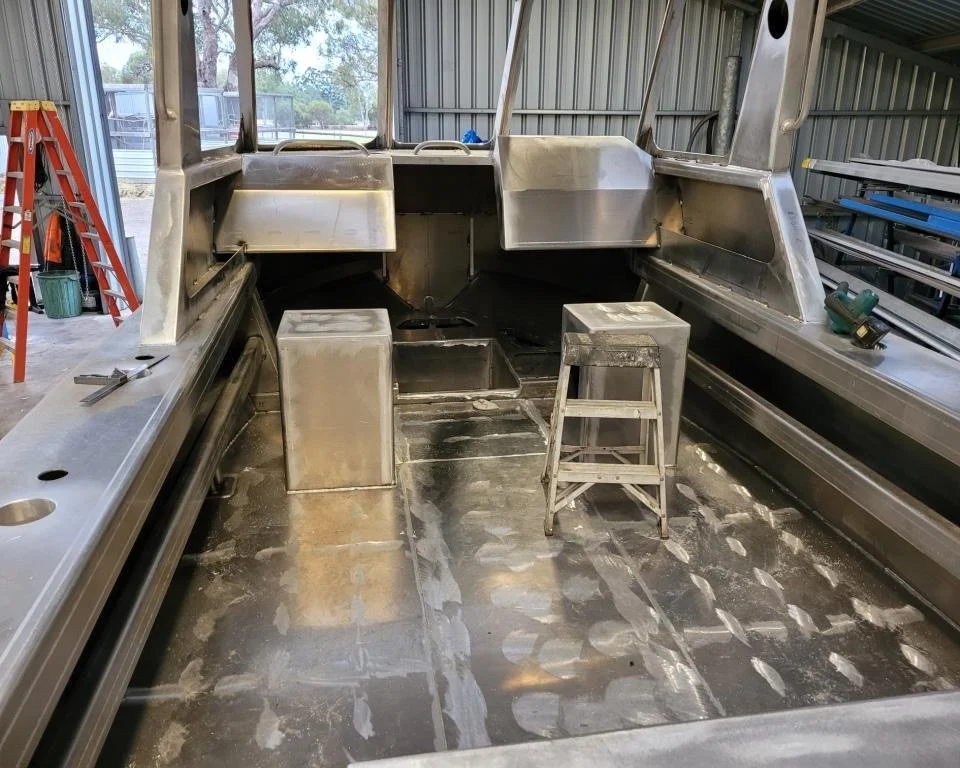

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare cockpit interior looking forward

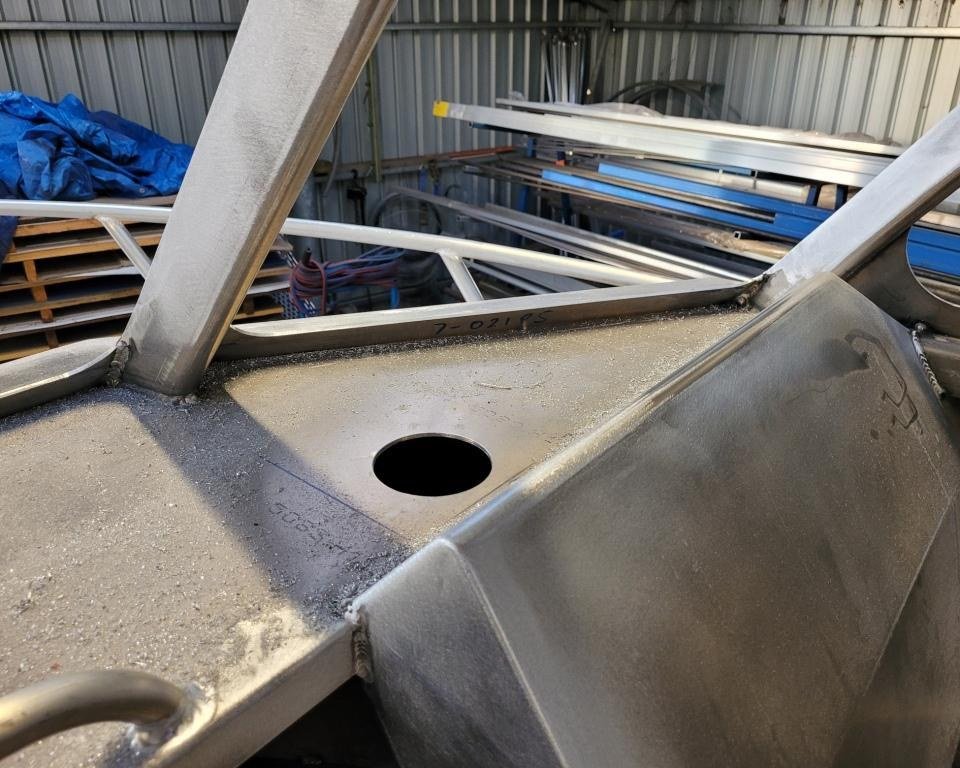

Sherwood Marine 600HT hardtop aluminium monohull boat kit - bare hull dash and window detail

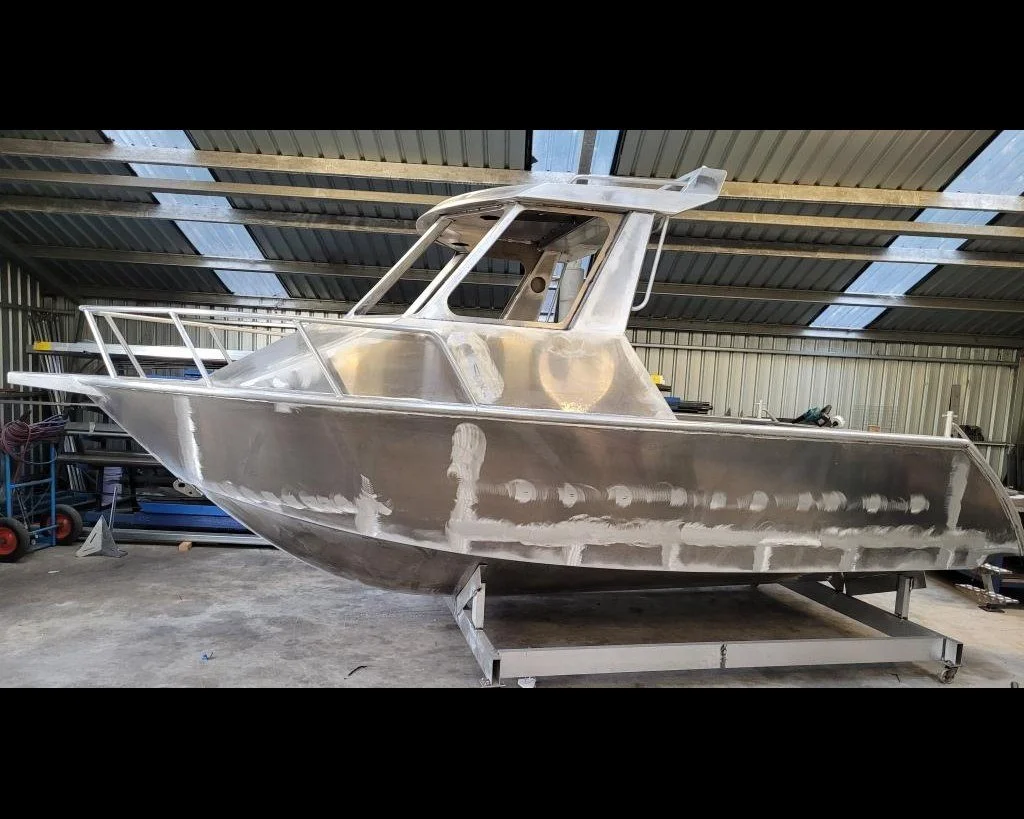

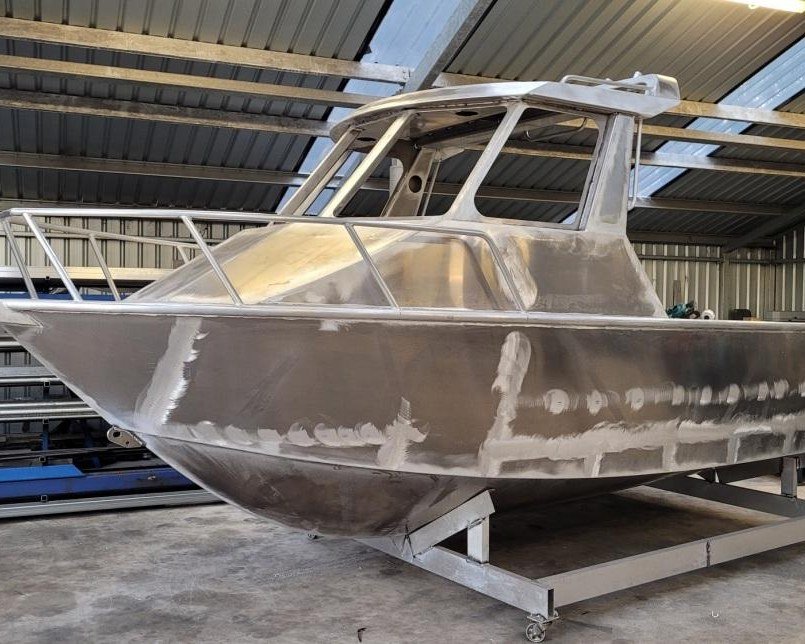

Sherwood Marine 600HT - 6m Hardtop aluminium boat kit - bare hull and hardtop, port profile
