700 Series Specifications
The 700 series with the new raised sheerline is replacing the 680 series.
| Item | Value |
|---|---|
| Kit Prices Excl. GST | |
| Hardtop | $25,450 |
| Cuddy | $24,650 |
| Centre Cab | $26,640 |
| Centre Console | $23,750 |
| Length Hull | 6.97 m |
| Length Overall | 7.23 m |
| Beam | 2.50 m |
| Cockpit Depth Min | 0.73 m |
| Max Power | 1 x 300 hp |
| Max Weight | 295 kg |
| Recommended Power | 200-250 hp |
| Twin OB Option | 2 x 100-140 hp |
| Max Weight (Twin) | 2 x 190 kg |
| Effective Deadrise at CG | 21 deg |
| Fuel Tank | 360 litres |
| Person Capacity | 6 |
| Deck Drainage | Self-draining |
| Plate Thickness | |
| Bottom | 6 mm |
| Sides | 4 mm |
| Decks | 3 mm |
| Cabin | 3 & 4 mm |
The 700 series is a 7.0m plate aluminium boat kit and the smallest (to date) in the Sherwood Marine range with a centre cab / walk-around option. Four models share the hull: the 700CC centre console at $23,750 excluding GST, the 700CD cuddy cab at $24,650, the 700HT hardtop at $25,450 and the 700CCB centre cab at $26,640.
The 700 series replaces the 680 series. The 700 series carries a new raised sheerline forward, which gives a distinctive look and just a little more freeboard. The existing 680 has an excellent reputation as an allround sea-boat and rough water performer, so everything else carries on unchanged.
The hull is 6.97 m long, 7.23 m overall, on a 2.50 m beam, with 6 mm bottom plate, 4 mm sides, 3 mm decks and 3 and 4 mm cabin. Fuel capacity is 360 litres, person capacity is six, cockpit depth increases to 0.73 m and the deck is self-draining. Maximum single-engine power is 300 hp with 200 to 250 hp recommended, or twin outboards of 100 to 140 hp each.
Worth highlighting is that all our twin and single engine boats get their own specific transom shape, designed for optimum overall balance and running trim. The weigh differences are significant, and a ‘one size fits all’ transom is too big a compromise in our book.
Against the 655, the 700 has a significant step up in fuel capacity, longer v-berth cabin (full length for kids, stretch out with an extra cushion for adults), and a little more deadrise. Against the 750 series, the 700 gives up cockpit length, 40-120 litres of fuel, and the enclosed cab option.

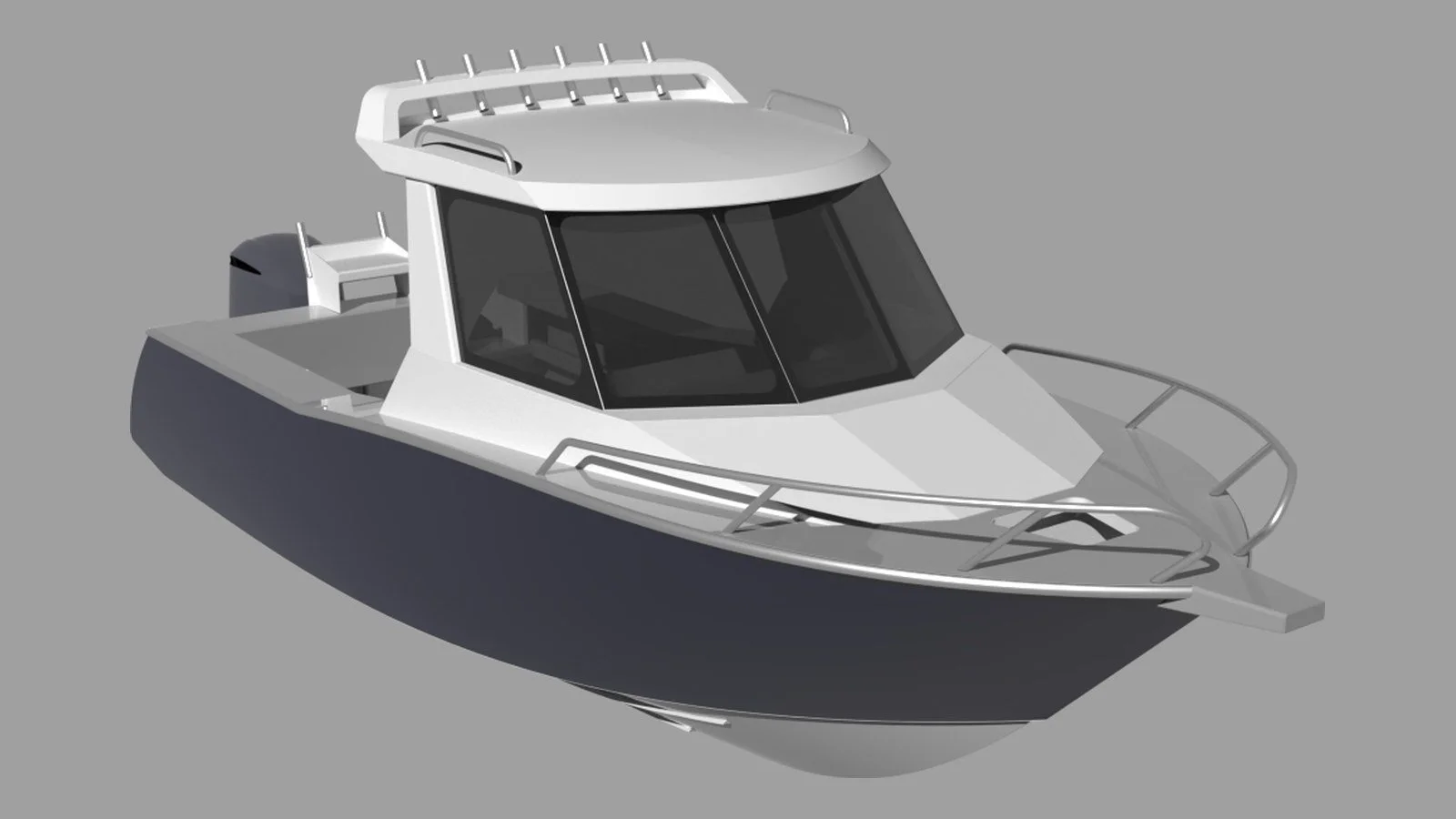

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - bow quarter

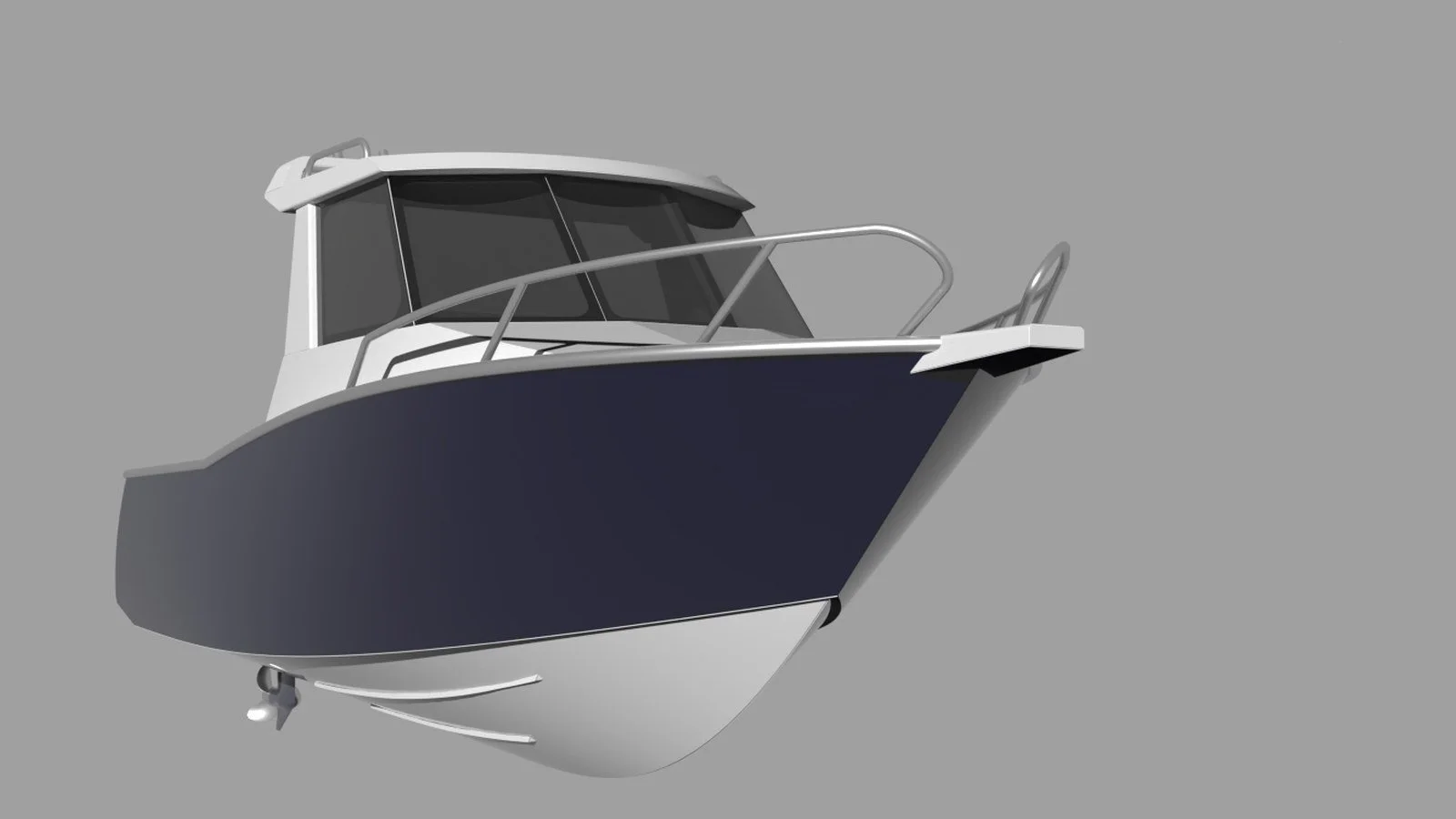

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - bow quarter below

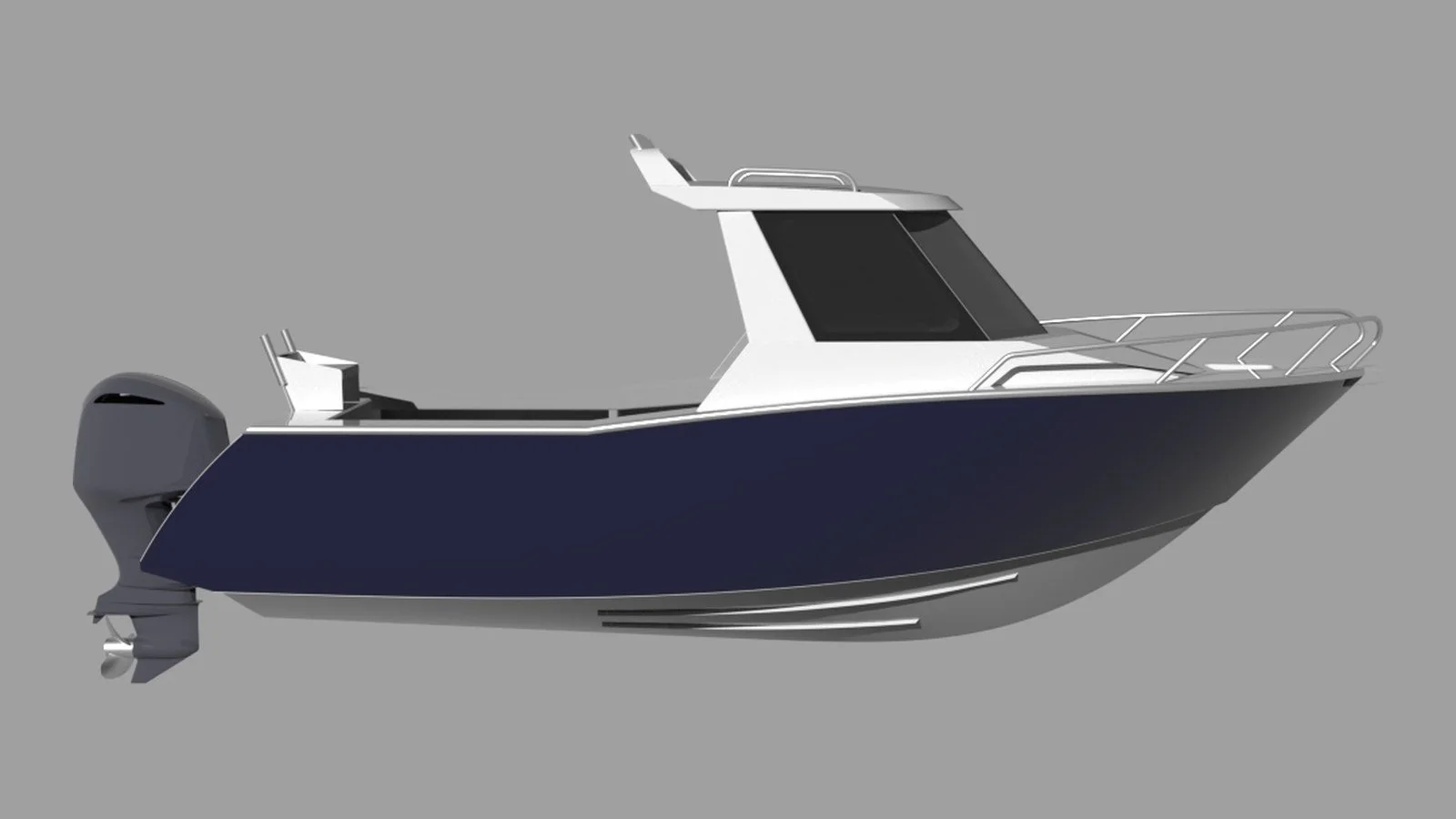

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - profile

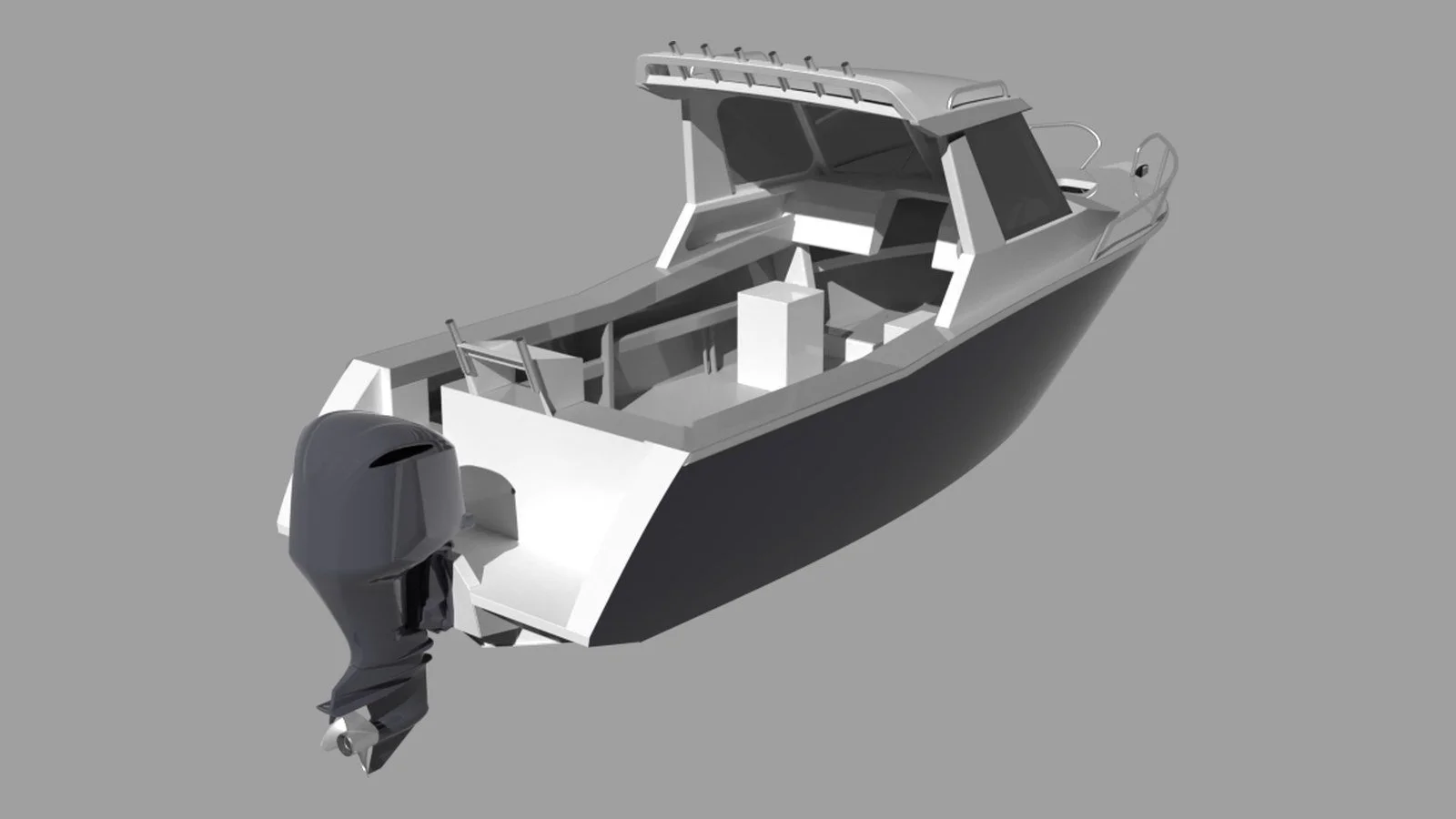

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - stern quarter

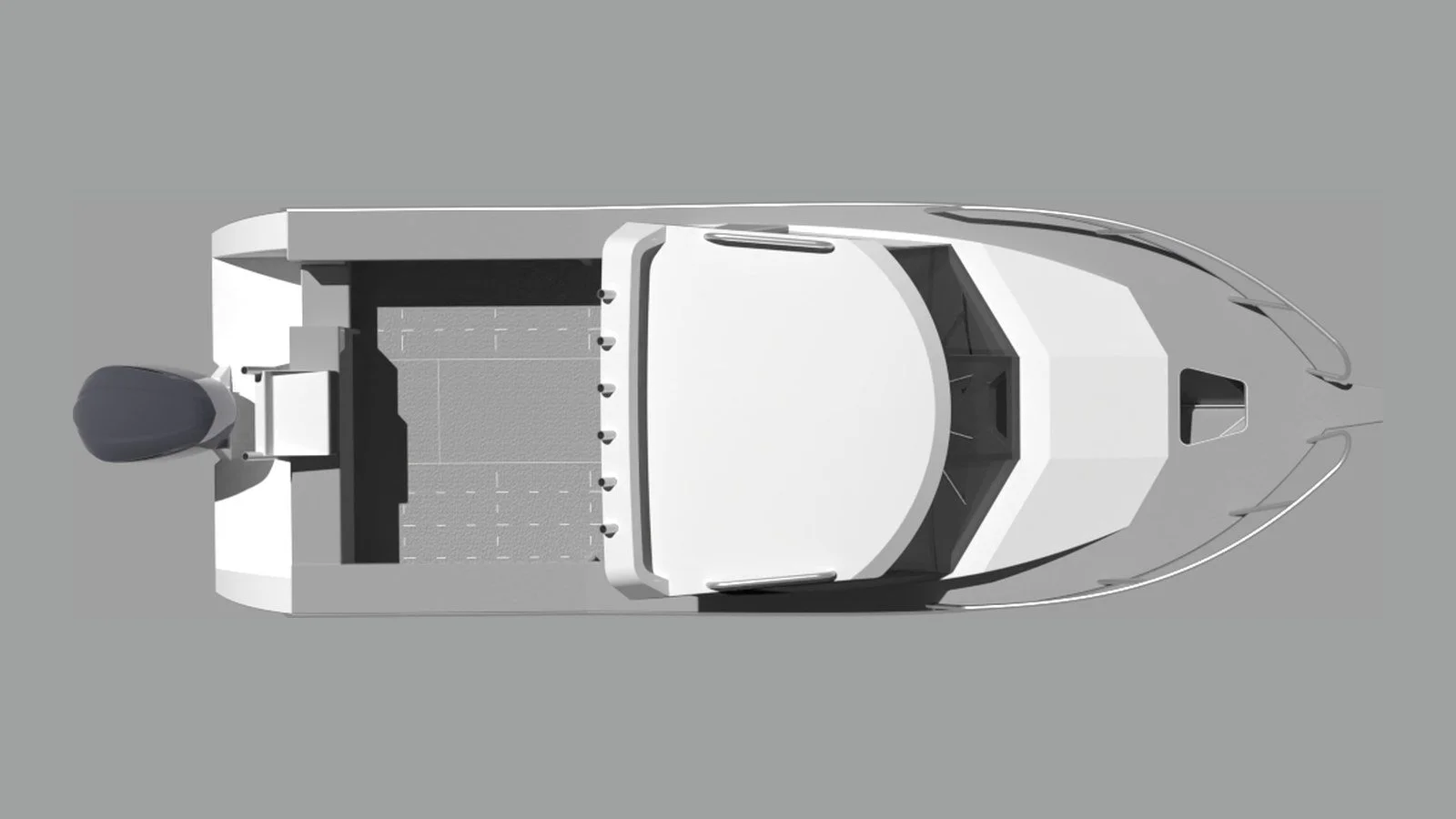

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - plan

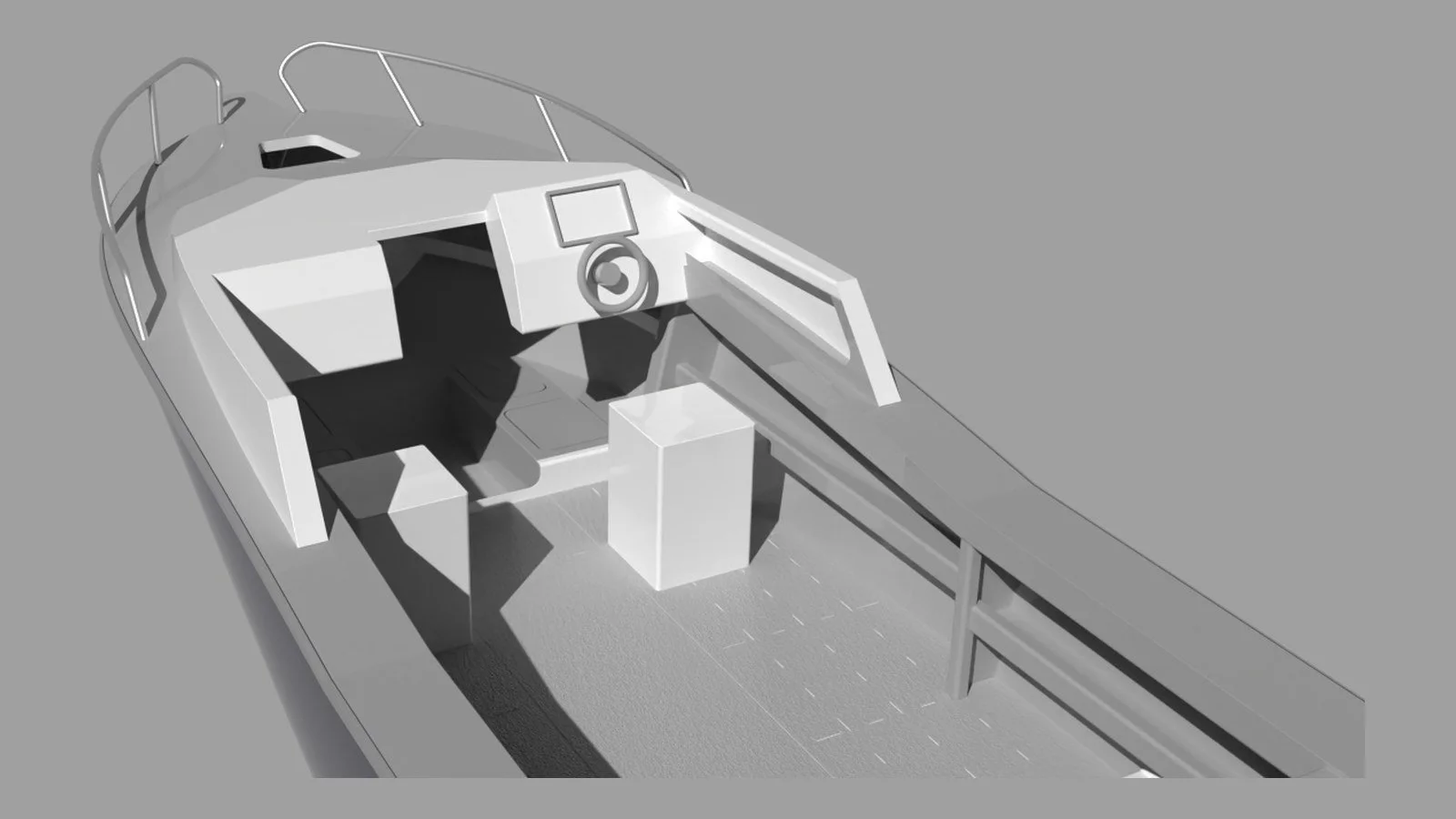

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - cabin

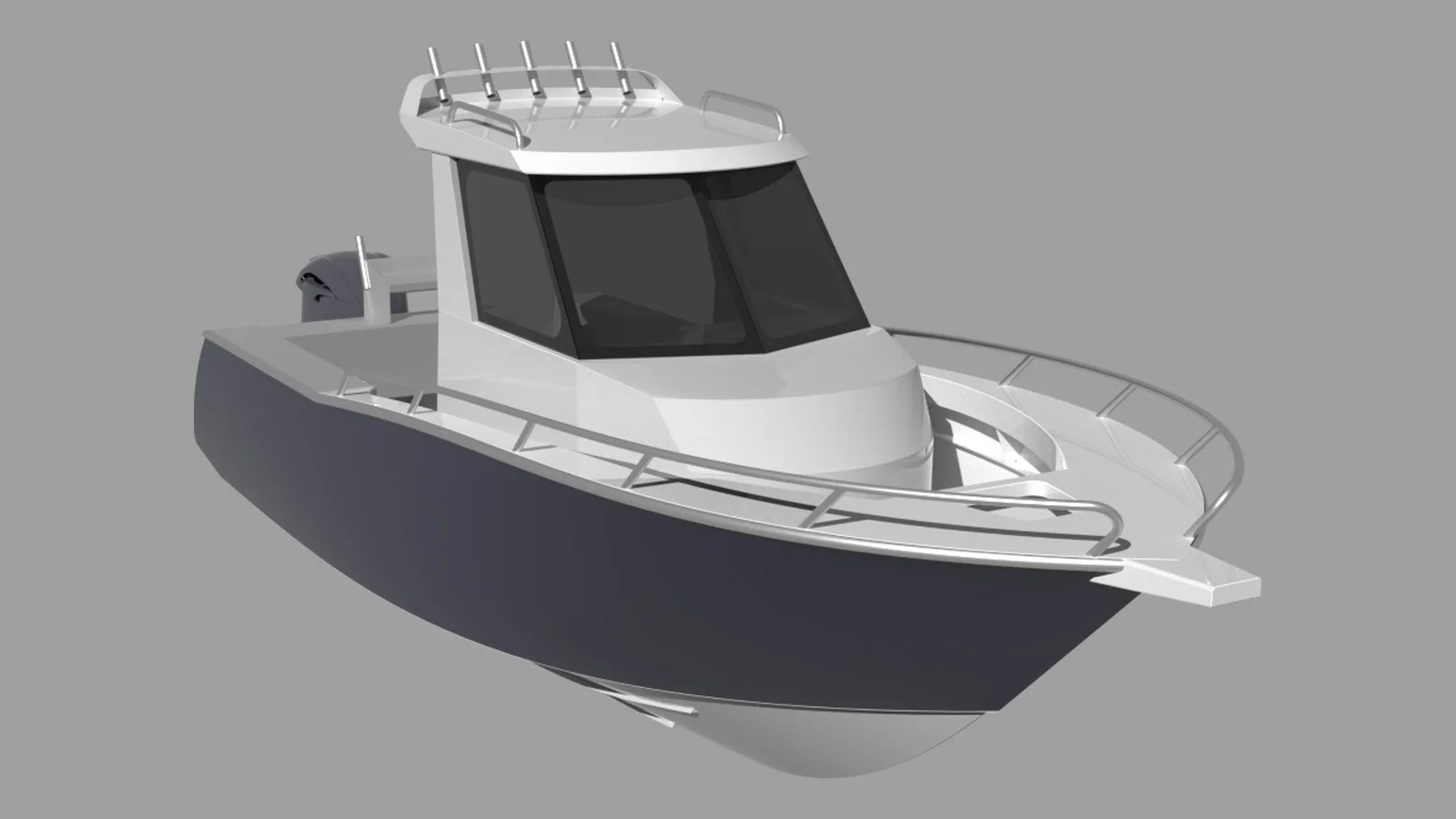

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - bow quarter

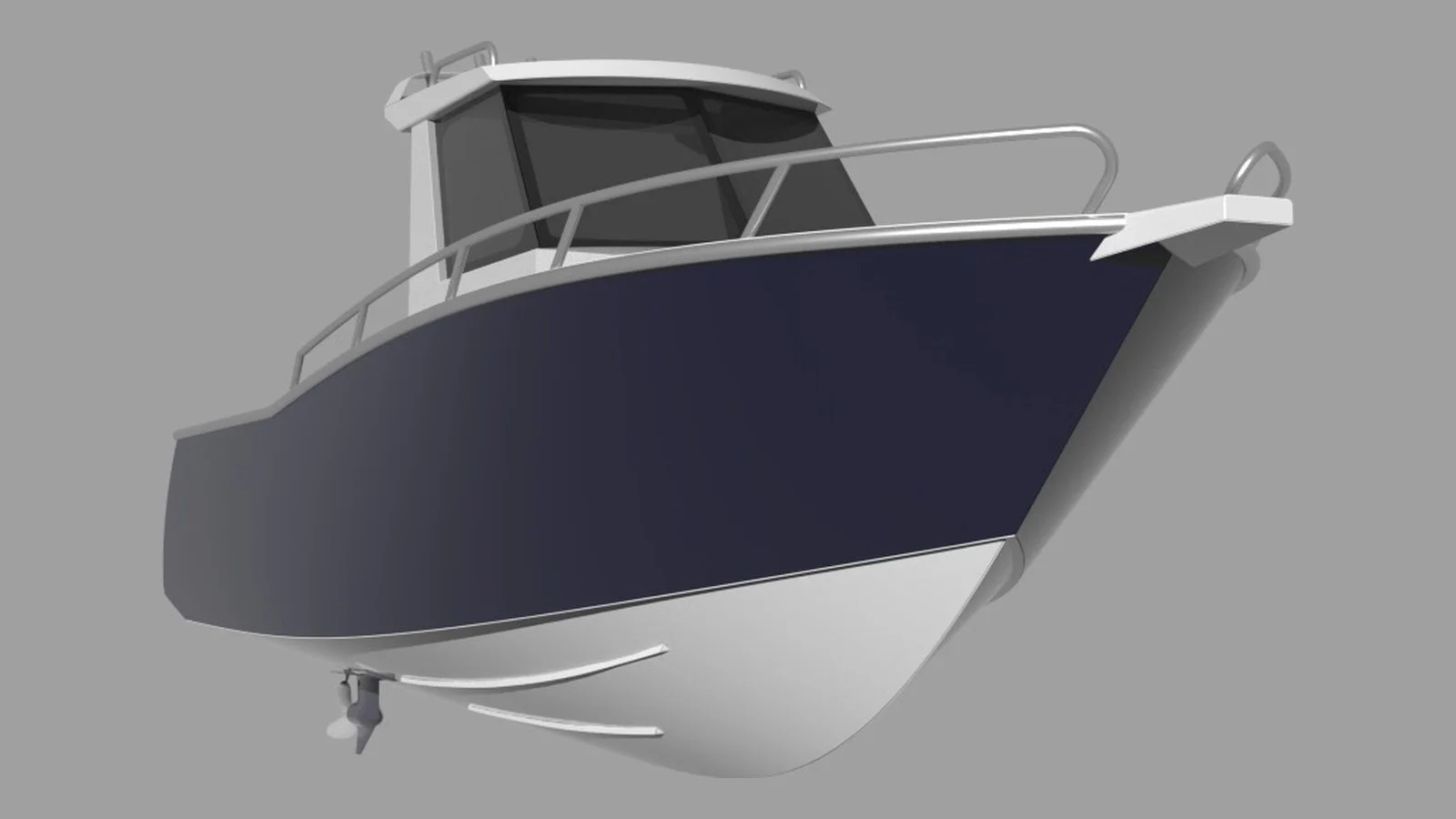

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - bow quarter below

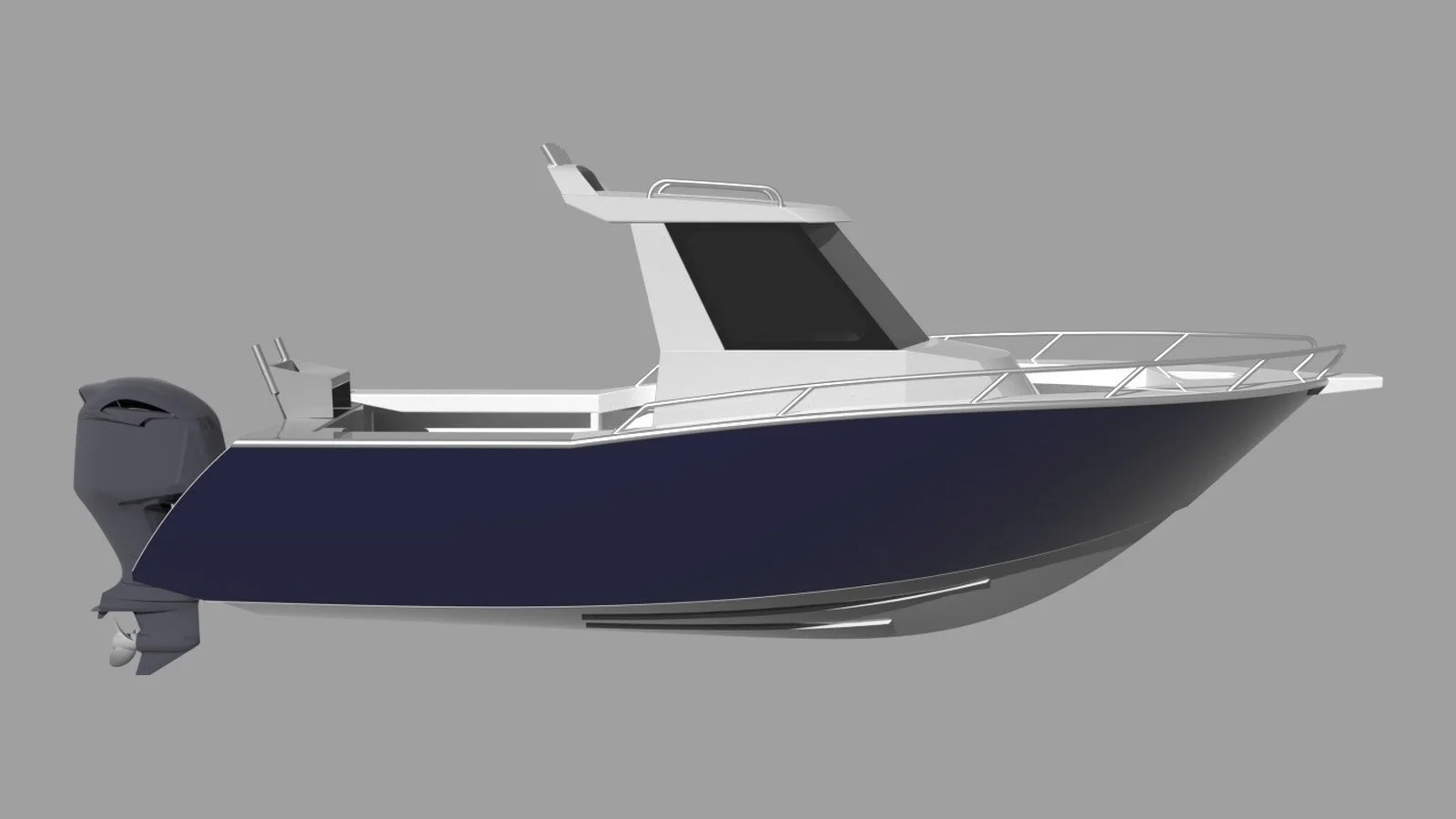

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - profile

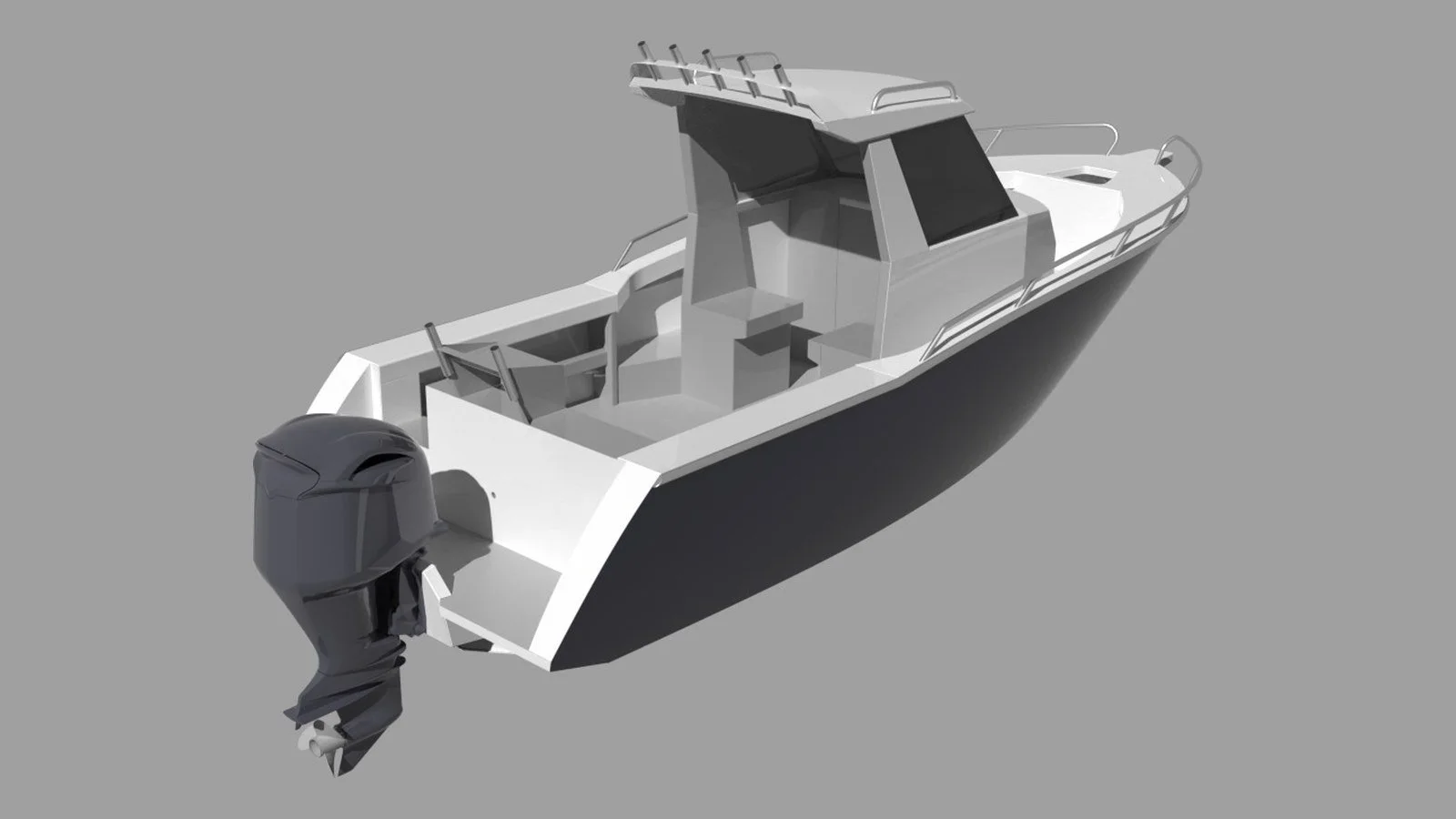

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - stern quarter

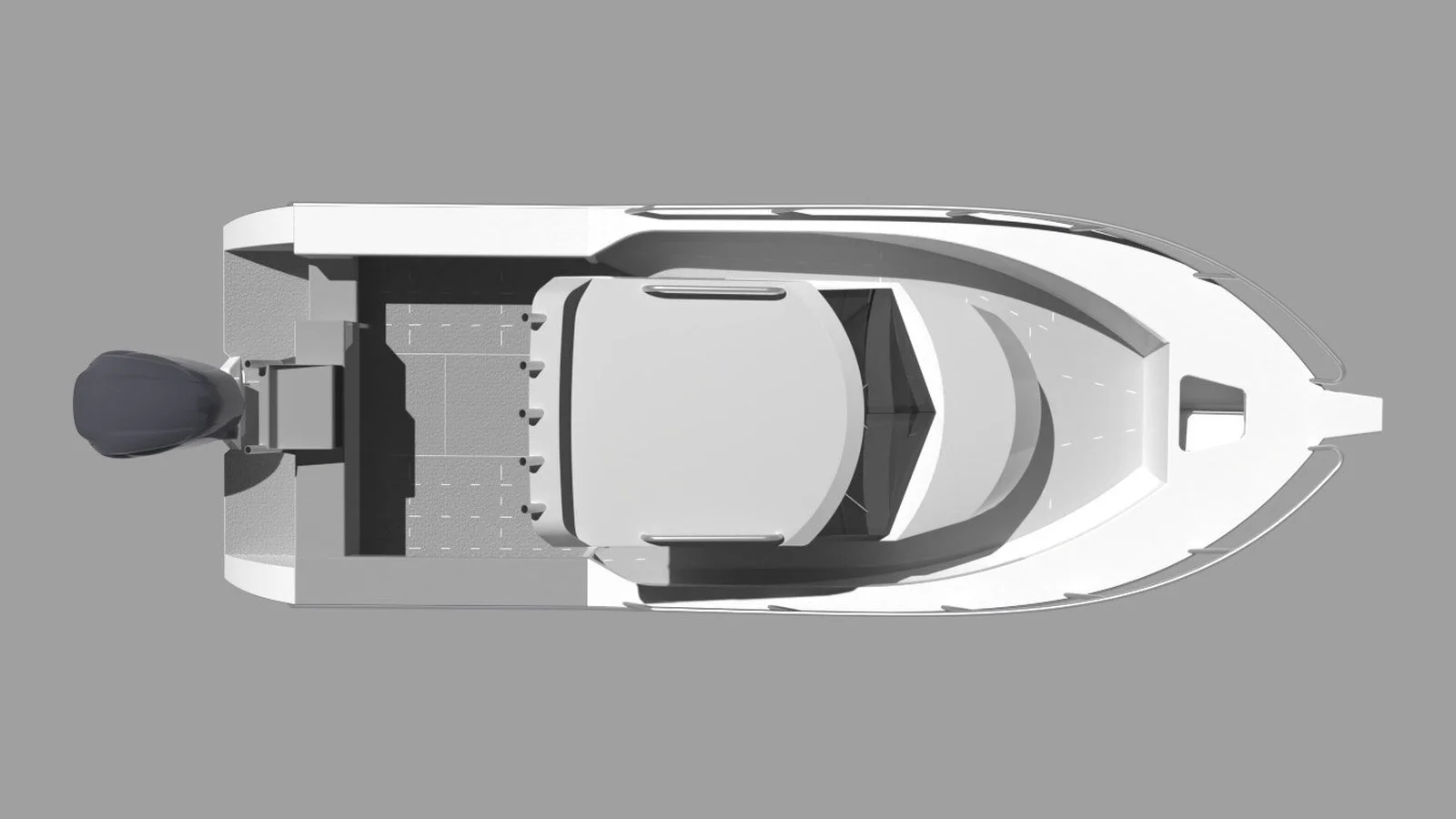

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - plan

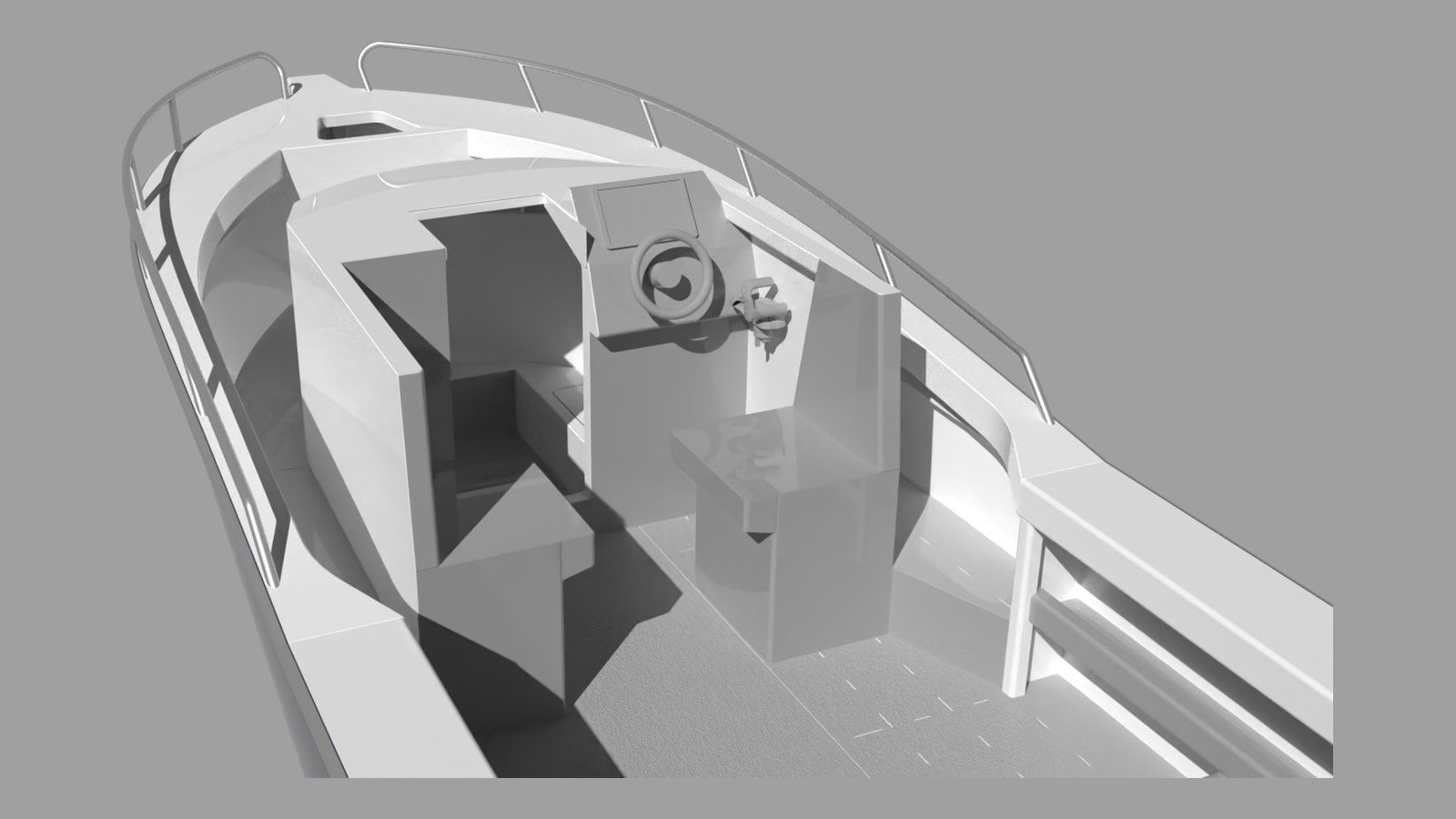

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - cabin

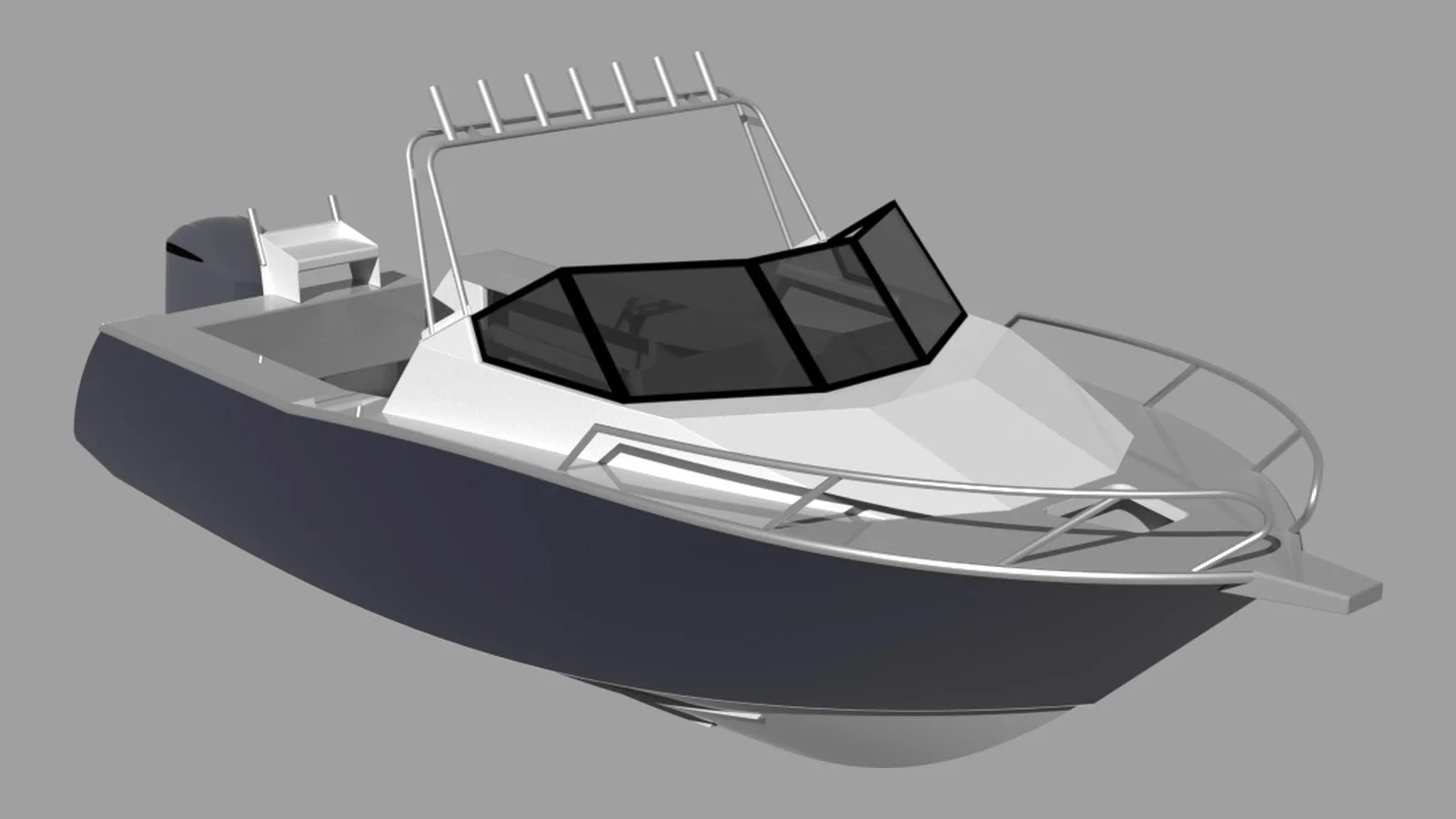

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - bow quarter

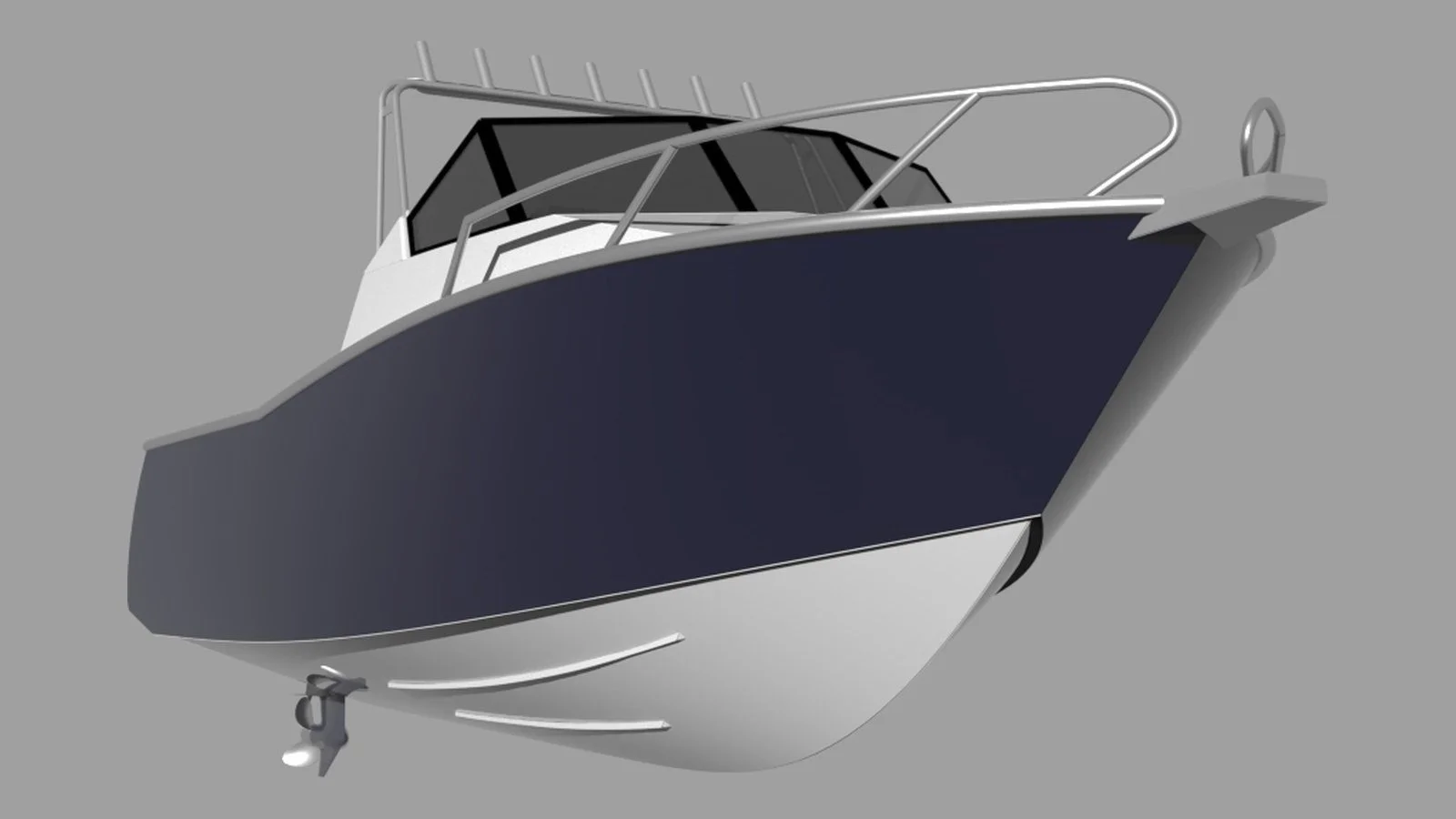

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - bow quarter below

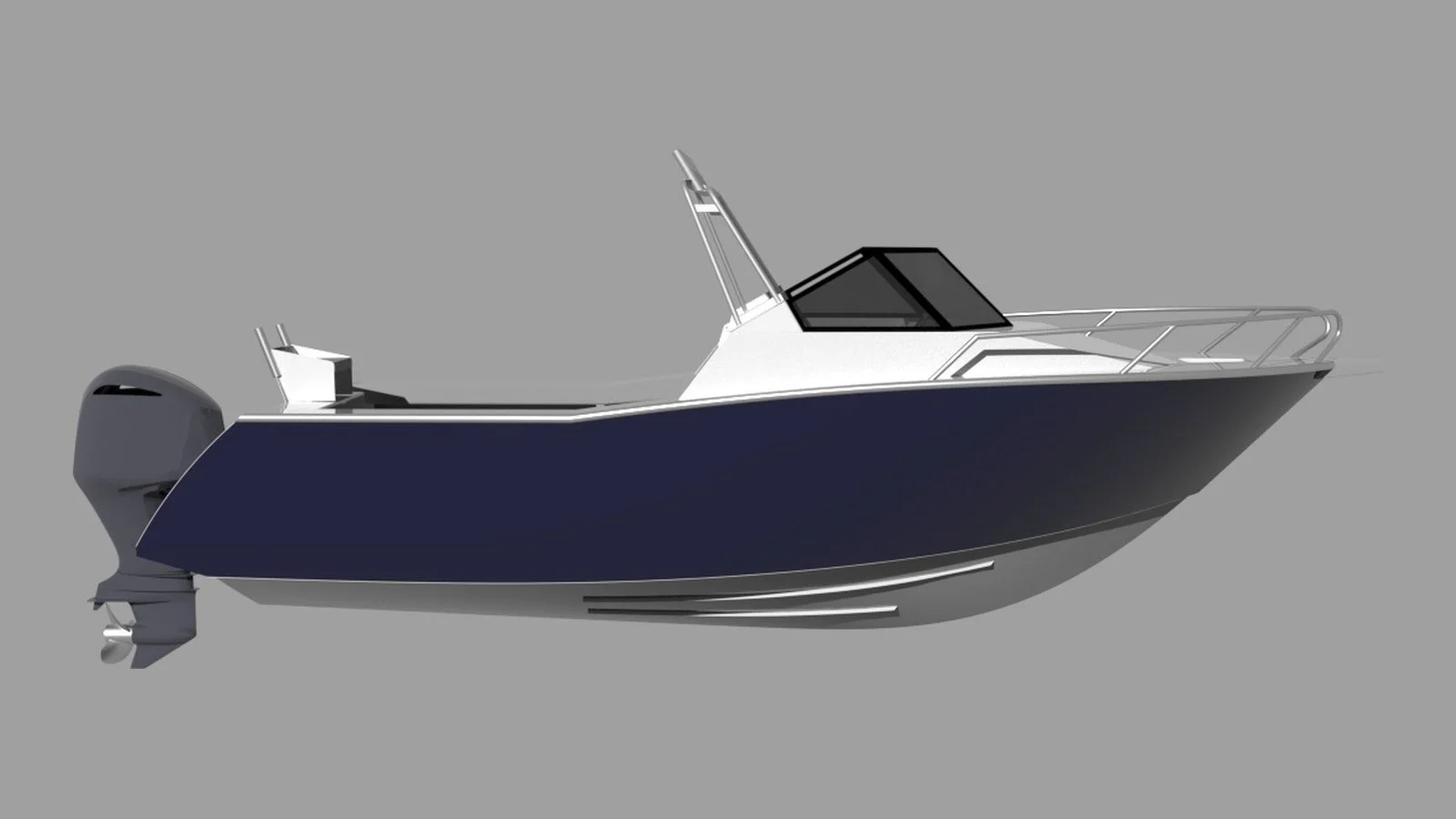

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - profile

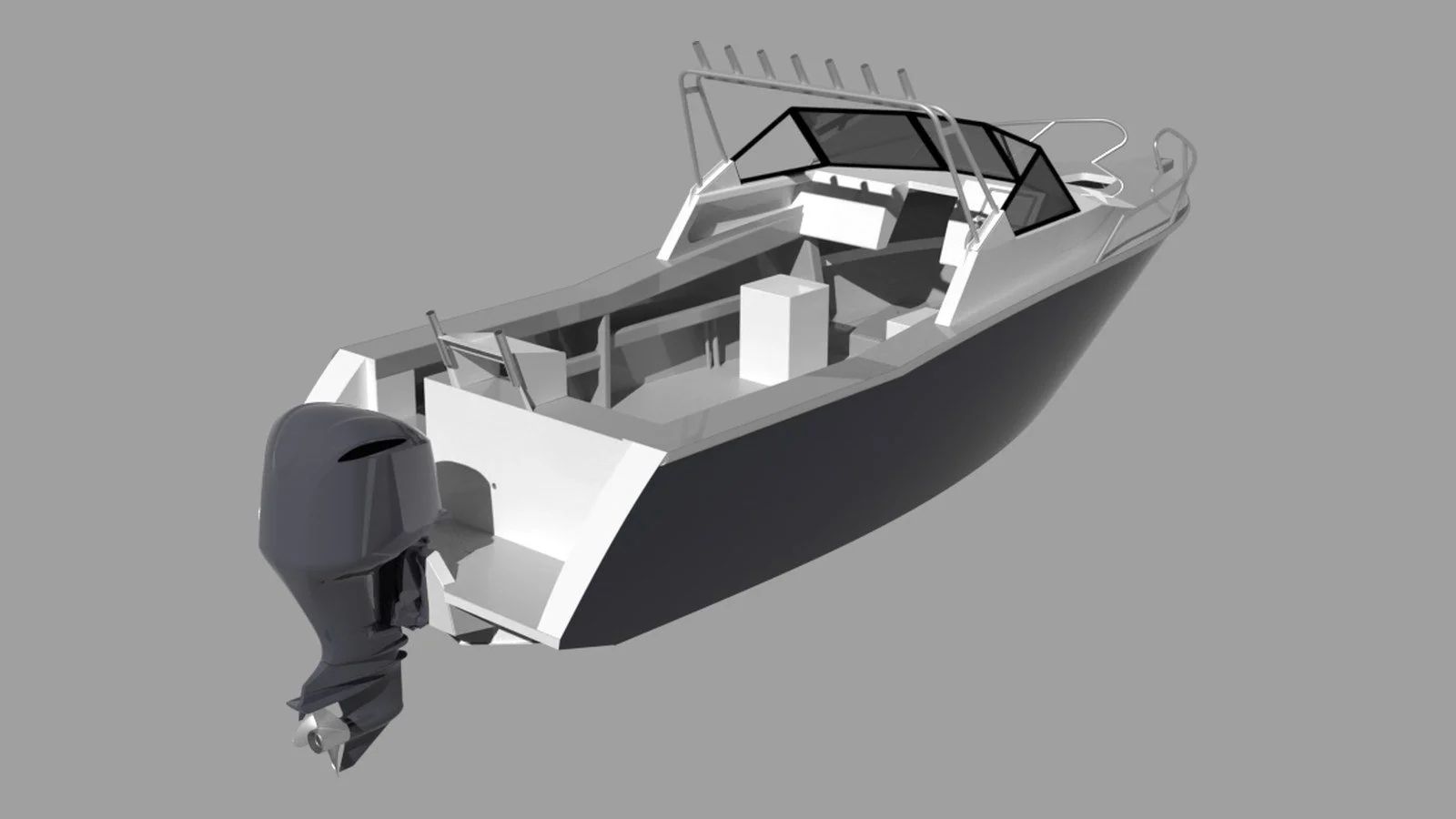

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - stern quarter

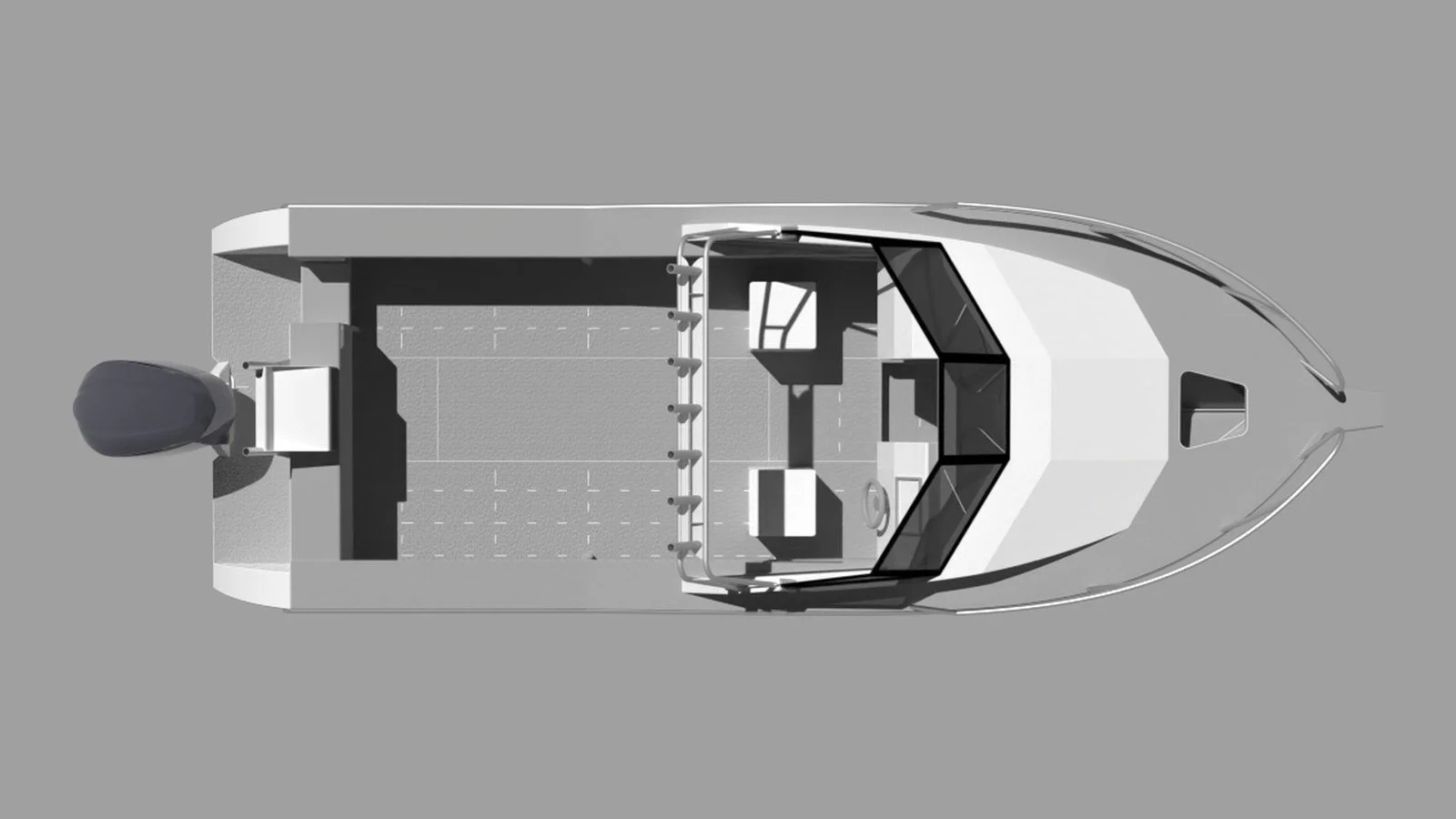

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - plan

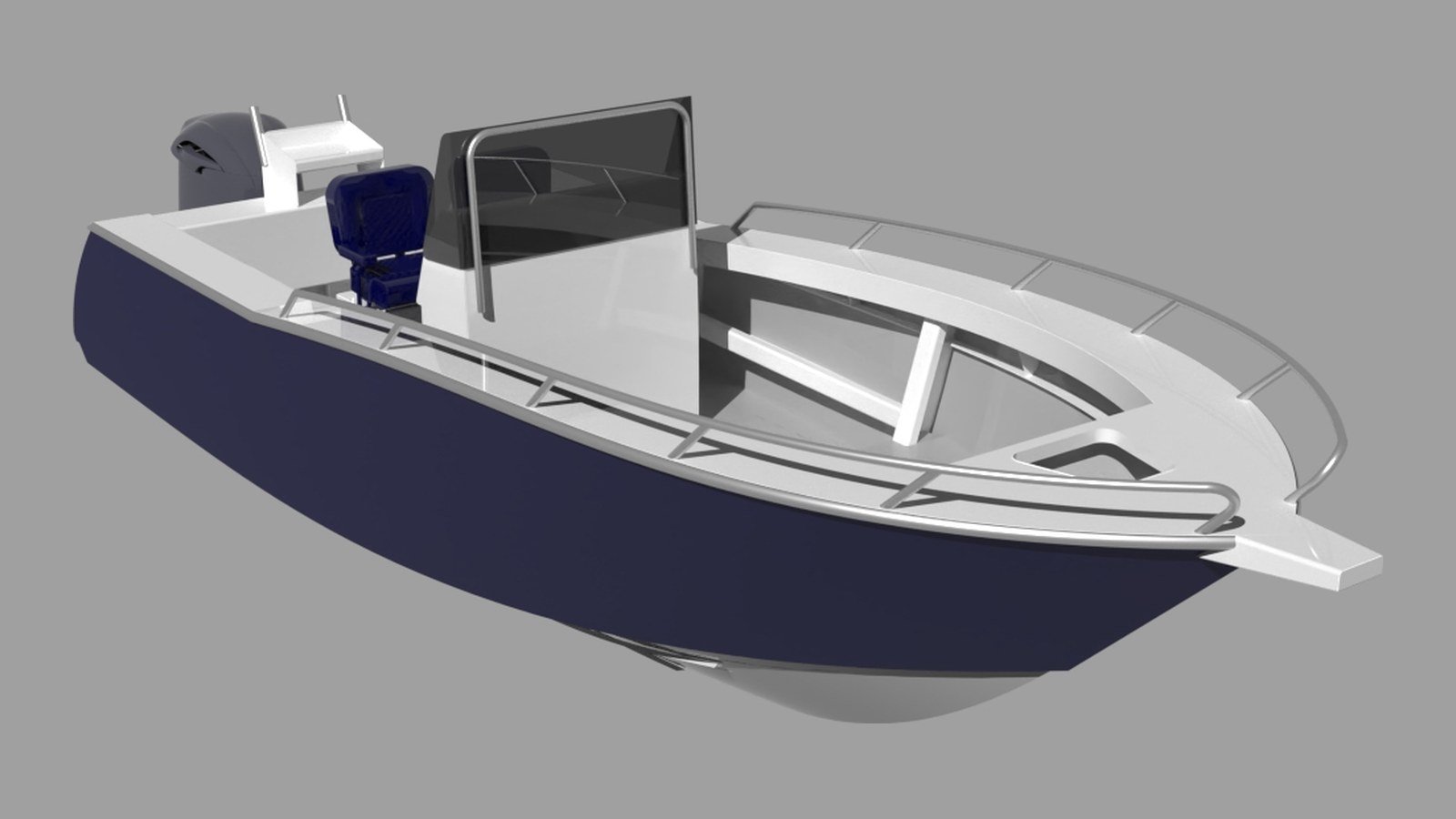

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - bow quarter

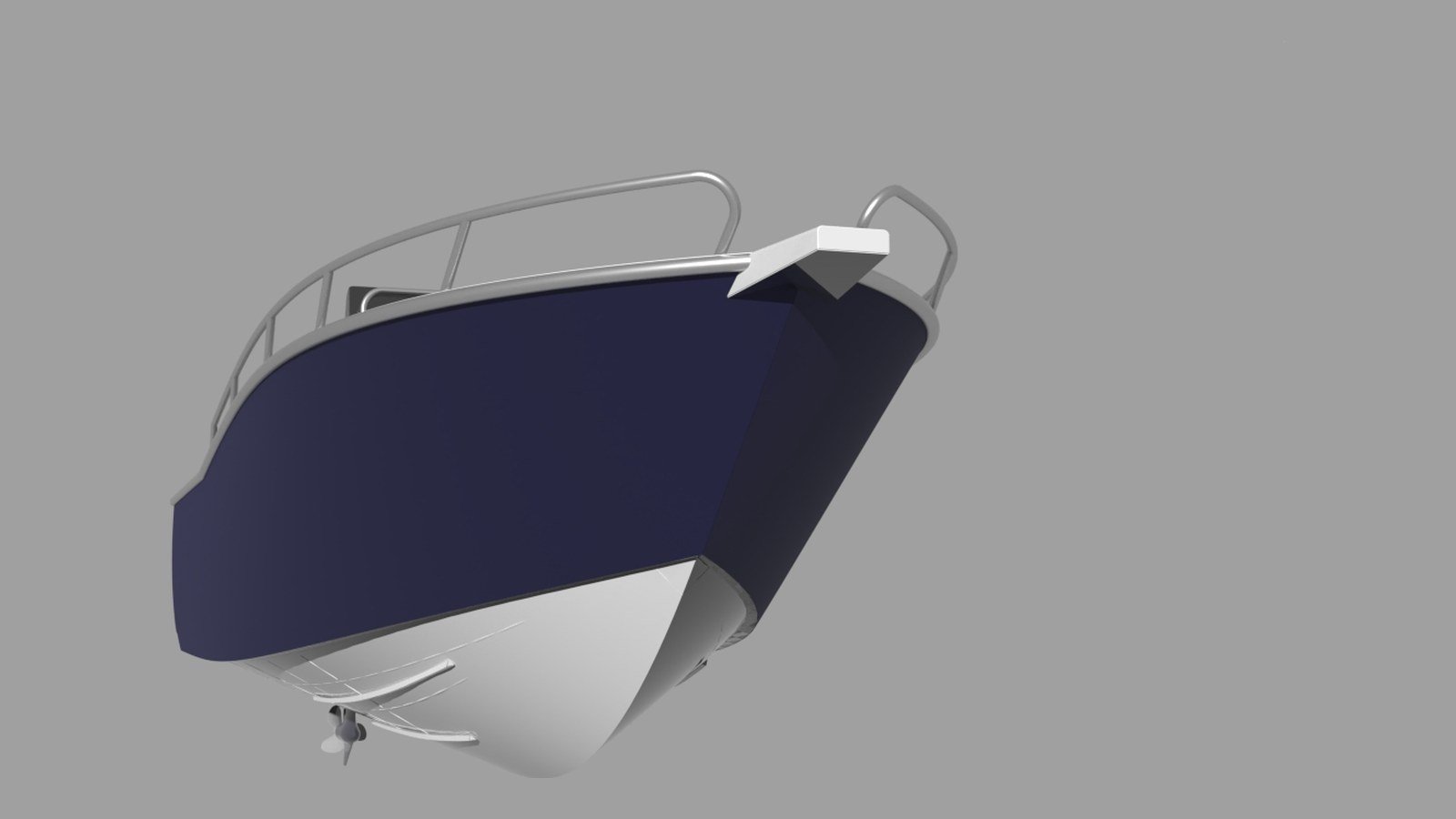

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - bow quarter below

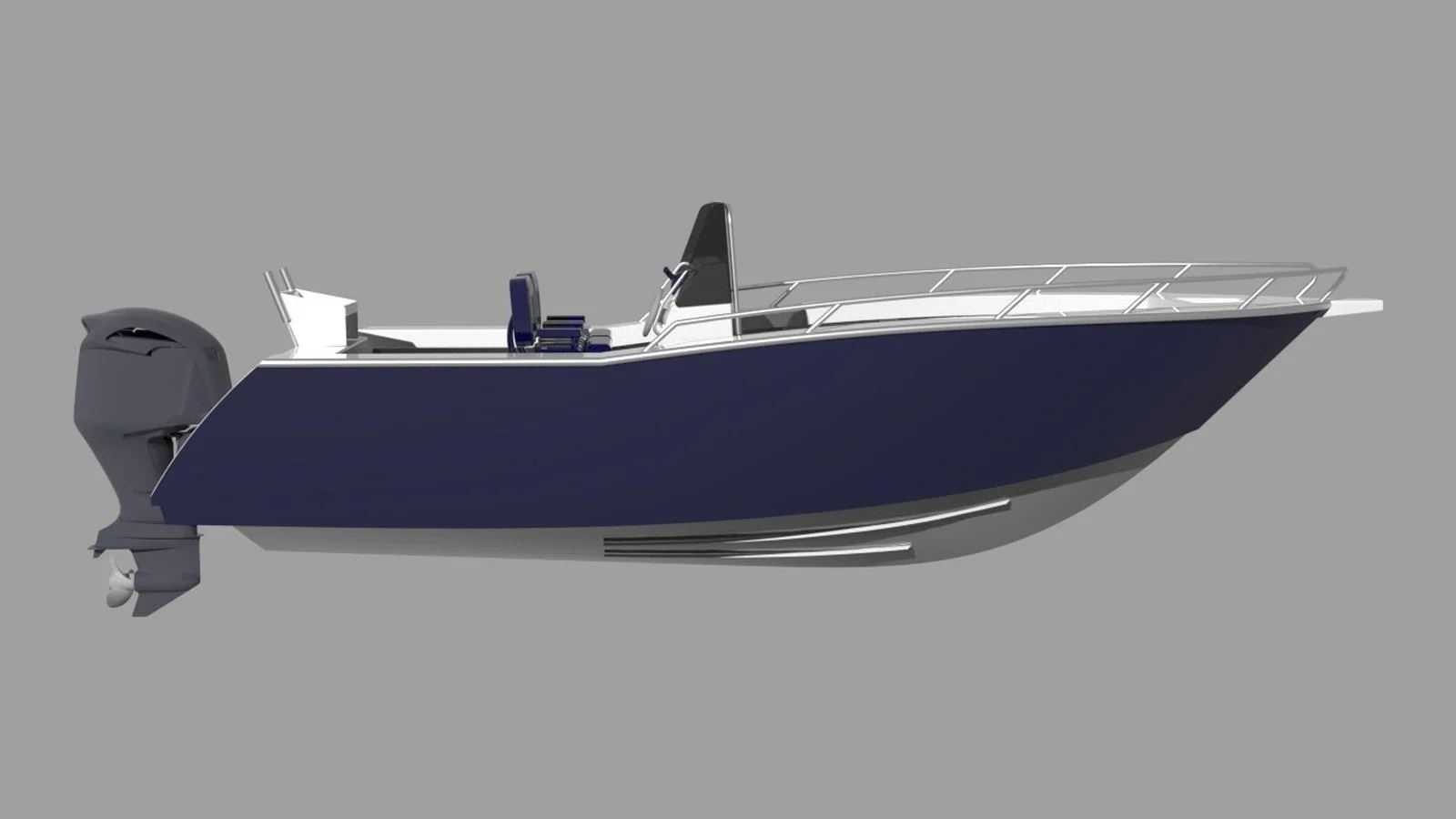

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - profile

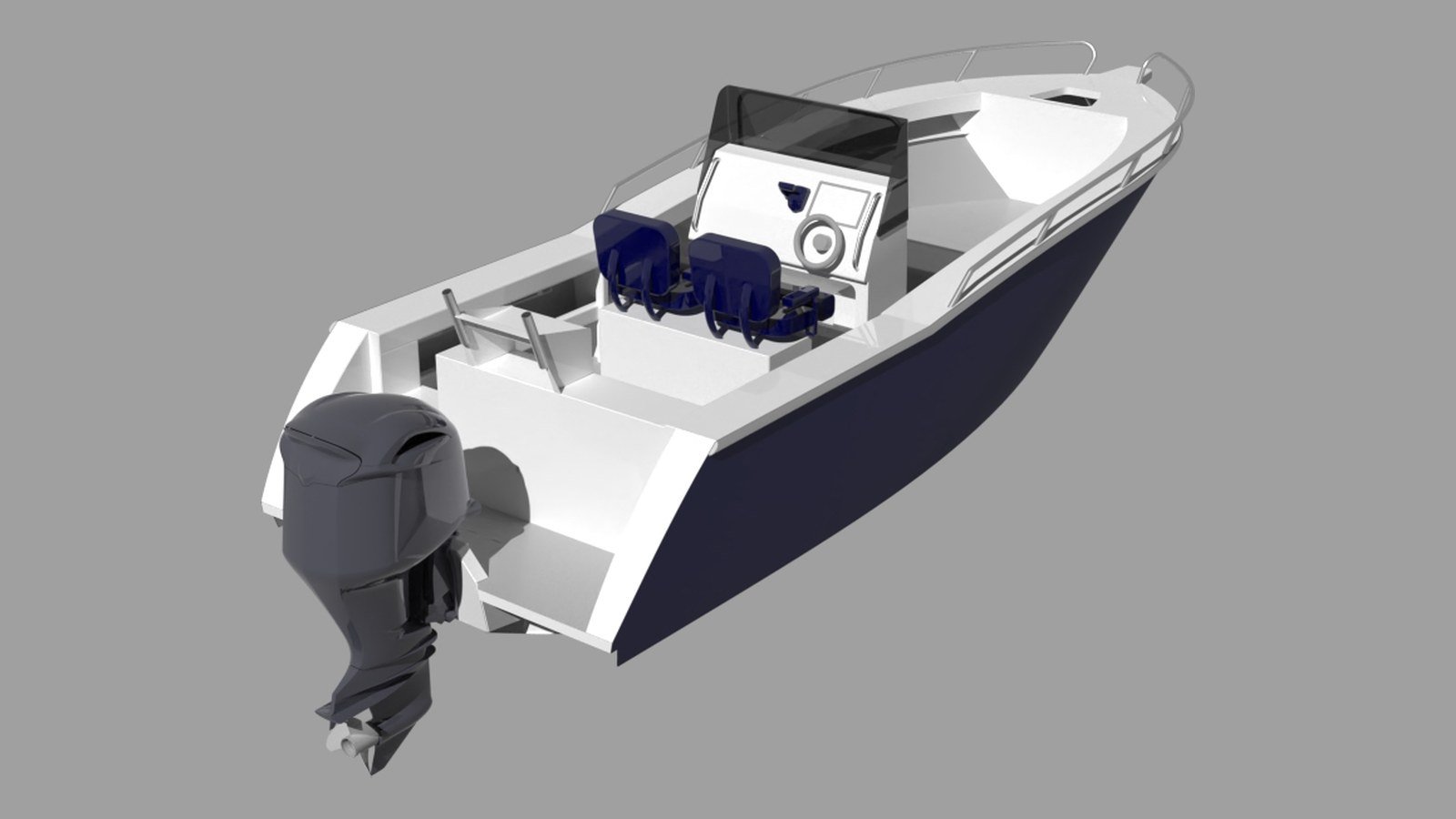

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - stern quarter

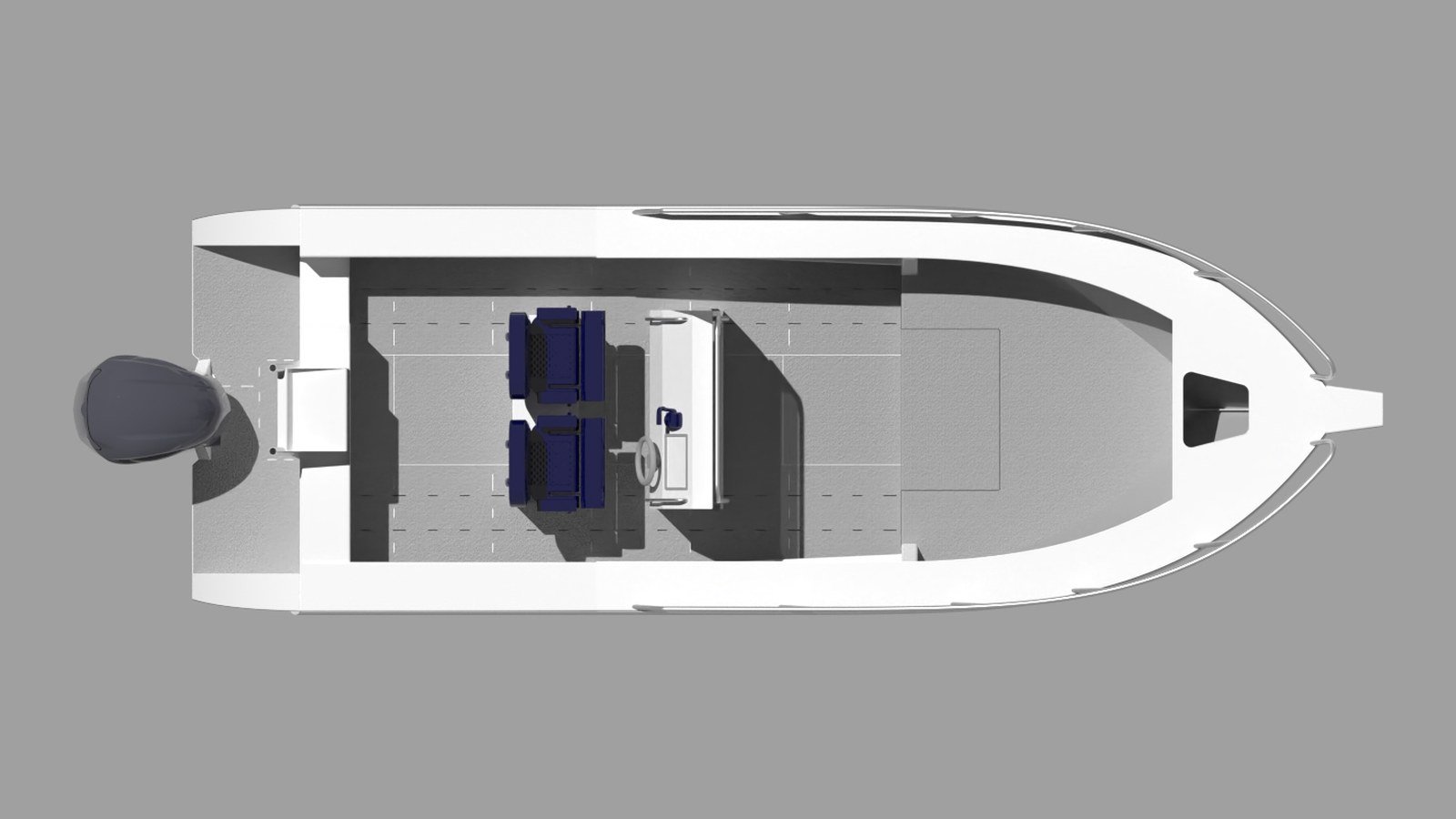

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - plan

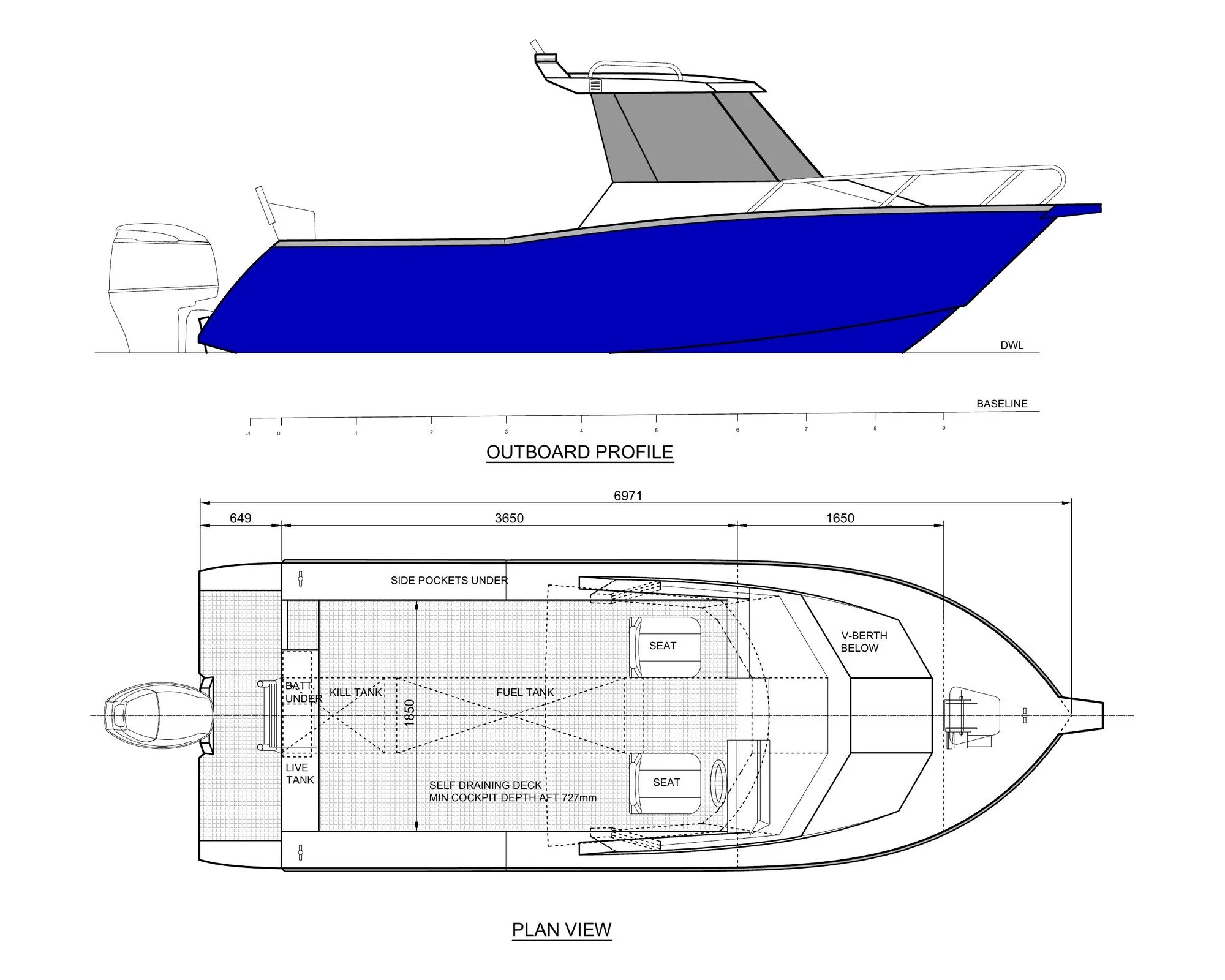

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - GA

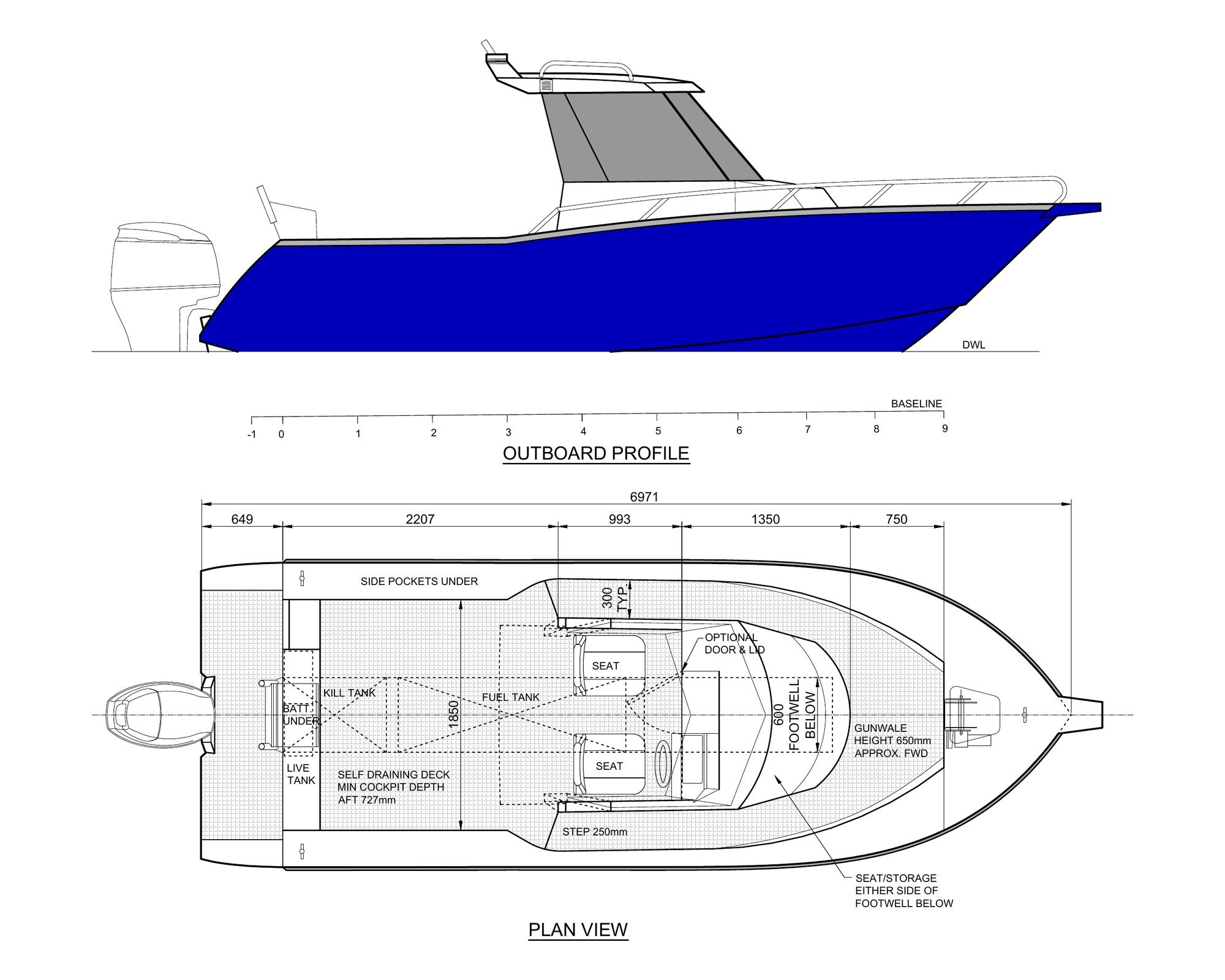

Sherwood Marine 700CCB - 7m Centre Cab aluminium boat kit - GA

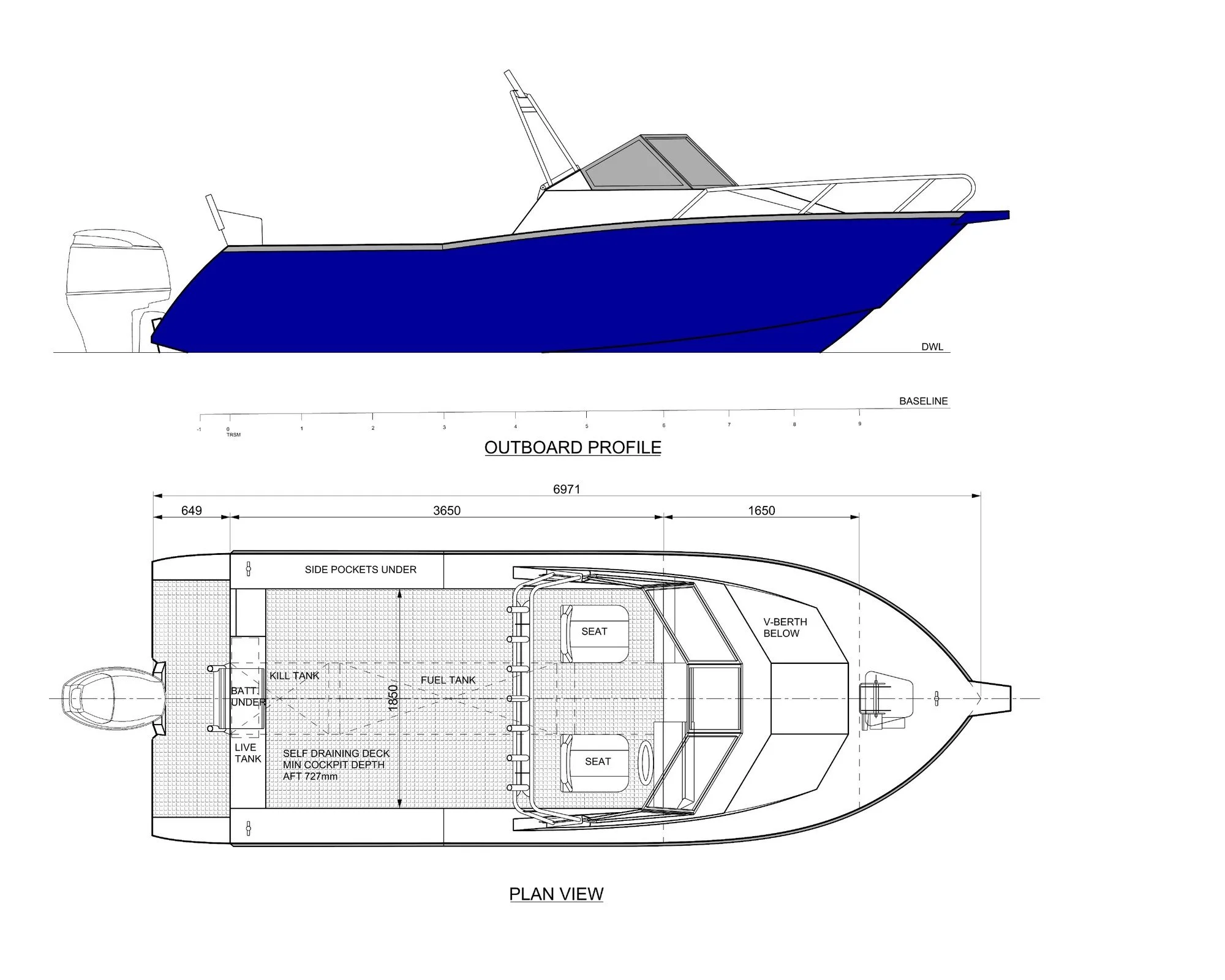

Sherwood Marine 700CD - 7m Cuddy aluminium boat kit - GA

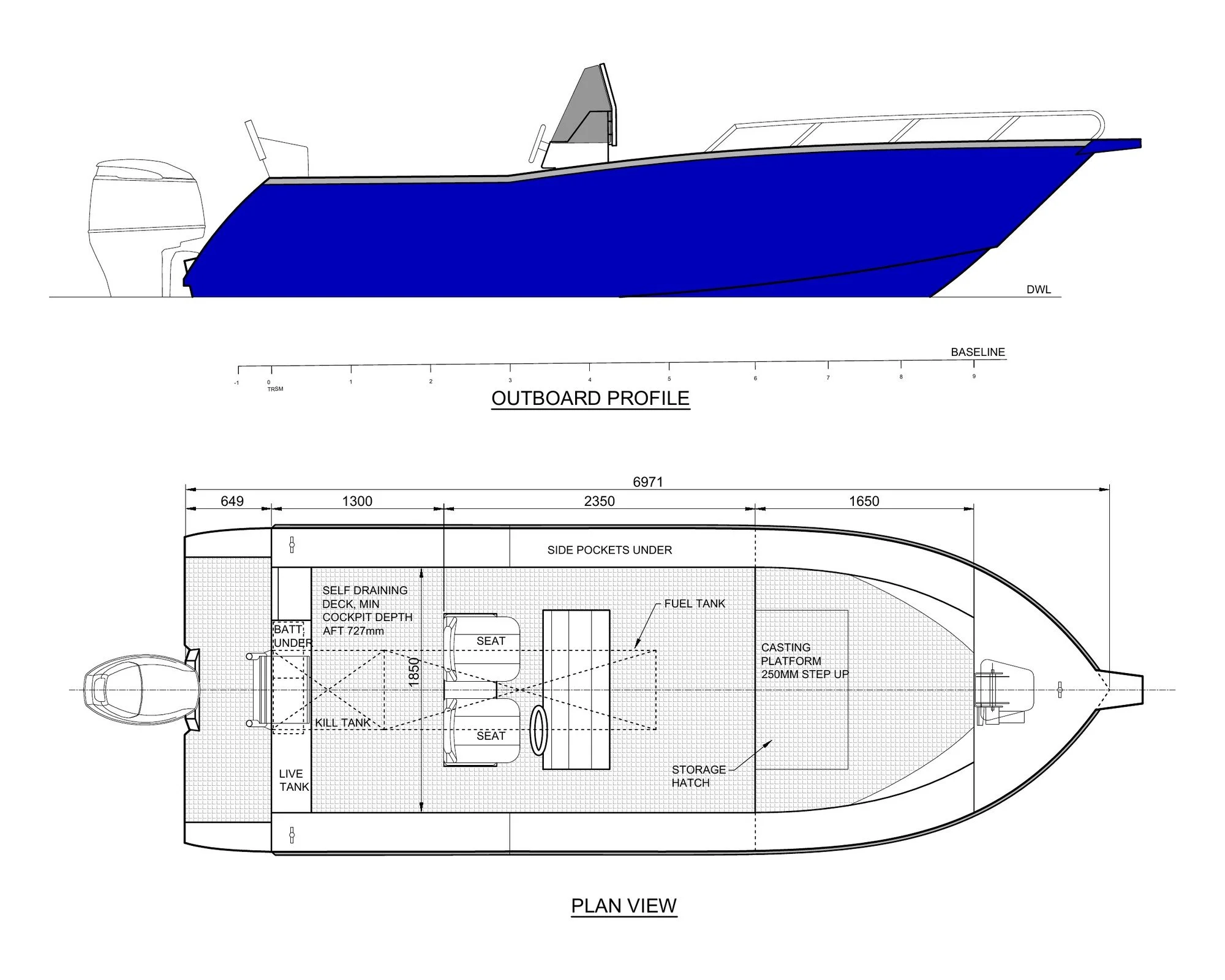

Sherwood Marine 700CC - 7m Centre Console aluminium boat kit - GA

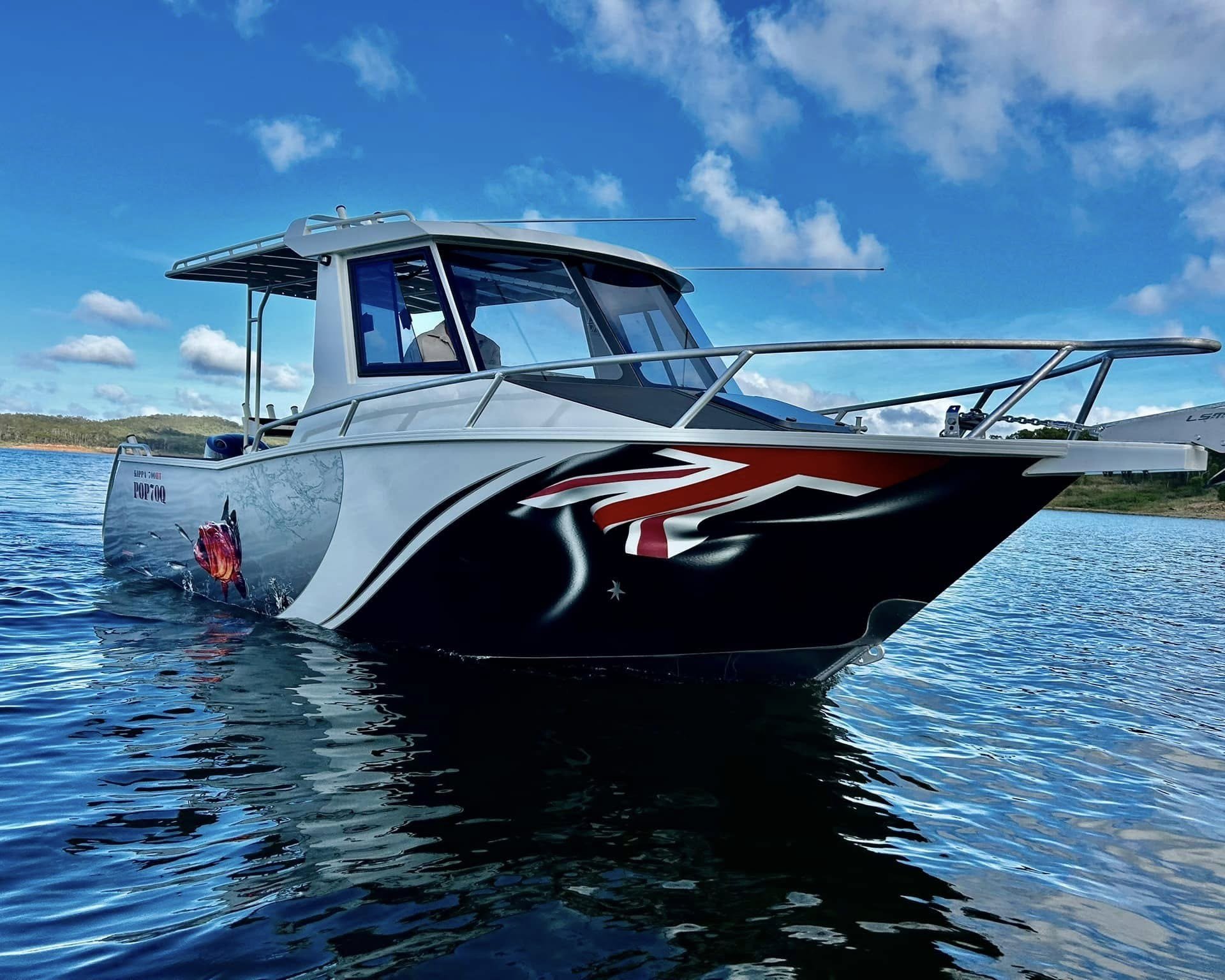

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - on the water, port bow quarter

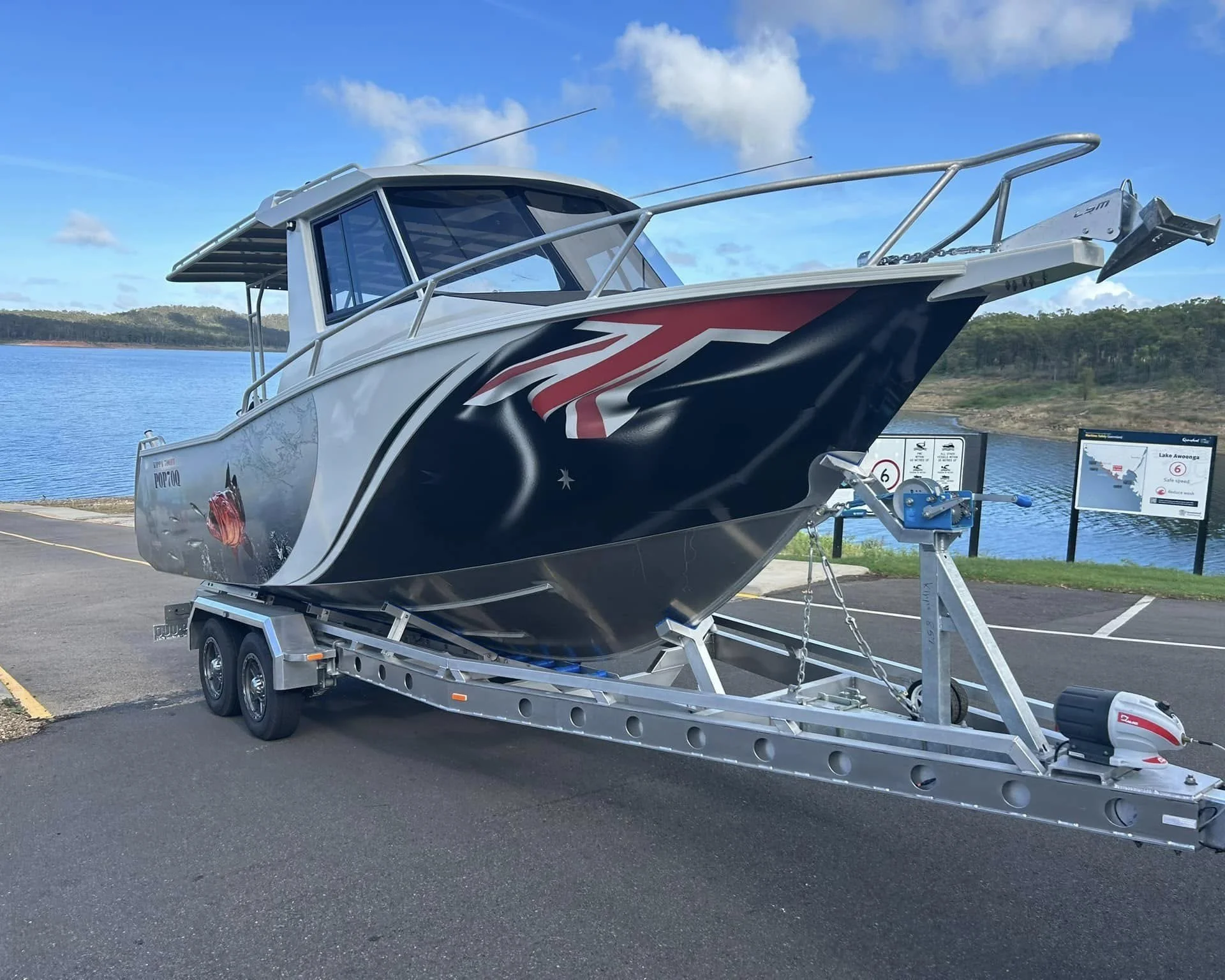

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - on the trailer, starboard profile

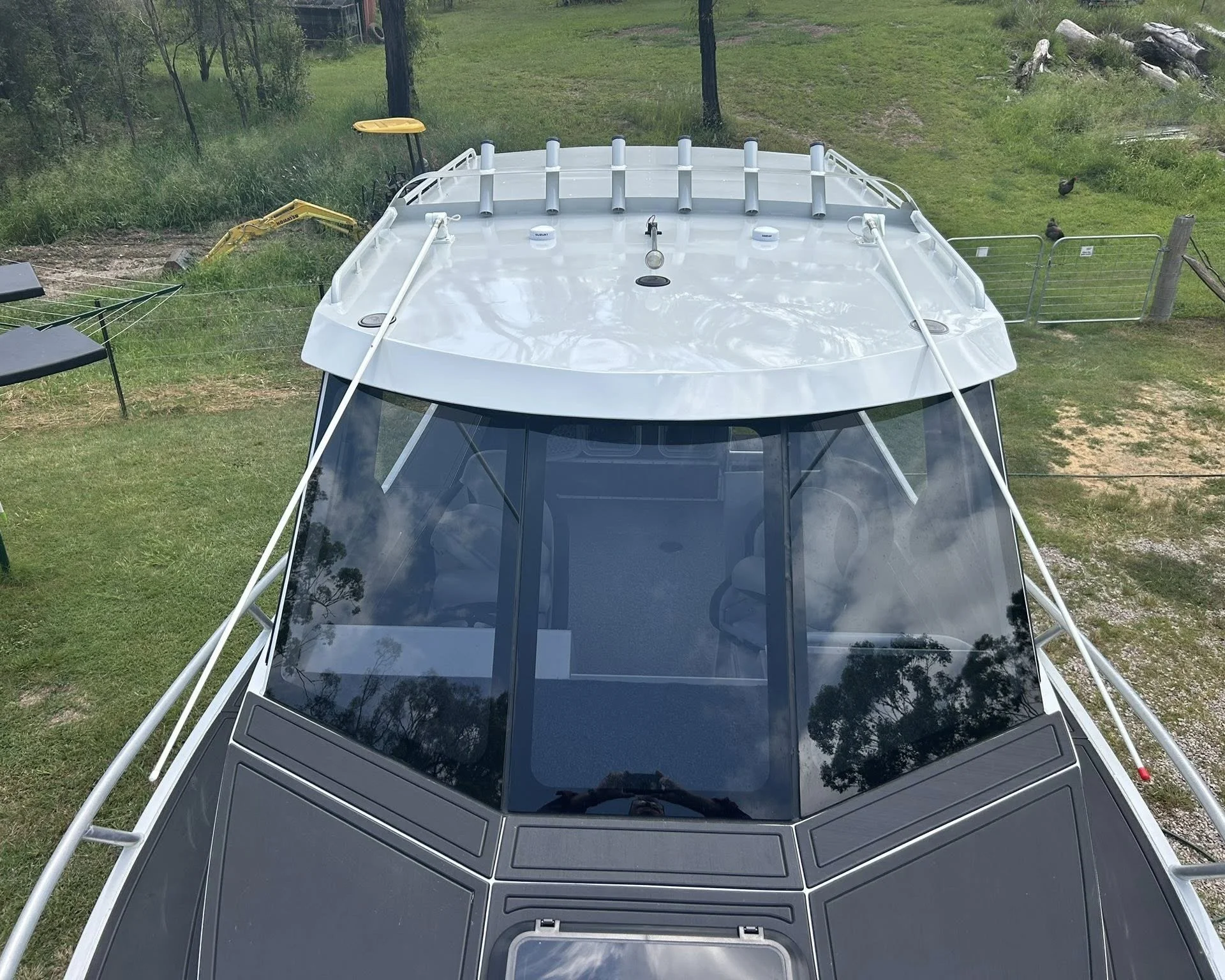

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - hardtop and cockpit from the foredeck

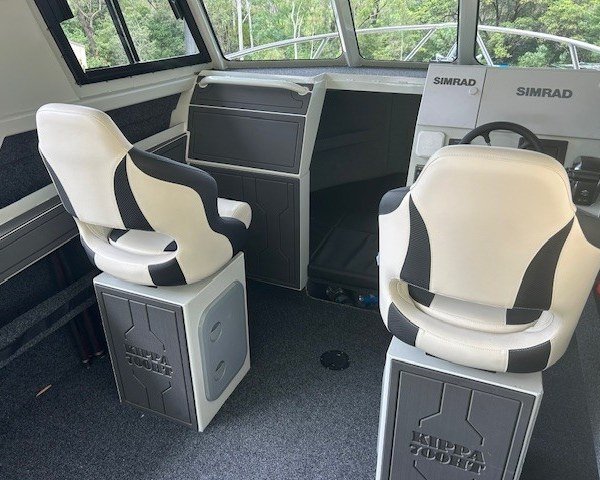

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - cockpit interior with helm seats

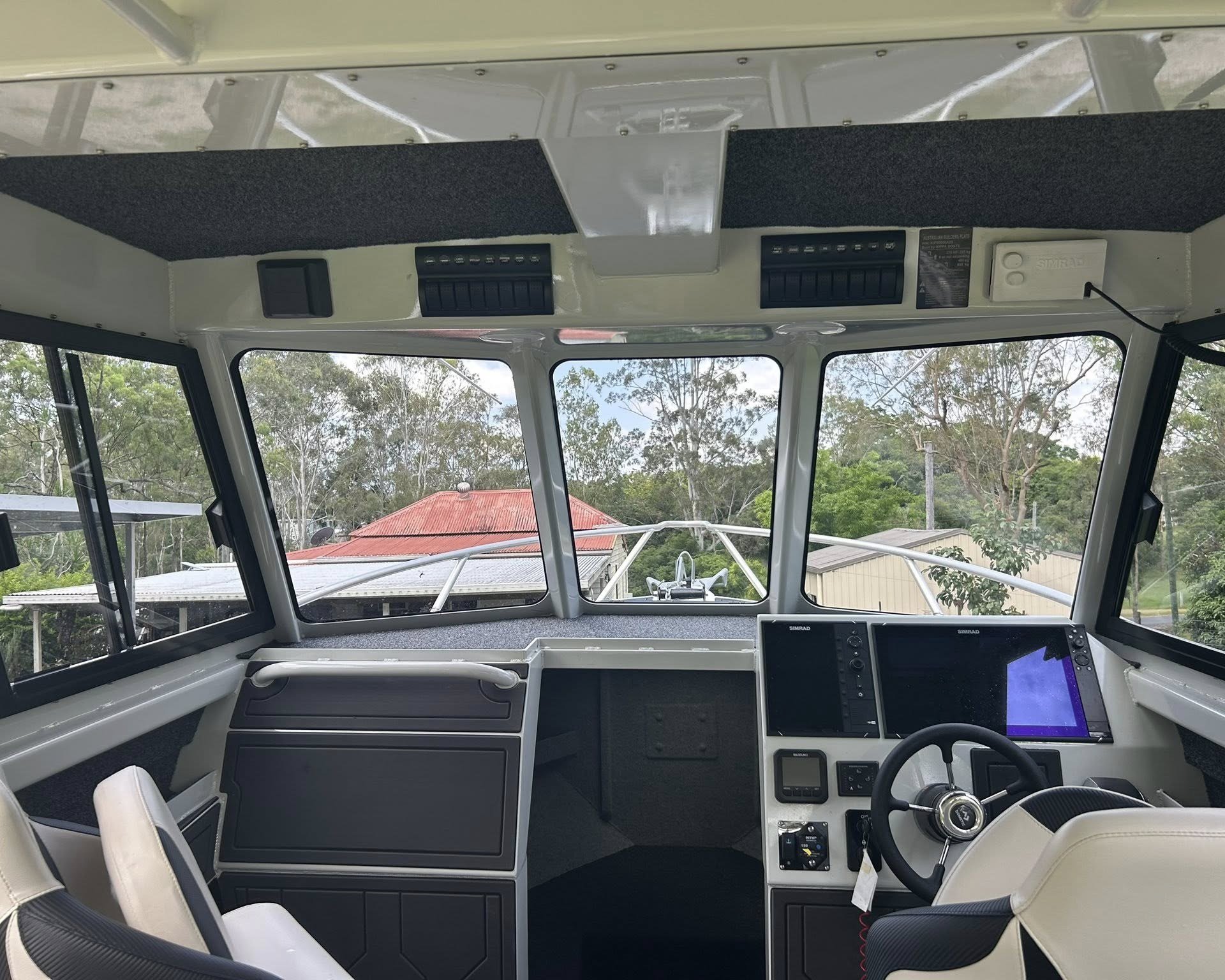

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - helm station with electronics

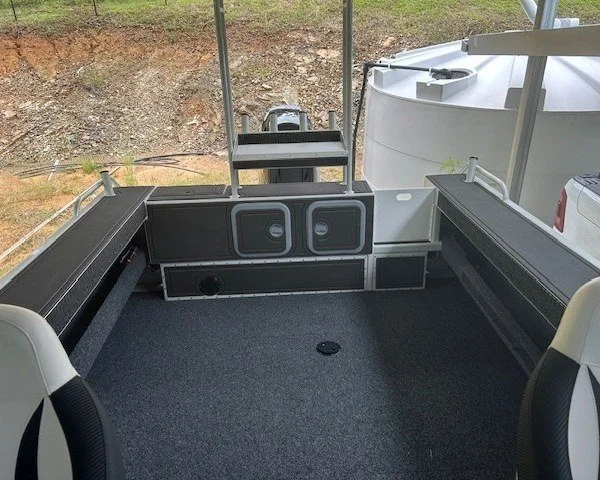

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - cockpit looking aft

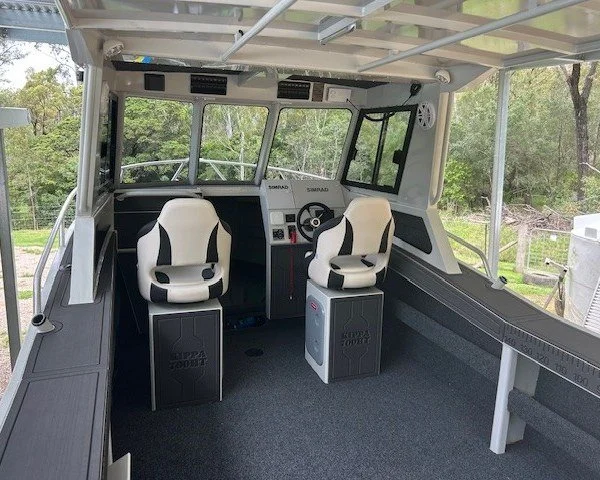

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - cabin interior looking forward

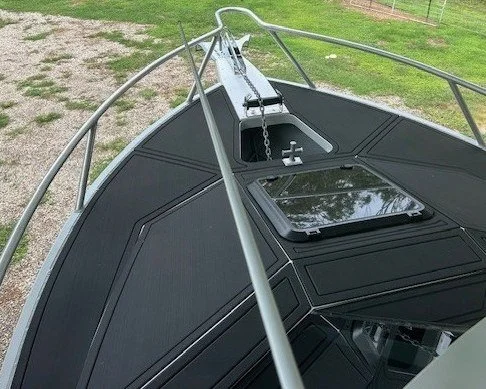

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - foredeck and anchor hatch

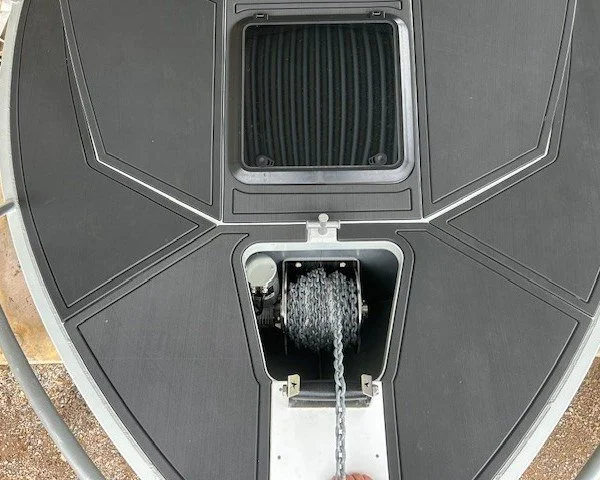

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - anchor well and winch

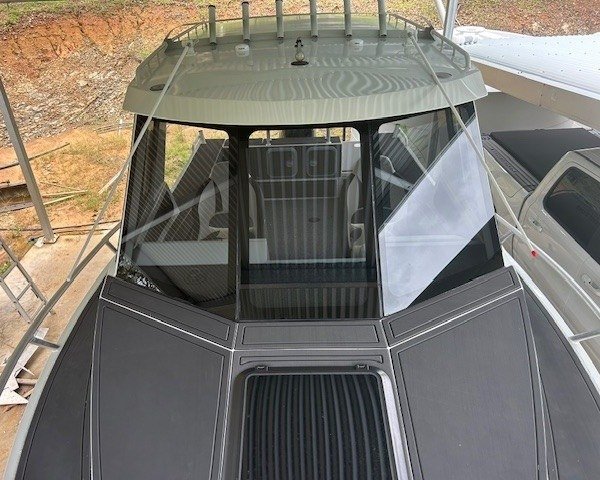

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - bow view showing the hardtop

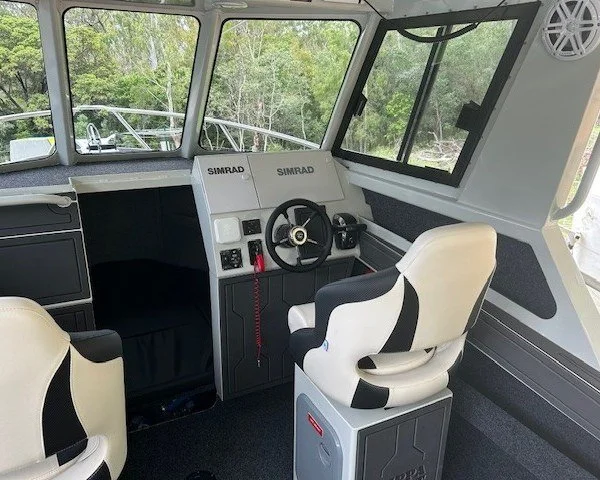

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - cabin interior and helm from port

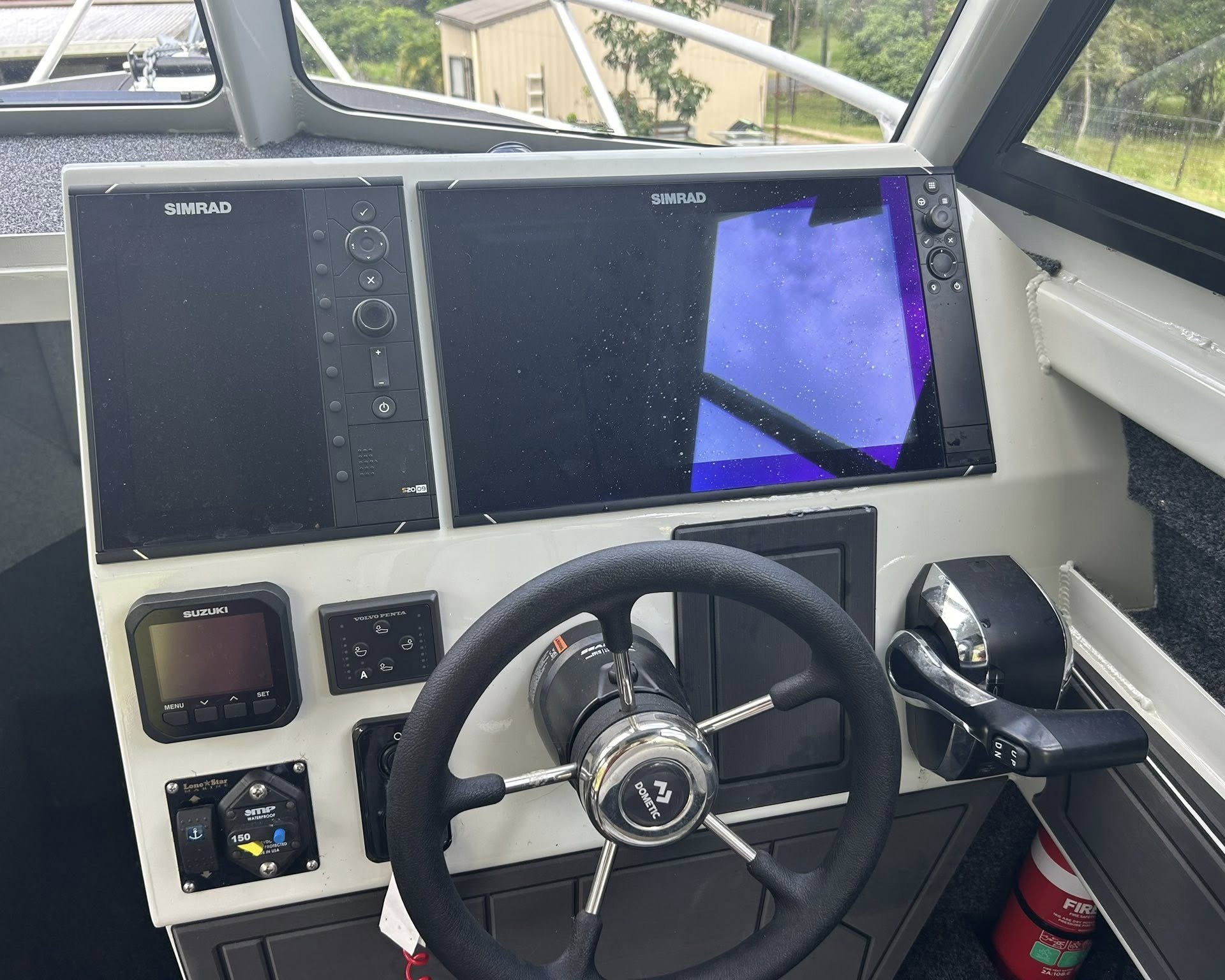

Sherwood Marine 700HT - 7m Hardtop aluminium boat kit - helm dash with wheel and electronics

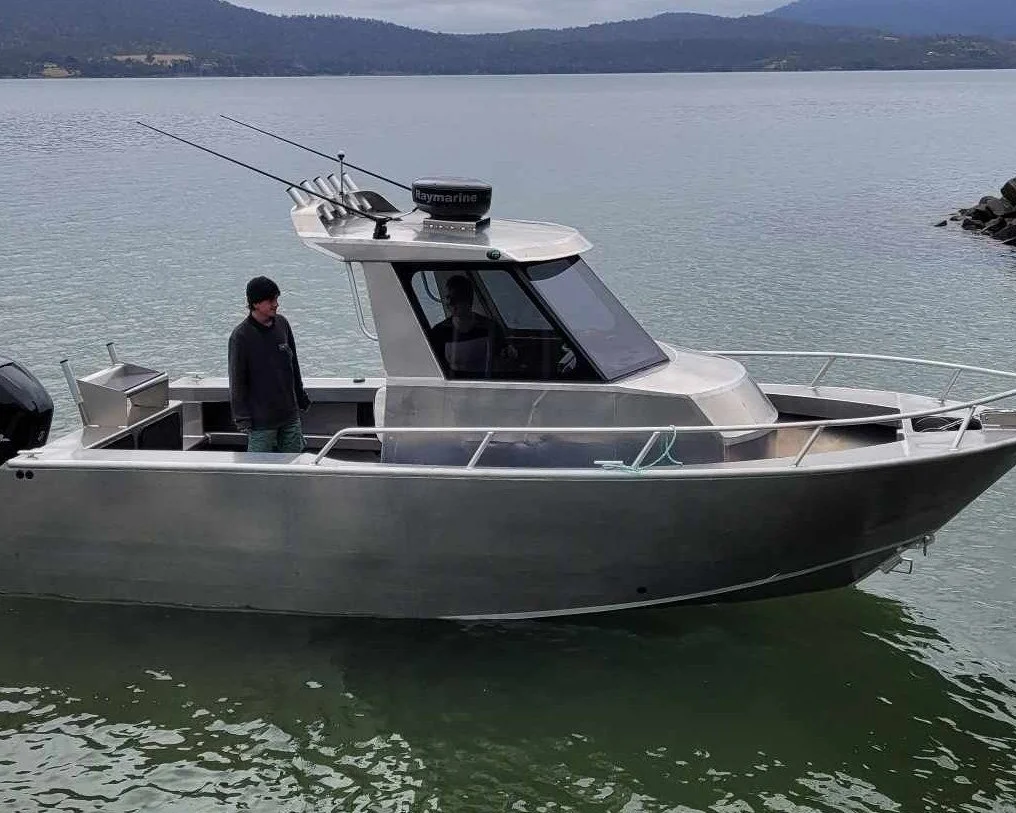

Sherwood Marine 680CCB - 6.8m Centre Cab aluminium boat kit - on the water, port profile

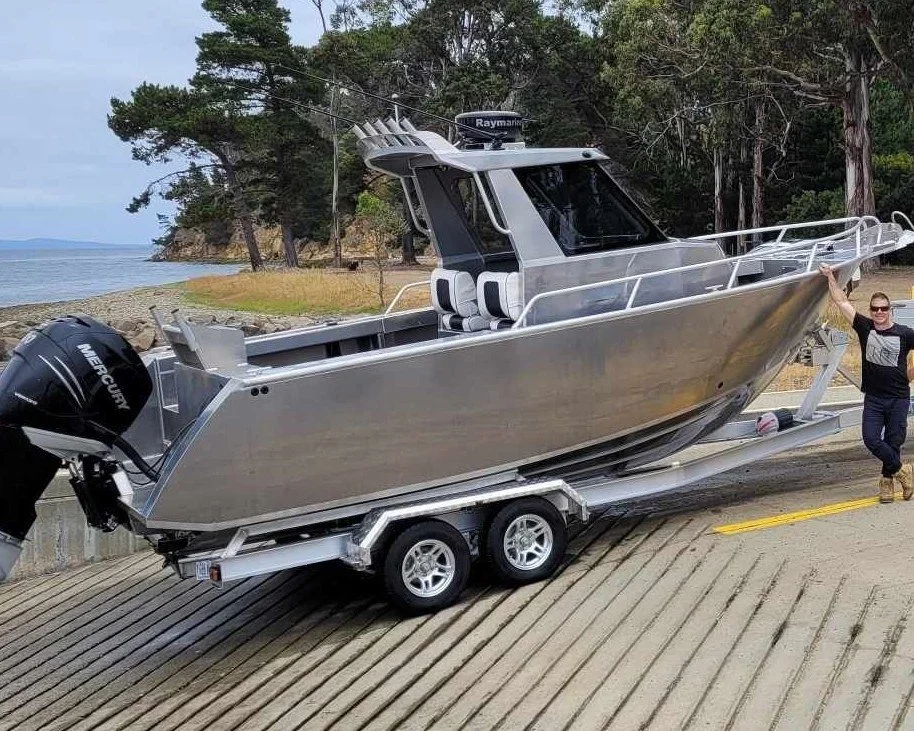

Sherwood Marine 680CCB - 6.8m Centre Cab aluminium boat kit - launching at the ramp, stern quarter

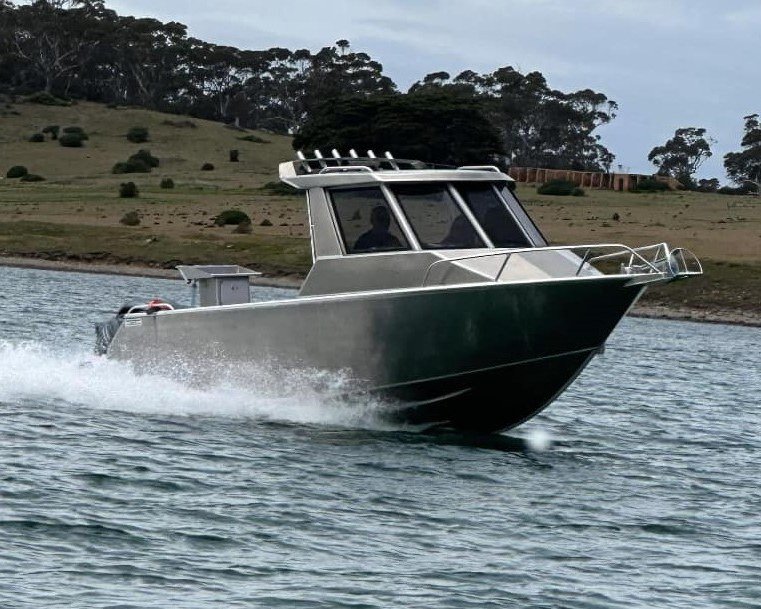

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - underway, starboard bow quarter

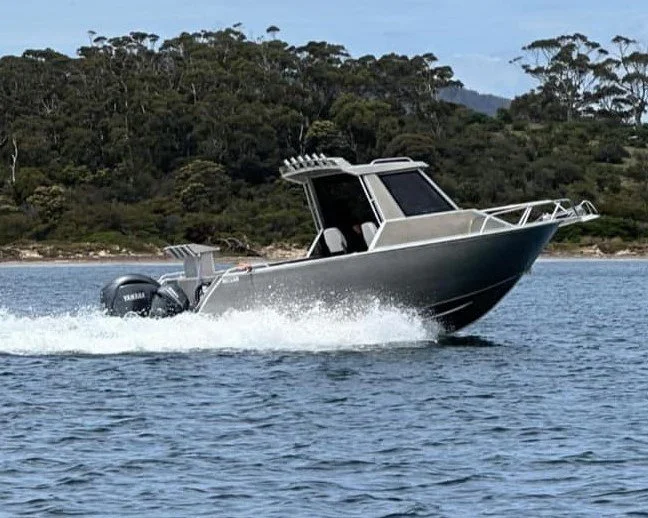

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - underway at speed, starboard profile
Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - on the water, profile

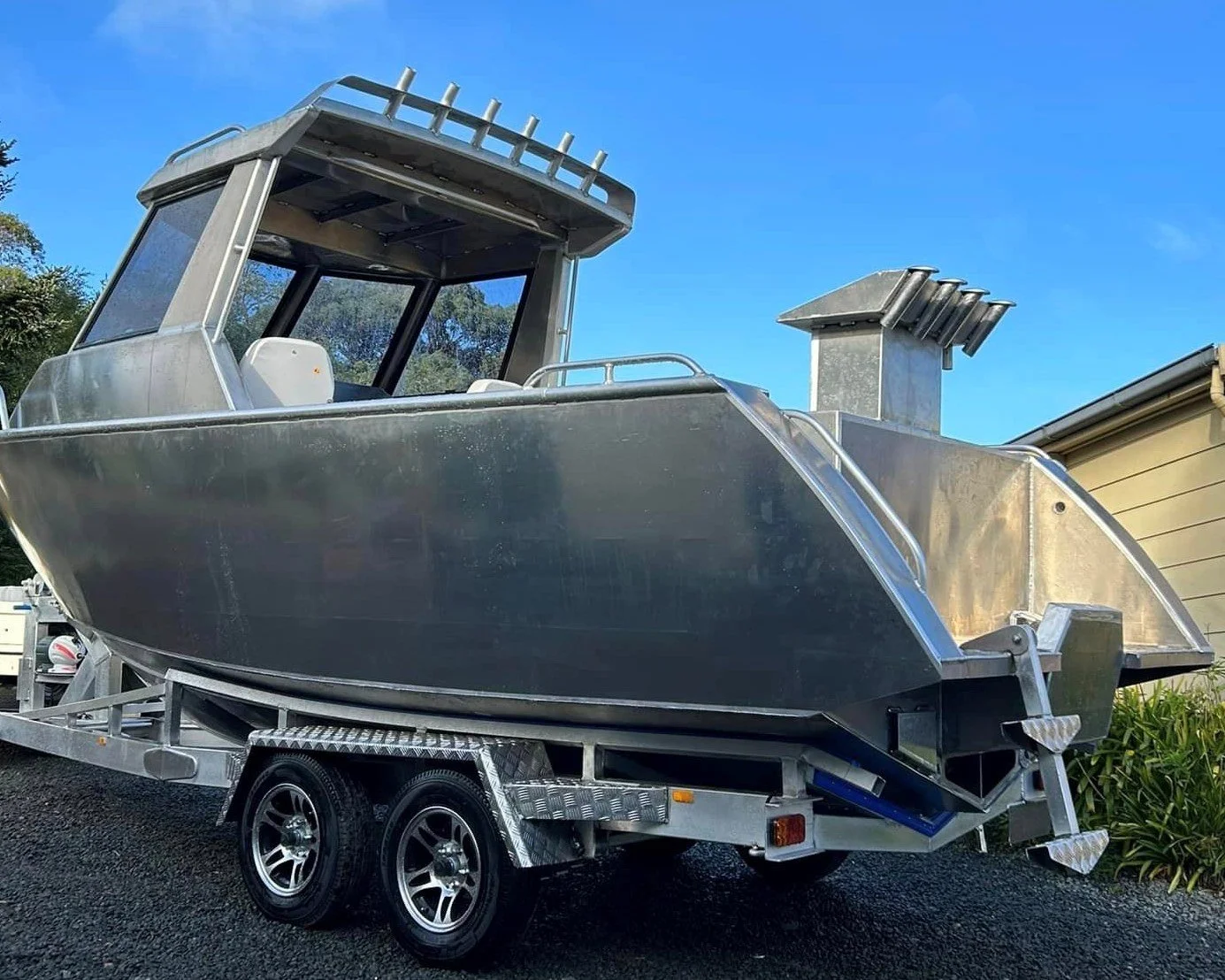

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - on the trailer, port profile

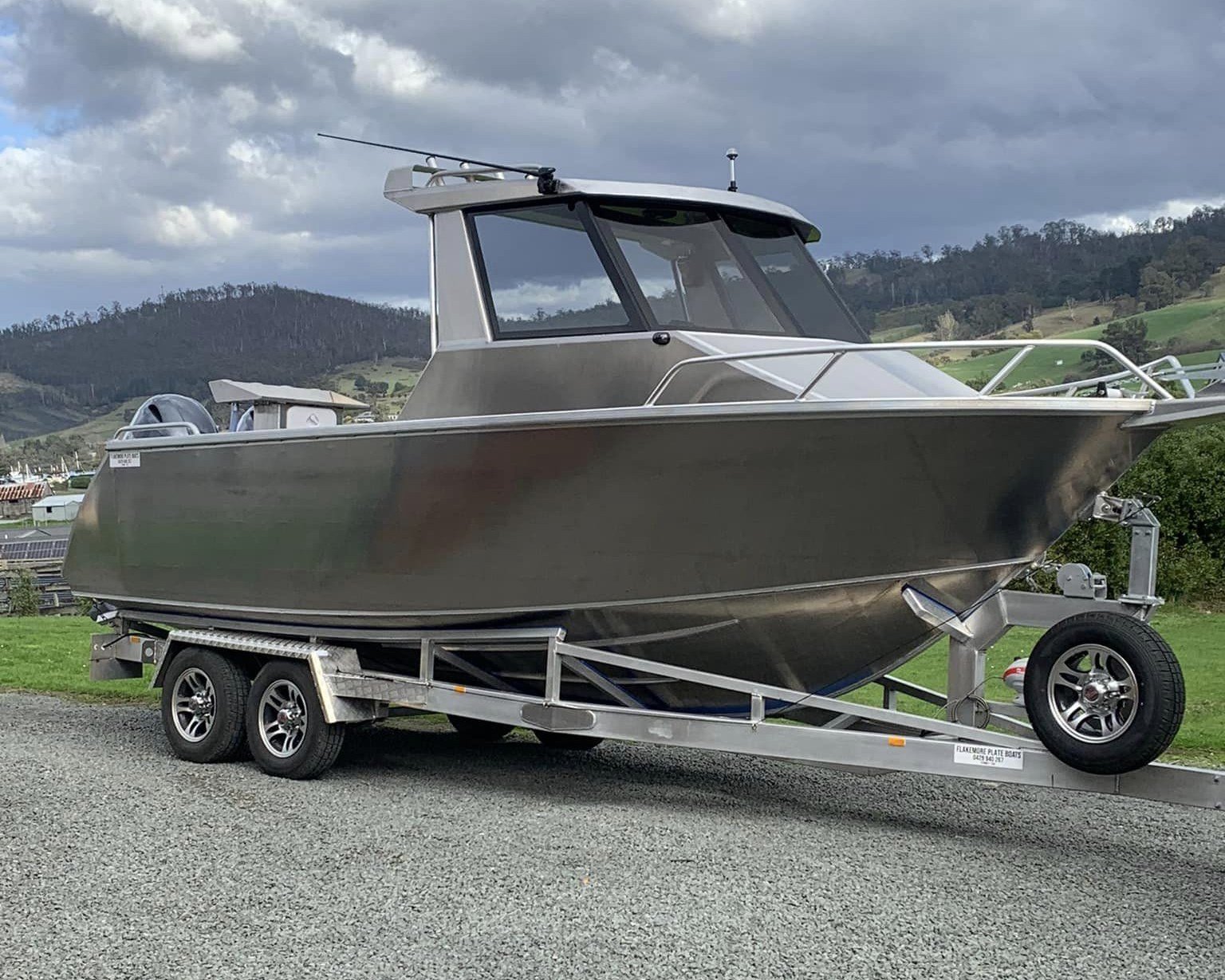

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - bare hull and hardtop on the trailer, starboard bow quarter

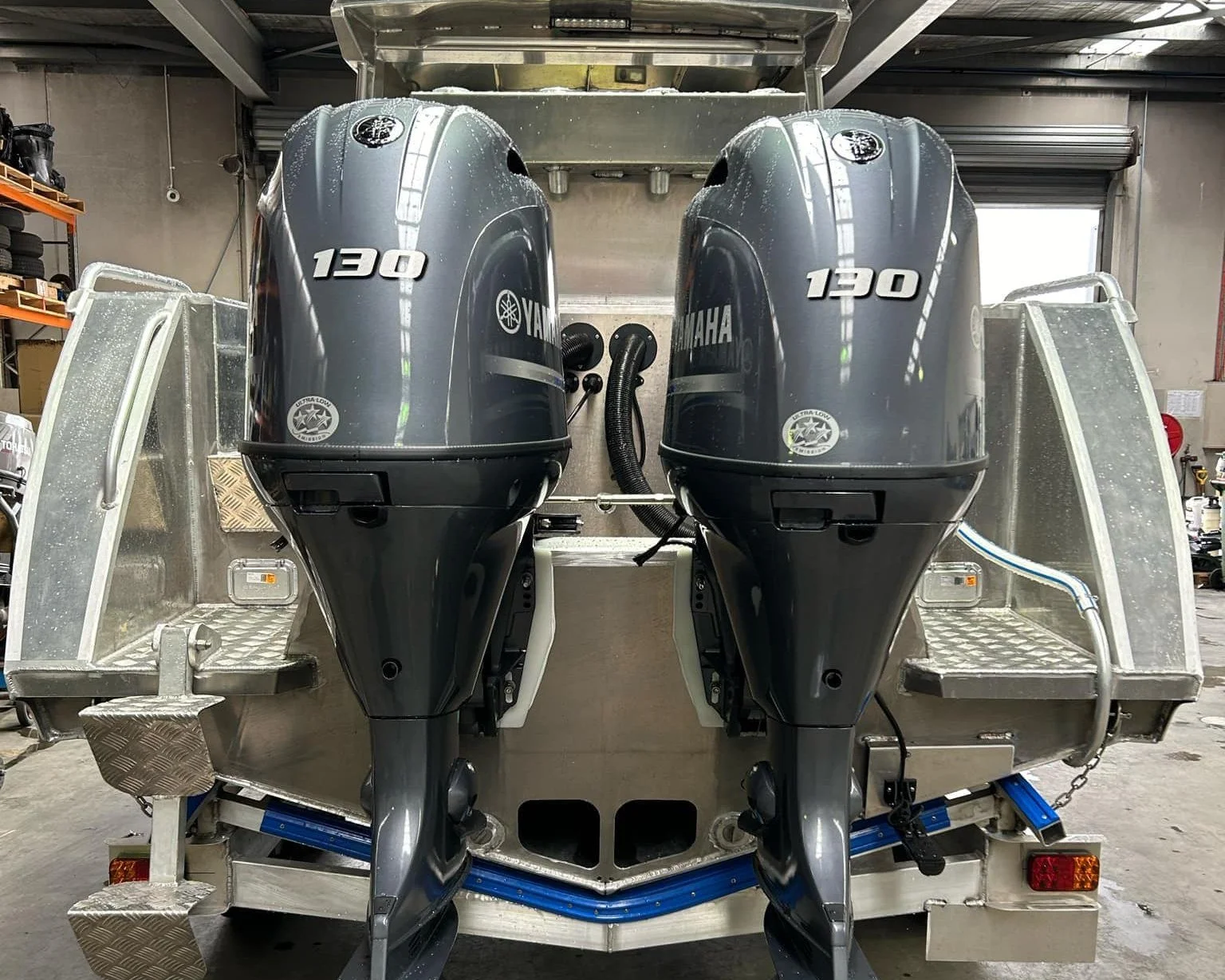

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - stern view with twin outboards

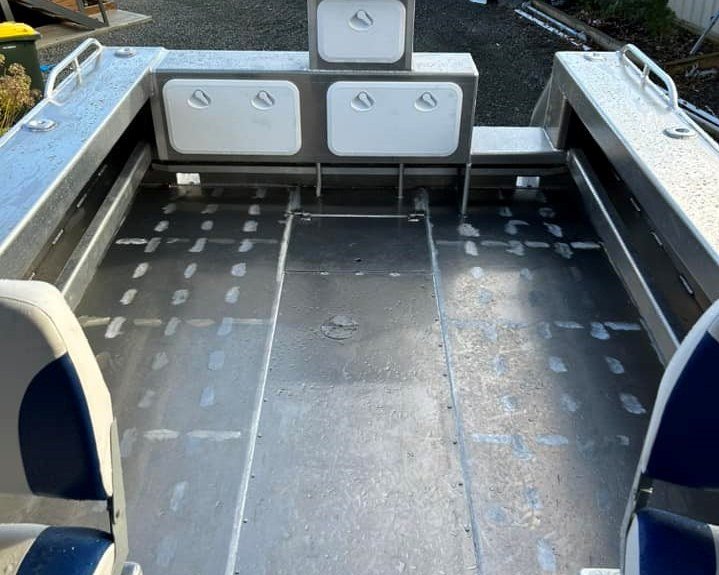

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - cockpit interior looking aft

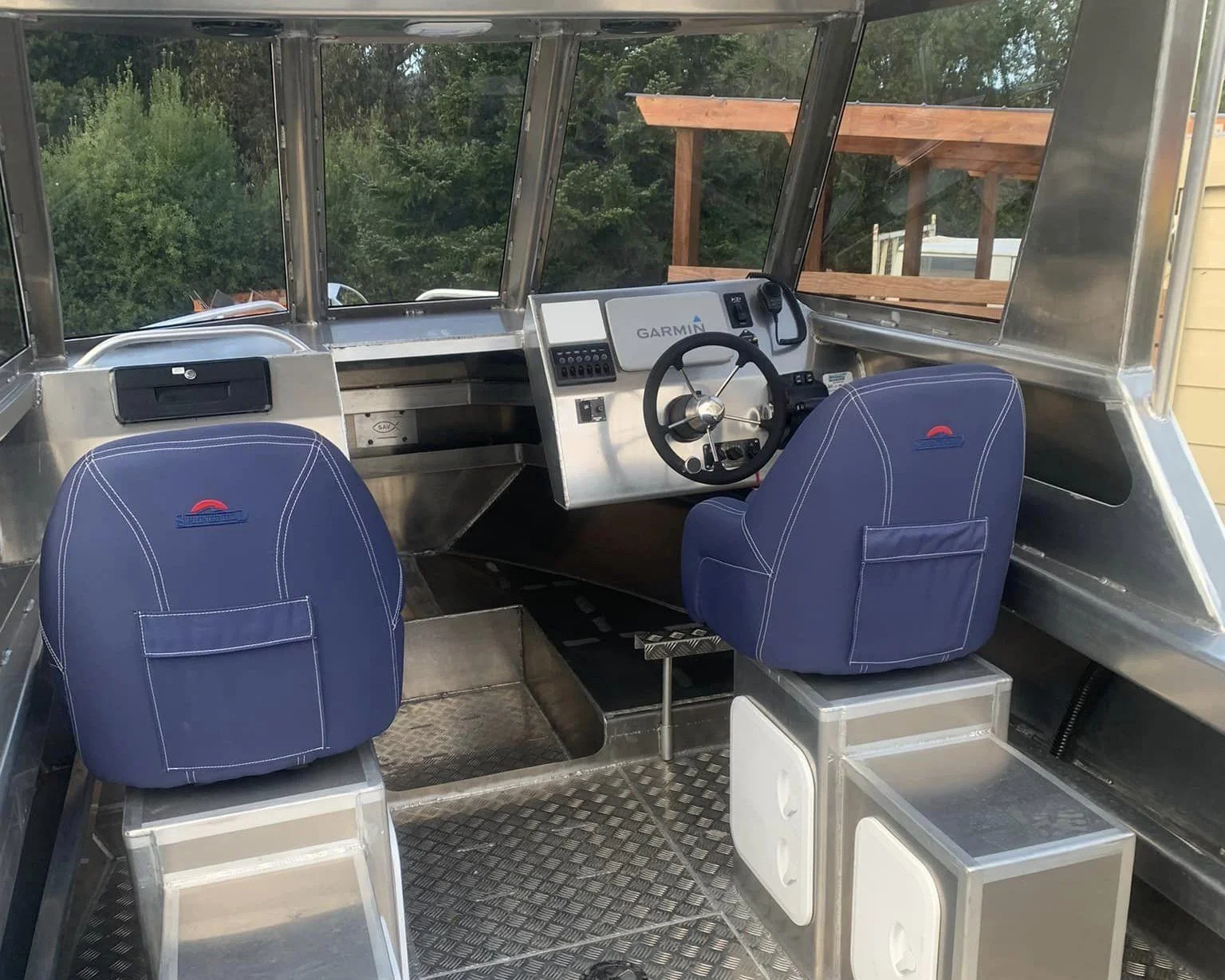

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - helm station and seating

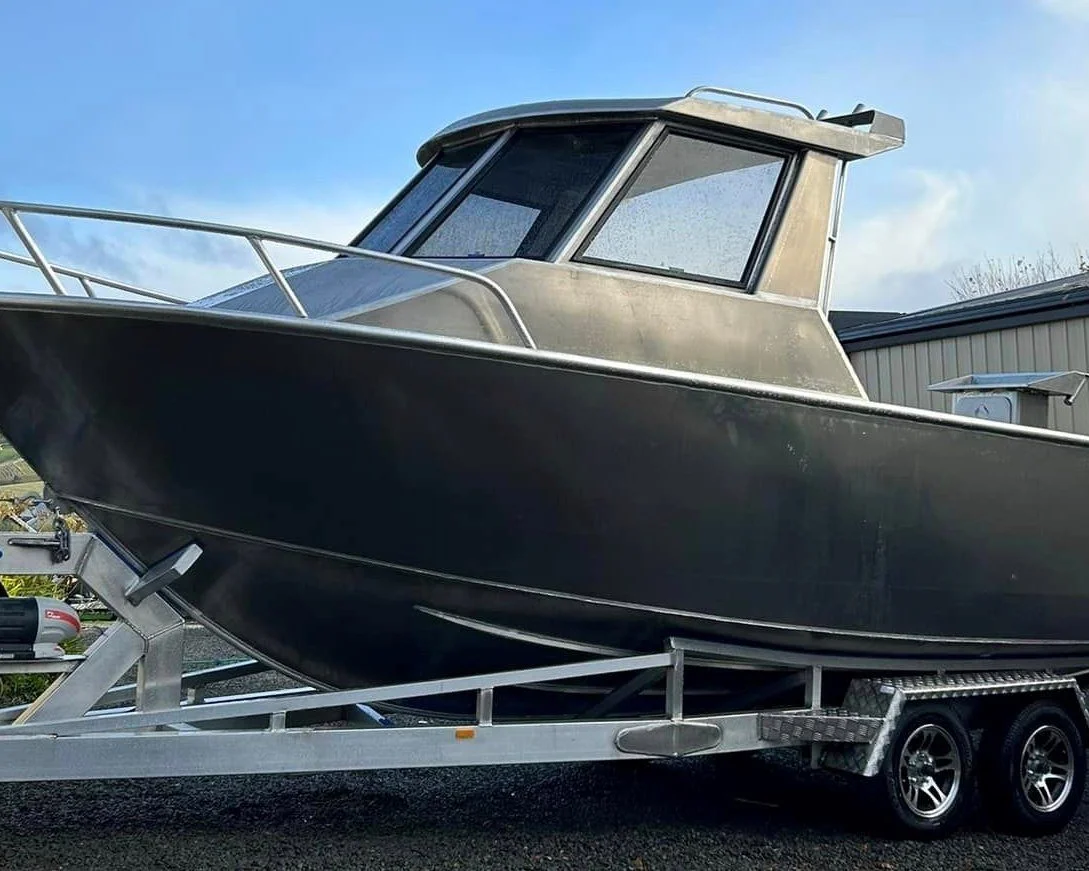

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - bare hull on the trailer, port bow quarter

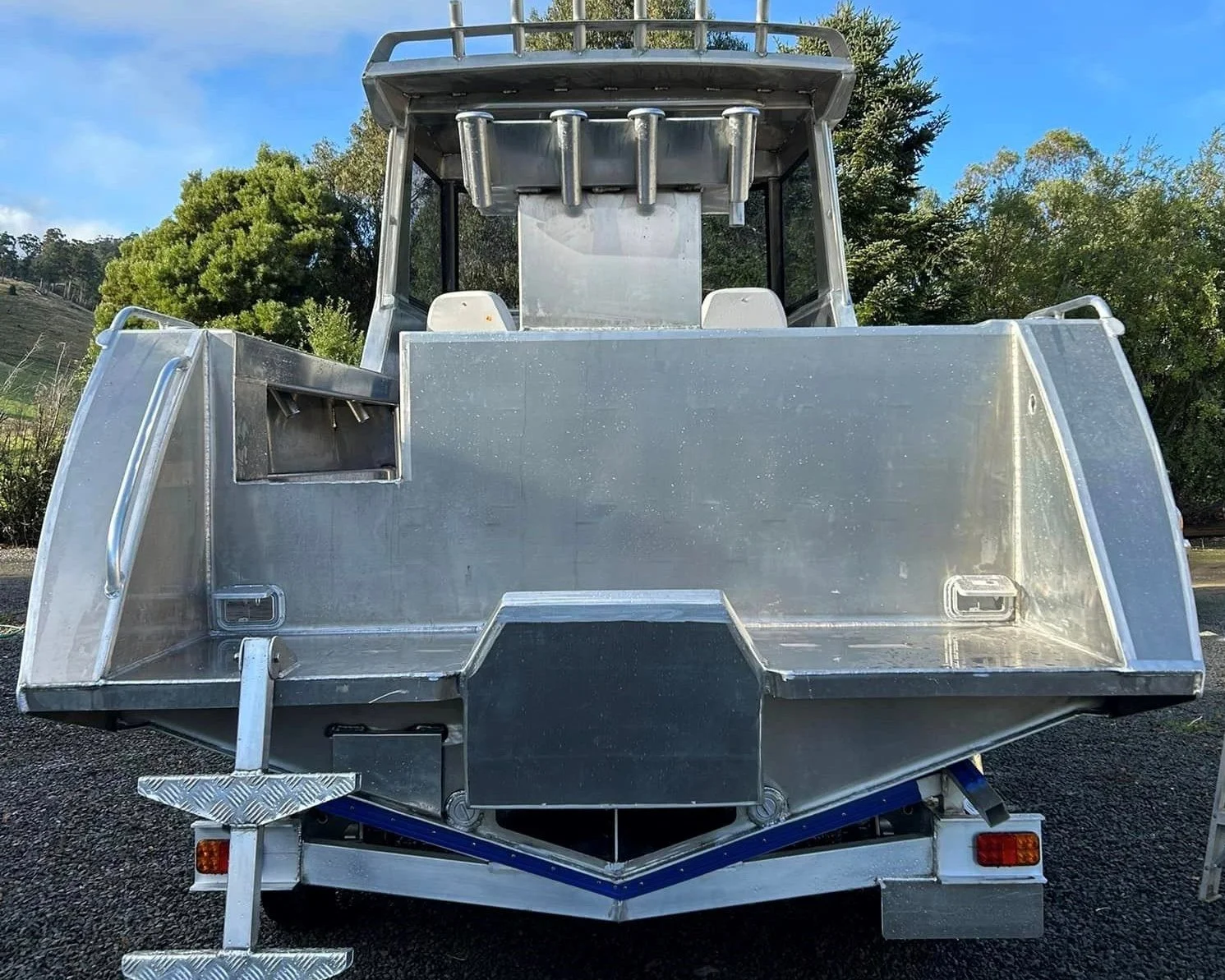

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - bare transom and boarding platform

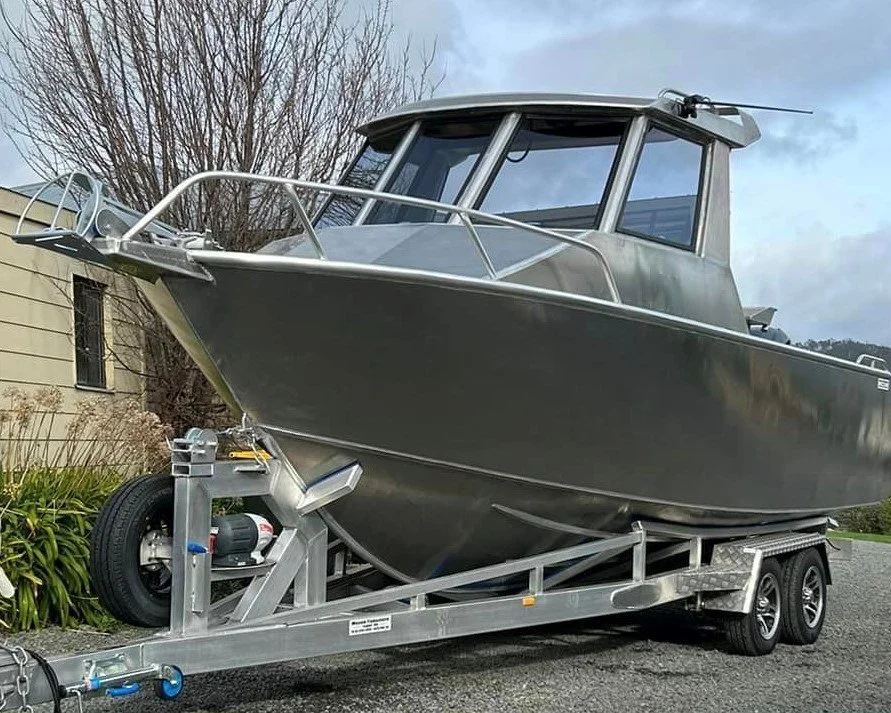

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - bare hull and hardtop, port bow quarter

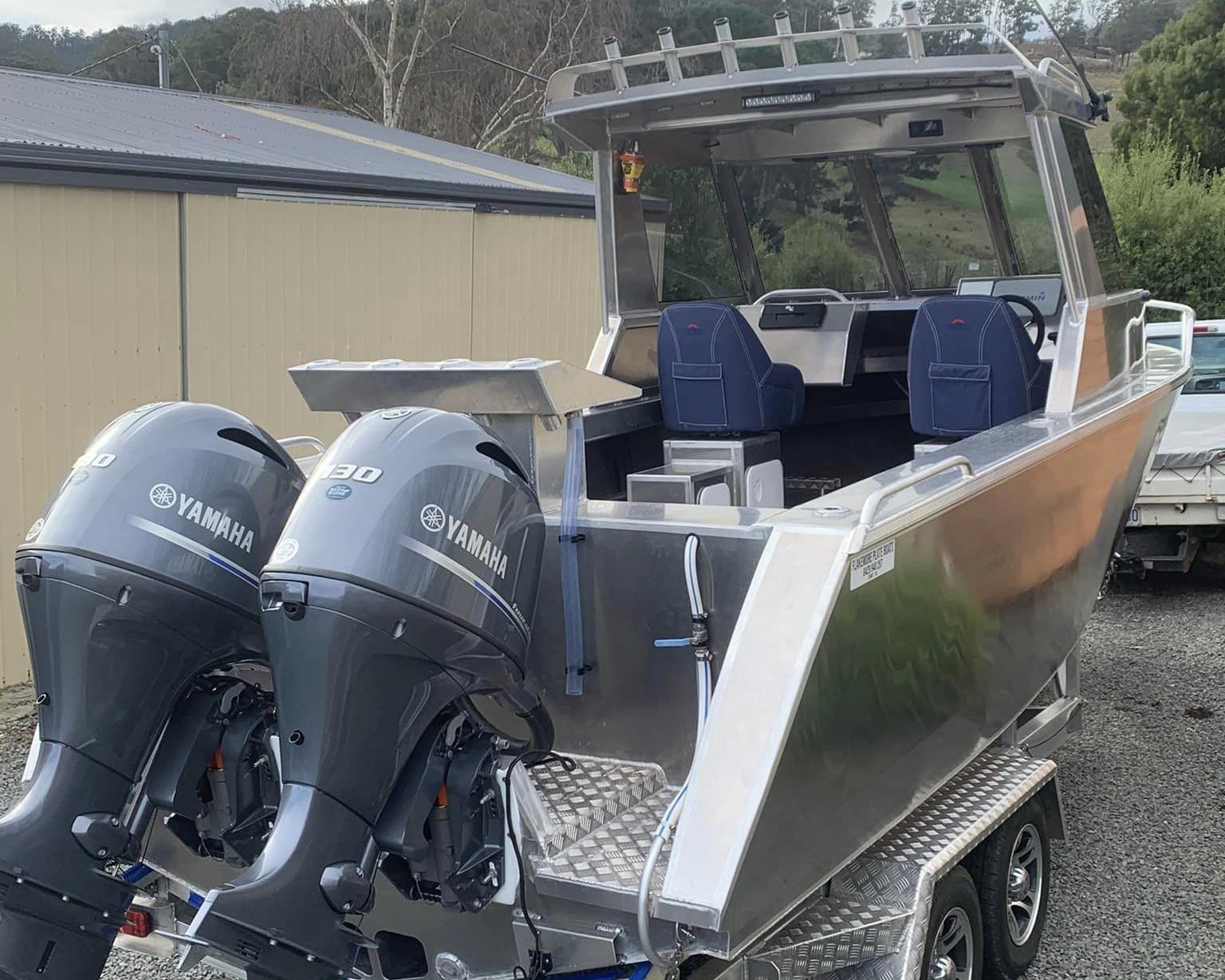

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - stern quarter with twin outboards

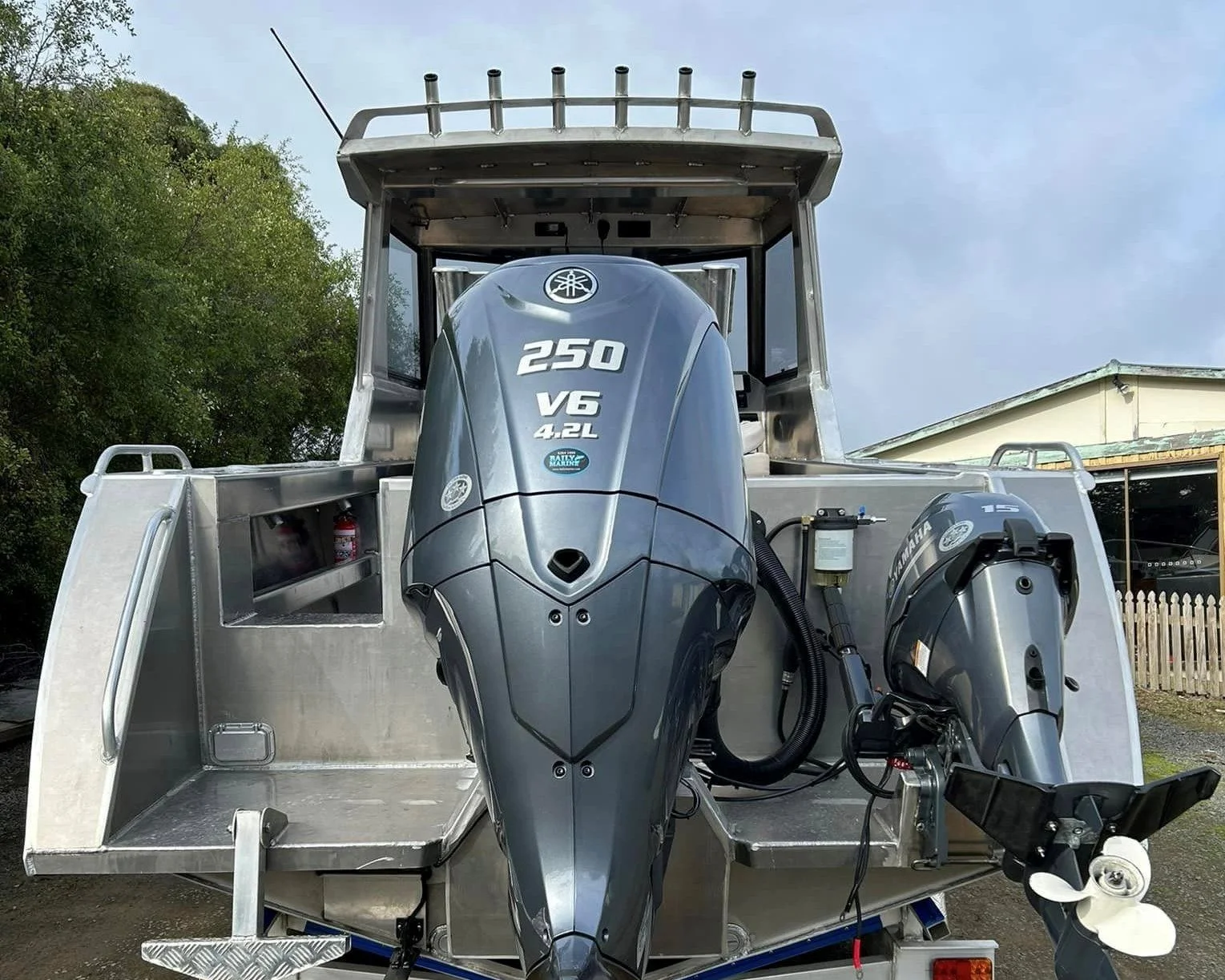

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - transom with aux motor

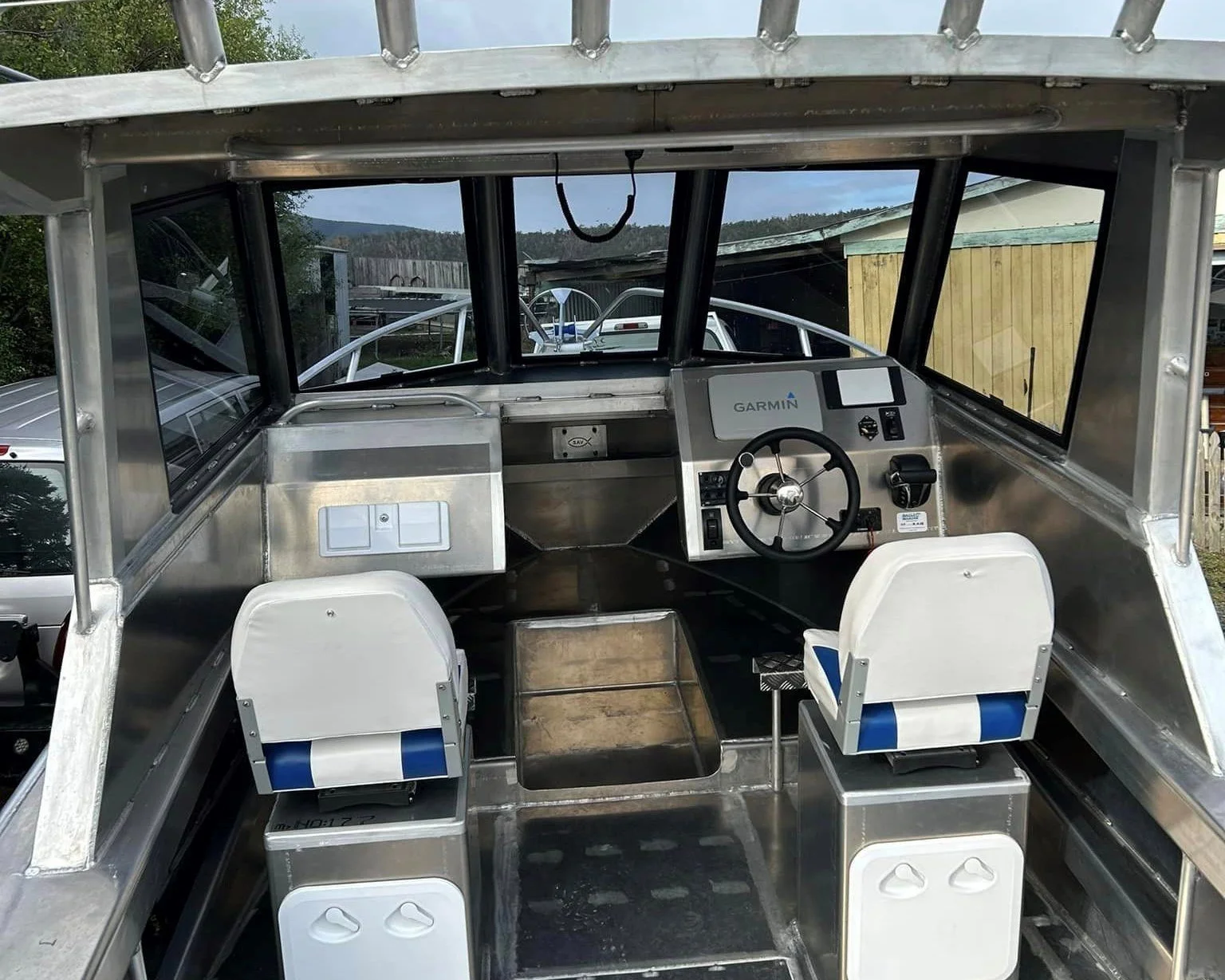

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - cabin interior with helm seats

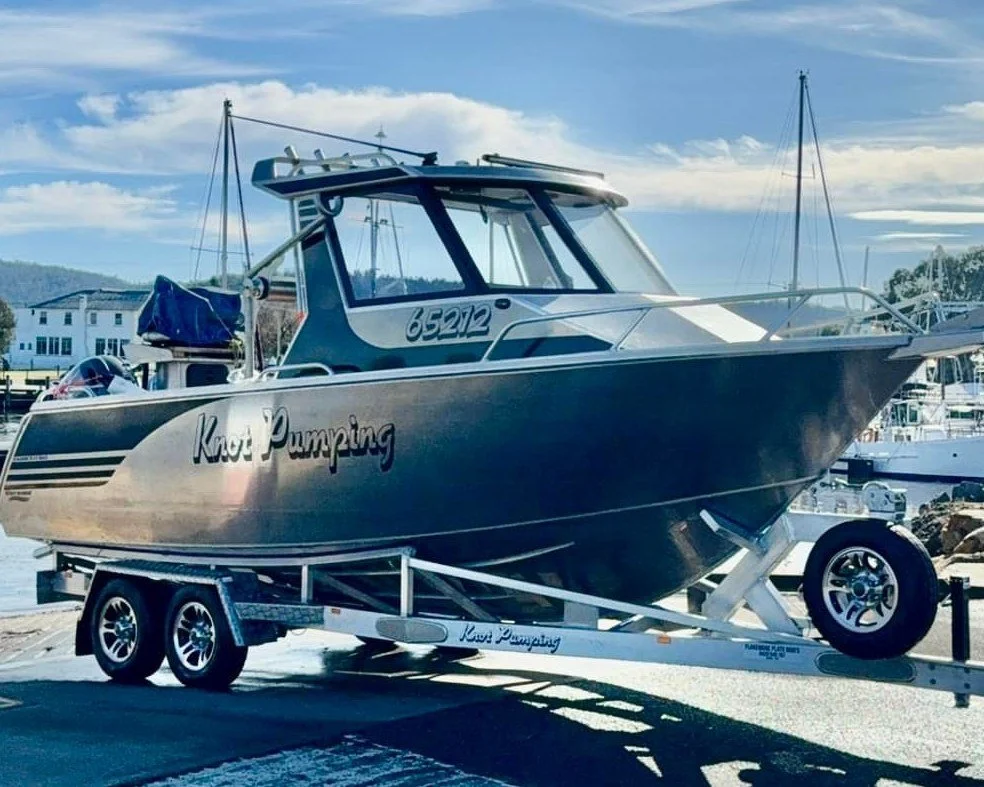

Sherwood Marine 680HT - 6.8m Hardtop aluminium boat kit - on the trailer, starboard bow quarter
