Projects

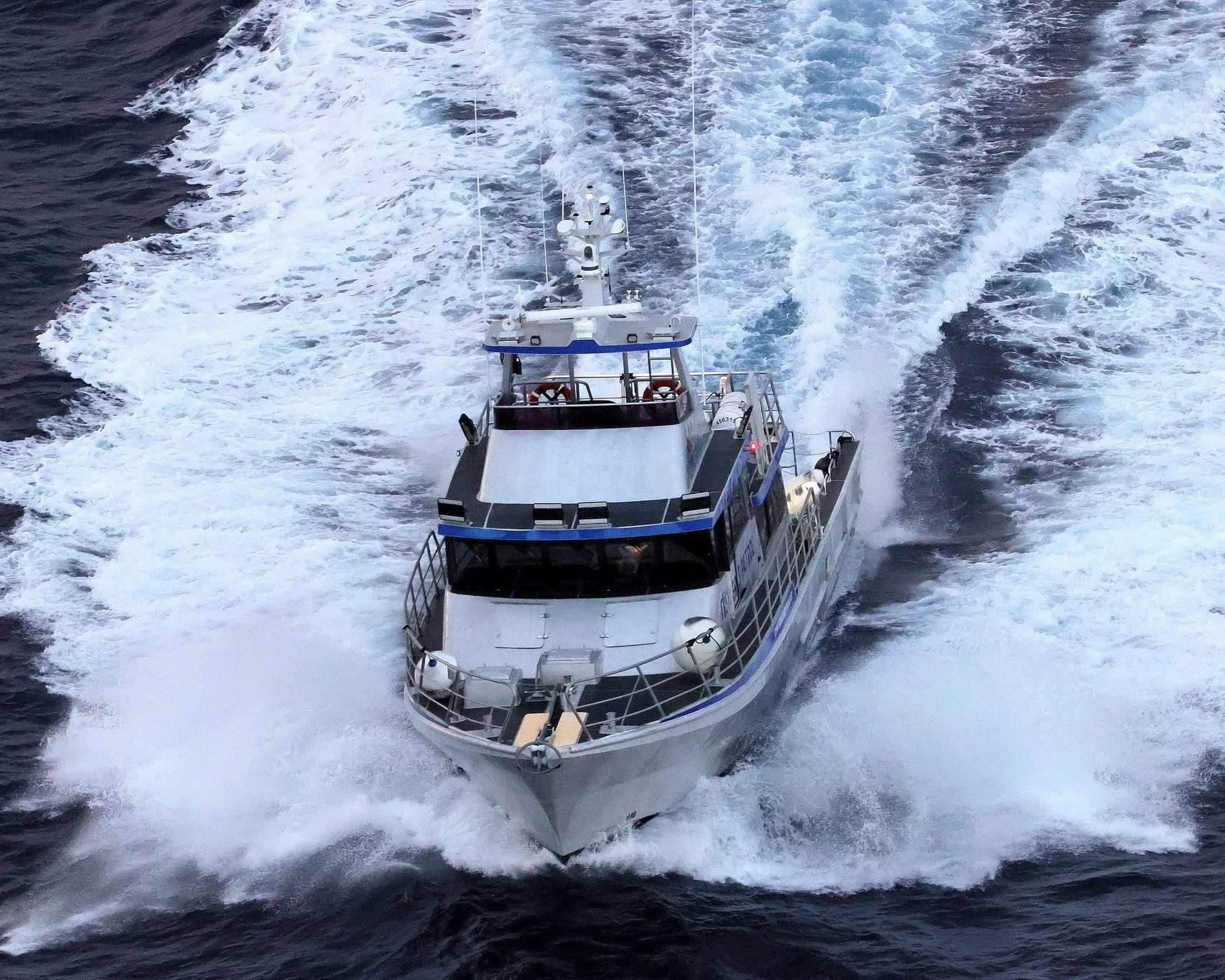

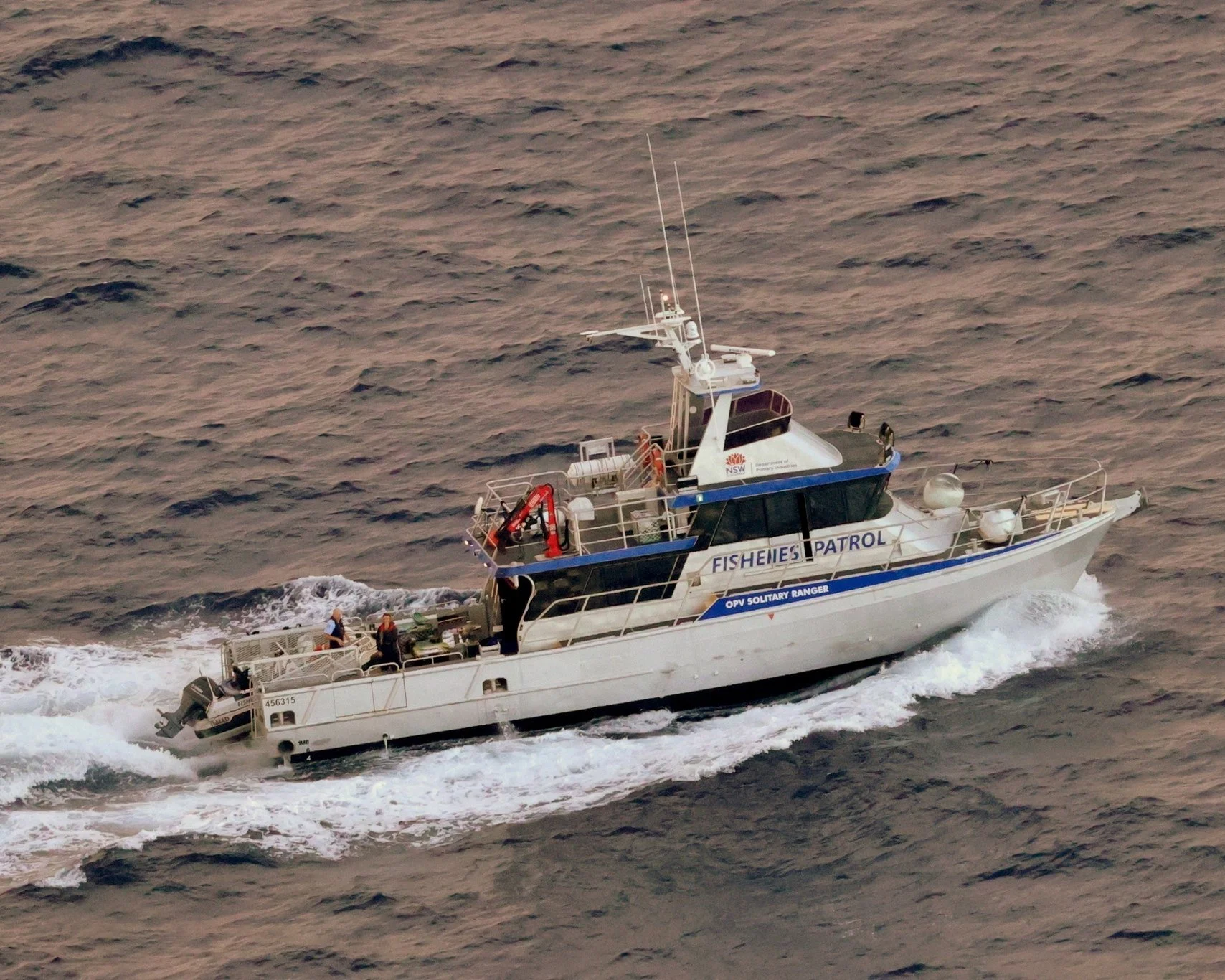

20m Fisheries Patrol Vessel – Full Design:

Length:                 19.99m

Beam:                   5.50m

Draft:                    1.36m

Crew:                    2 + 6 Special Personnel

Power:                 2 x Caterpillar C18, 747kW

Speed:                  28kn Maximum

Range:                  500nm @ 20kn + margin

Survey:                 NSCV 2B

Added superstructure tier.

Conversion of open sundeck area into enclosed sky-lounge and flybridge. Detailed structural design and CNC parts, weights, and revised stability book.

Digital Templates for Hull Glazing – Shipset

Optical laser scan of finished (faired) vessel hull openings. Provide shipset of digital template drawings for manufacture of window glasses.

Dynamic Stability Investigation

The vessel was suffering sudden and uncontrollable broaches in relatively benign sea conditions. The unpredictable onset of the problem made the vessel virtually unusable. After doing basic static stability checks we surveyed the boat out of water, and determined rudder ventilation to be the main cause. Simple fences were designed and added, which […]

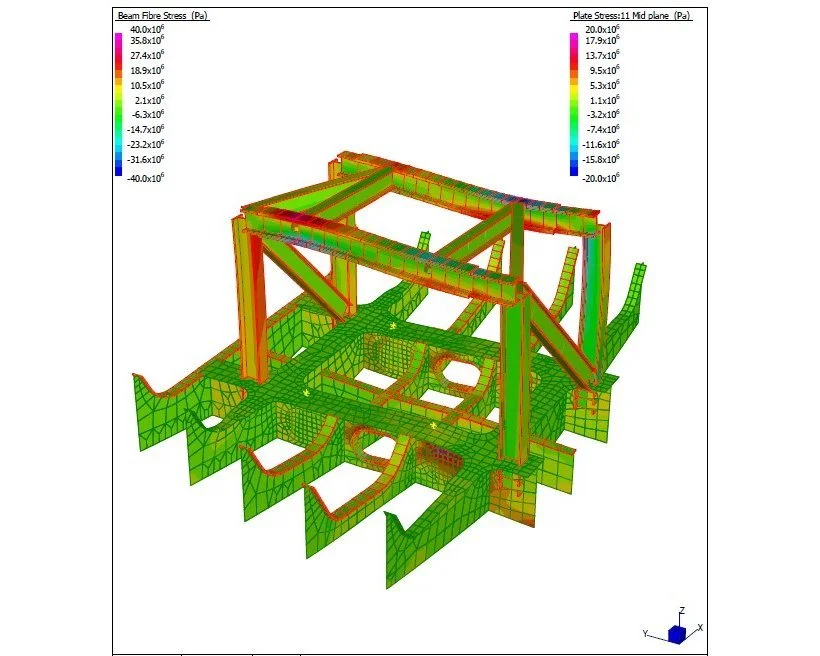

Preliminary structural design for dual (“stacked”) gyro-stabiliser installation. Aluminium hull vessel with steel subframe for upper stabiliser. Finite Element Analysis for fatigue life assessment.

Design and construction of 2 x 5m RIB patrol / workboats. Level floatation (swamped) design with double chines for RIB like performance.

Length:                 5.00m

Beam:                   2.35m

Draft:                    0.40m

Crew:                    2 + 2

Power:                 70hp

Speed:                  27 knots

Survey:                 NSCV NS Scheme

Designs available up to class 2C

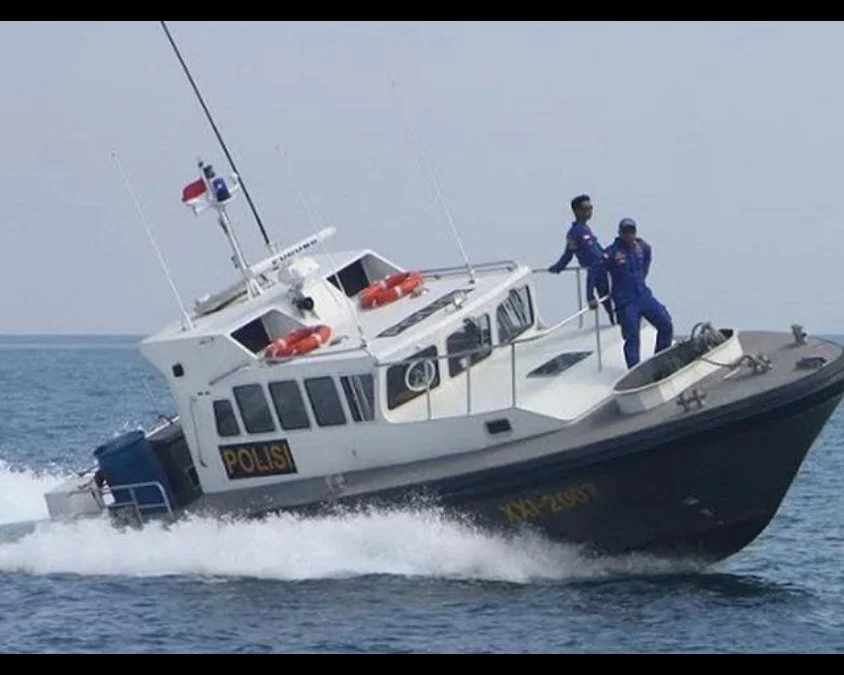

Naval Architecture for 11.5m police boats; build of 50 boats for Indonesia National Police.

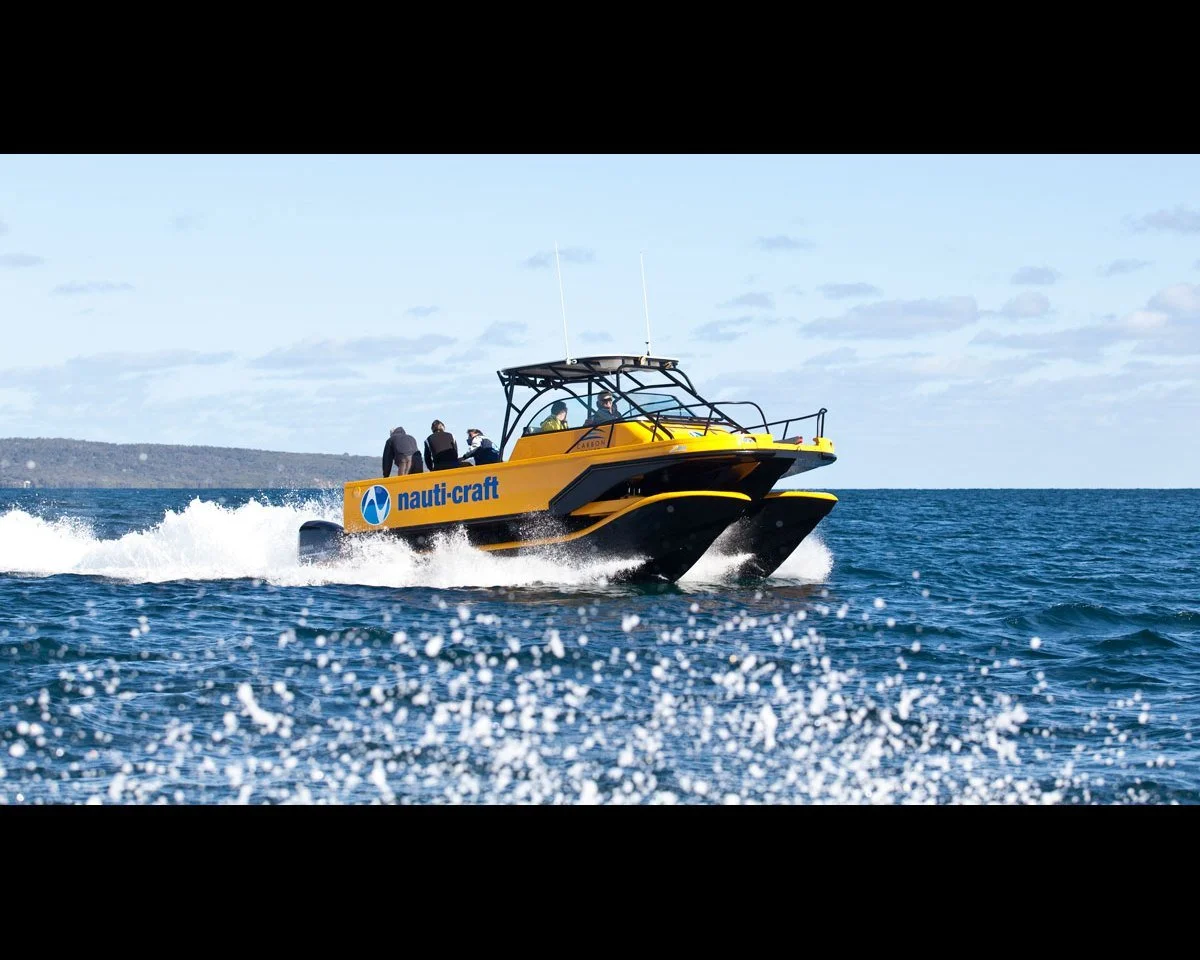

Design of catamaran hulls for demonstrator craft. General consultancy and advice on overall design aspects including powering, trim & stability, design loads, and survey.

For video please go to : www.nauti-craft.com

Vessel weight survey for motor yacht conversion project. Digitise lines, inclining experiment and new stability book.

Transportation advice for delivery of project linepipe via tug-barges and PSVs.
